36757-0147: DescriptionPin & Socket Connectors MLX 15CKT ASY WITH SKT TERM GLOW WIRE; CategoryThe connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

36757-0147 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36757-0147	-	-	View	Buy Now

36757-0147 Overview

Pin & Socket Connectors MLX 15CKT ASY WITH SKT TERM GLOW WIRE

36757-0147 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pin & Socket Connectors
RoHS	Details
Product	Header Assemblies
Number of Positions	15 Position
Number of Rows	5 Row
Contact Gender	Socket (Female)
Pitch	6.35 mm
Termination Style	Through Hole
Mounting Style	-
Housing Material	Nylon
Contact Material	Phosphor Bronze
Contact Plating	Tin
Voltage Rating	600 V
Current Rating	13.5 A, 20 A
Packaging	Bulk
Contact Type	-
Mounting Angle	Vertical
Flammability Rating	UL 94 V-2
Housing Gender	-
Factory Pack Quantity	320
Unit Weight	0.276901 oz

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0367570147

Active

MLX Power Connectors

6.35mm Pitch MLX Power Connector Header with Socket Terminal, Vertical, 15

Circuits, Nylon 6/6 94V-2, Tin (Sn) Plating, Natural, Lead-Free, Glow Wire Capable with

CTI of 325V

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification PSX-42002-0001-001 (PDF)

RoHS Certificate of Compliance (PDF)

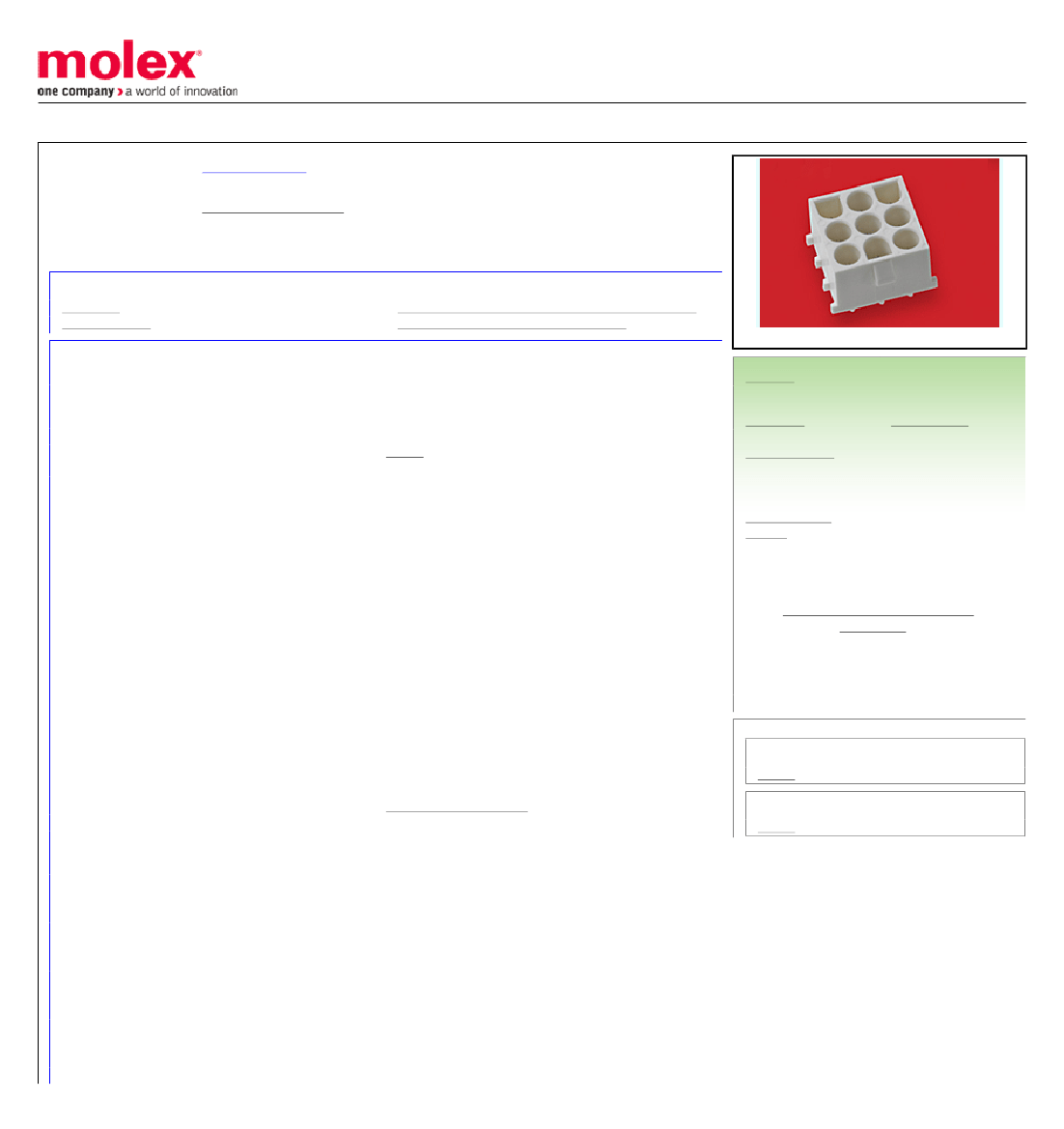

Series image - Reference only

LR19980

E29179

PCB Headers

36757

Power, Wire-to-Board

"""""""Glow Wire compatible with CTI of

325VThis Molex product is manufactured

from material that has the following ratings, tested

by independent agencies:. a) A Glow Wire Ignition

Temperature (GWIT) of at least 775 deg C per IEC

60695-2-13.. b) A Glow Wire Flammability Index

(GWFI) above 850 deg C per IEC 60695-2-12.and

hence complies with the requirements set out in the

International Standard IEC 60335-1 5th edition -

household and similar electrical appliances - safety,

section 30 Resistance to heat and fire. The

customers using this product must determine its

suitability for use in their particular application through

testing or other acceptable means as described in

end-product glow-wire flammability test standard

IEC 60695-2-11 and any applicable product end-

use standard(s). If it is determined during the

customer’s evaluation of suitability, that higher

performance is required, please contact Molex for

possible product options."""""""

MLX Power Connectors

MLX

884982534162

Natural

94V-2

Yes

Tin

Nylon

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

36757 Series

Mates With

42021 Plug

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Resin
