39-03-9242: DescriptionHeaders & Wire Housings MiniFit JrRec Hsg SR V-0 24Ckt Black; CategoryThe connector The connector; File Size277KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-03-9242 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-03-9242	-	-	View	Buy Now

39-03-9242 Overview

Headers & Wire Housings MiniFit JrRec Hsg SR V-0 24Ckt Black

39-03-9242 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks

Preview

Download Datasheet

View All

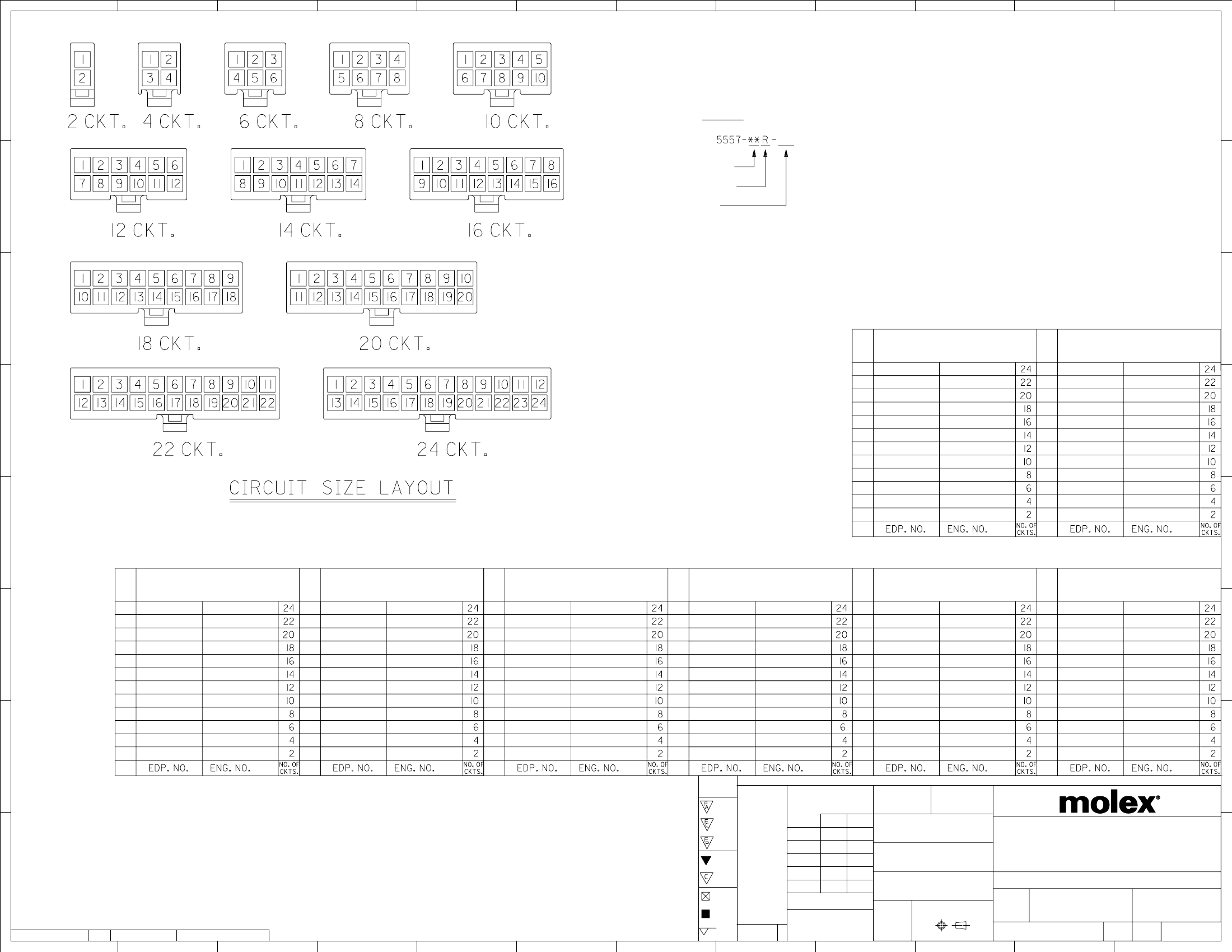

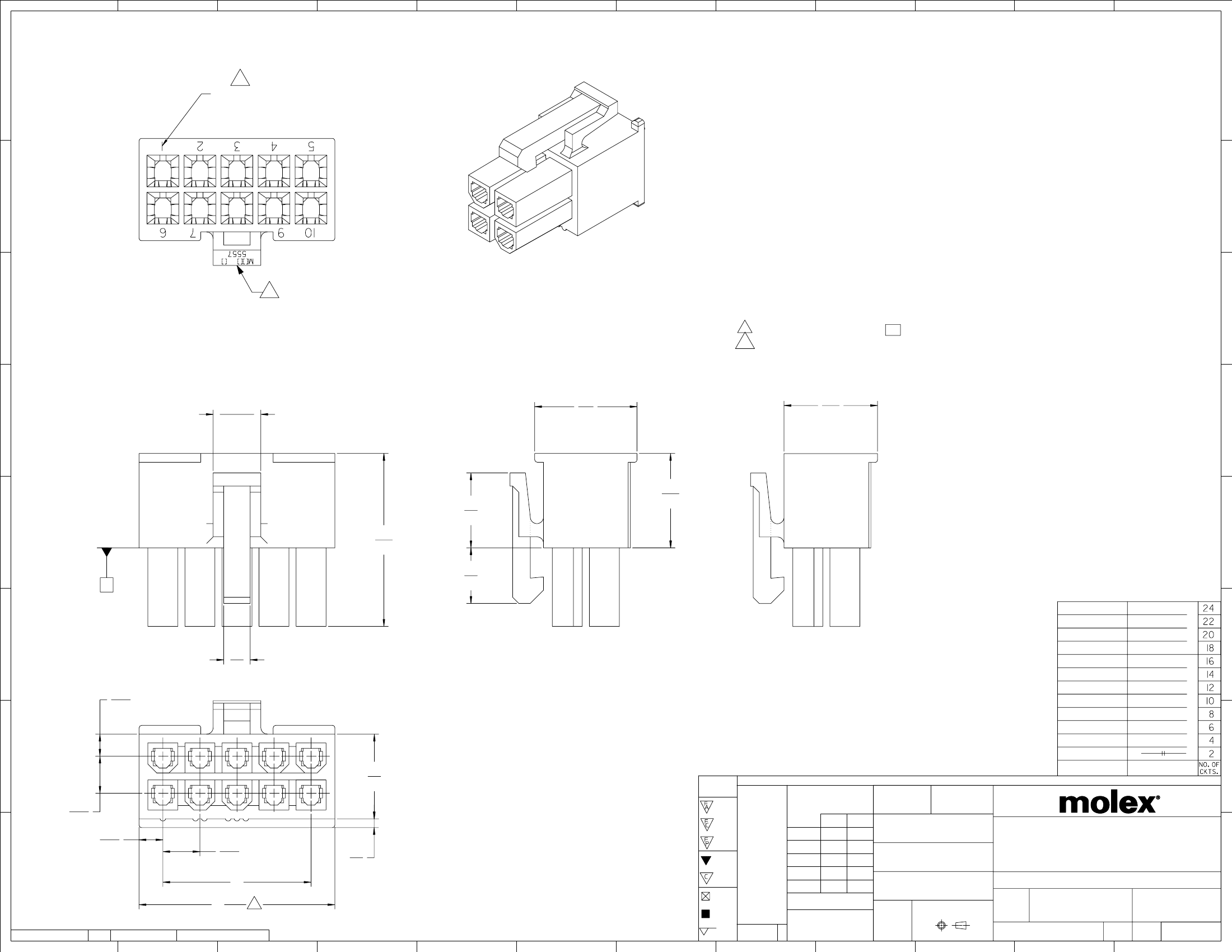

CIRCUIT #

4 CKT SHOWN

NOTES:

1) MATERIAL:

"BLANK" = NYLON 6/6, UNFILLED UL94V-2, COLOR: NATURAL.

"BL" = NYLON 6/6, UNFILLED UL94V-2, COLOR: BLACK.

"BU" = NYLON 6/6, UNFILLED UL94V-2, COLOR: BLUE.

"RE"= NYLON 6/6, UNFILLED UL94V-2, COLOR: RED.

"YE"= NYLON 6/6, UNFILLED UL94V-2, COLOR: YELLOW

"GRE"= NYLON 6/6, UNFILLED UL94V-2, COLOR: GREEN.

"210" = NYLON 6/6, UNFILLED UL94V-0, COLOR: NATURAL.

"400" = NYLON 6/6, UNFILLED UL94V-0, COLOR: BLACK.

2) FINISH: NOT APPLICABLE

3) PRODUCT SPECIFICATION: PS-5556-001

4) PACKAGING: BULK

5) PART MATES WITH MOLEX PLUG #5559 AND HEADERS #5566, #5569.

6) PART TO BE USED WITH MOLEX FEMALE TERMINAL #5556.

7) PART IS NOT DESIGNED FOR CURRENT SHARING.

8) CONNECTORS ARE NOT TO BE MATED OR UNMATED WHILE CIRCUITS ARE LIVE.

9) WIRES ARE TO BE DRESSED IN SUCH A MANNER TO ALLOW THE TERMINALS

TO FLOAT FREELY IN THE POCKET.

10) PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC SPECIFICATION

PS-45499-002 WITH THE EXCEPTION OF DISCOLORATION, FLASH AND SINK MEET

CLASS "C" REQUIREMENTS.

TO BE MEASURED AT SURFACE

TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND TEXT LOCATION MAY VARY

DEPENDING ON PART NUMBER AND/OR TOOL.

.21

.03

5.4

0.8

.46

11.6

.42

10.6

.33

8.5

.42

10.7

.77

19.6

.25

6.3

.12

3.0

4-24 CKT

2 CKT ONLY

.098

2.50

2017/03/13

2017/04/04

2017/04/11

.38

9.6

2.031/(51.60)

1.866/(47.40)

1.701/(43.20)

1.535/(39.00)

1.370/(34.80)

1.205/(30.60)

1.039/(26.40)

0.874/(22.20)

0.709/(18.00)

0.543/(13.80

0.378/(9.60)

0.213/(5.40)

1.819/(46.20)

1.654/(42.00)

1.488/(37.80)

1.323/(33.60)

1.157/(29.40)

0.992/(25.20)

0.827/(21.00

0.661/(16.80)

0.496/(12.60)

0.331/(8.40)

0.165/(4.20)

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

.165

4.20

.106

2.70

.165TYP

4.20

.02

0.4

REMOVE DIM C

GENERAL TOLERANCES

(UNLESS SPECIFIED)

IN/MM

DRWN BY

DATE

4:1

INCH

0.01

0.015

4 PLACES

3 PLACES

0.25

0.38

S.MOCHIZUKI

CHK'D BY

DATE

'90/02/22

'97/01/08

DATE

114499

BAPPELDORN

JBELL

FSMITH

.04

1.0

MINIFIT JR

RECEPTACLE HOUSING DUAL ROW 2-24 CKT

2 PLACES

1 PLACES

0 PLACES

M.FUKUSHIMA

APPR BY

PRODUCT CUSTOMER DRAWING

2011/02/21

SERIES

MATERIAL NUMBER

CUSTOMER

FSMITH

DRAWING SIZE

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-C

REVISION: C

DATE: 2016/02/04

EC NO:

DRWN:

CHK'D:

APPR:

.02

0.4

ANGULAR TOL

0.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

5557

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

RELEASE DATE

J16

REV

SD-5557-003

PSD

000

1 OF 2
