36582-0002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36582-0002

36582-0002: DescriptionDIN 41612 Connectors DIN; CategoryThe connector The connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

36582-0002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36582-0002	-	-	View	Buy Now

36582-0002 Overview

DIN 41612 Connectors DIN

36582-0002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.618 inch
body length	3.692 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	400 Cycles
Insulation resistance	1000000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C,D,E
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	160
Base Number Matches	1

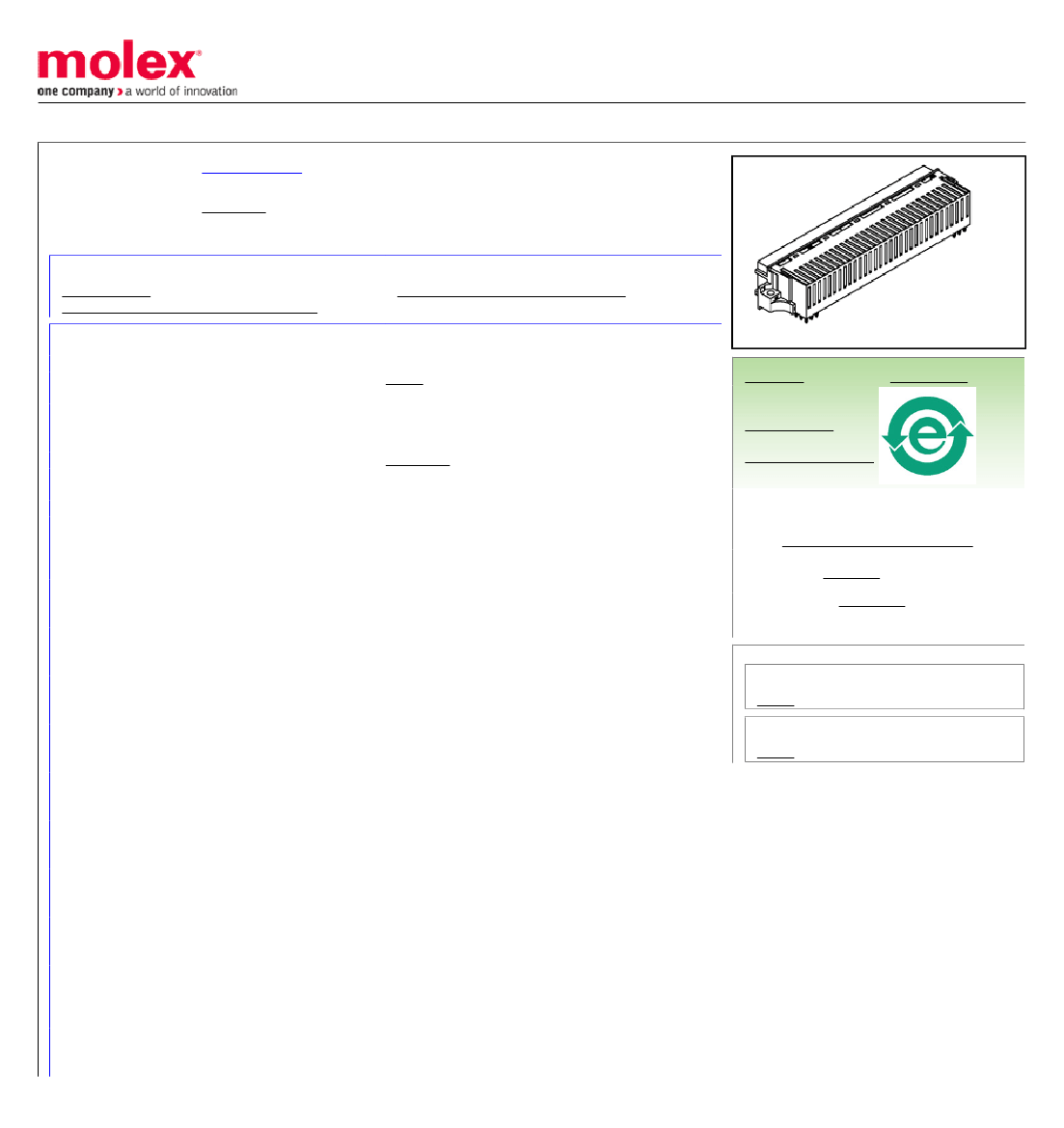

Preview

Download Datasheet

View All

This document was generated on 07/04/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

36582-0002

Active

DIN 41612

2.54mm Pitch DIN 41612 Receptacle, Right Angle, Through Hole, Press-Fit Type,

0.8µm Selective Gold (Au), 160 circuits, Lead-Free

Documents:

Drawing (PDF)

Product Specification PS-36582-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

UPC

Backplane Connectors

36582

Daughtercard

R at style represents Right Angle Female DIN

Connector

PCB Receptacle

DIN 41612

IEC 603-2/DIN 41612

822348366668

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

160

Yes

Phosphor Bronze

Gold

Tin

Open Pin Field

Right Angle

3.00mm

Yes

1.60mm

Bag

2.54mm

0.762µm

2.540µm

-55°C to +125°C

Through Hole - Compliant Pin

Search Parts in this Series

36582Series

Mates With

36587 Series R Male Press-Fit Headers

Electrical

Current - Maximum per Contact

Data Rate

Real Signals (per 25mm)

622.0 Mbps

Recommended Resources

CPU input and output and memory control circuit

TN-C system

OPA604 high performance low power audio power amplifier circuit diagram

Coded anti-theft alarm circuit

3S speech synthesis IC HM2055 typical circuit
