88974053 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 88974053

88974053: DescriptionControllers M3 CUSTOM CD20R 12 8 100 240VAC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size127KB，5 Pages; ManufacturerCrouzet; Environmental Compliance

Download Datasheet Parametric View All

88974053 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88974053	-	-	View	Buy Now

88974053 Overview

Controllers M3 CUSTOM CD20R 12 8 100 240VAC

88974053 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Crouzet
Product Category	Controllers
RoHS	Details
Analog / Digital	Digital
Type	Compact Range
Display Type	LCD Display
Operating Supply Voltage	100 VAC to 240 VAC
Mounting	DIN Rail

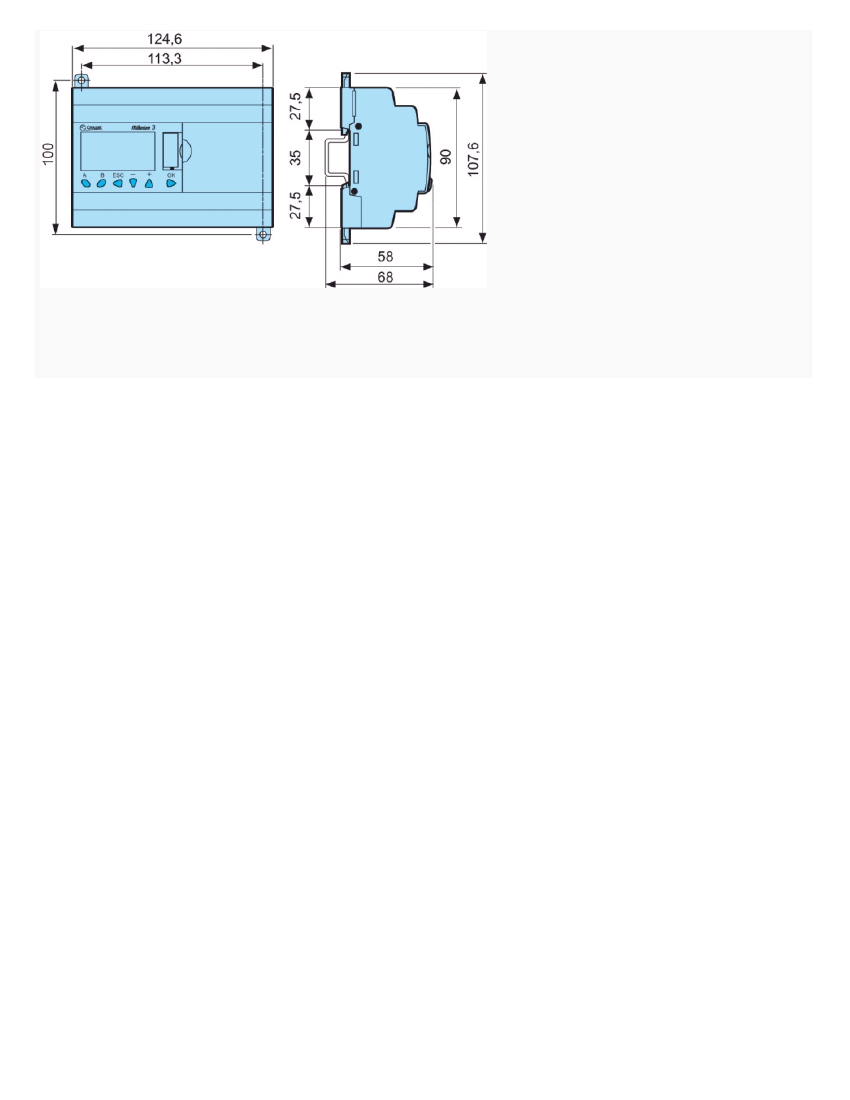

Size	124.6 mm x 90 mm x 58 mm
Features	Memory back-up using EEPROM or battery
Number of Outputs	8
Output Type	8 x SPST NO
Number of Inputs	12
Factory Pack Quantity	1
Unit Weight	13.248018 oz

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

Smart "Compact" range with display CD20 Smart Part number 88974053

Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting

Allow the use of the entire library of specific functions blocs of the software workshop

Extended temperature range (-20 °C →+70 °C)

Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)

Selective parameter setting : you can choose the parameters that can be adjusted on the front panel

Part numbers

Type

88974053

CD20 Smart

Inputs

12 digital

Outputs

8 relays 8 A

Supply

100 →240 V AC

Specifications

General environment characteristics for CB, CD, XD, XB, XR and XE product types

Certifications

Conformity to standards (with the low voltage directive

and EMC directive)

CE, UL, CSA, GL

IEC/EN 61131-2 (Open equipment)

IEC/EN 61131-2 (Zone B)

IEC/EN 61000-6-2,

IEC/EN 61000-6-3 (*)

IEC/EN 61000-6-4

(*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)

Not included

In accordance with IEC/EN 60529 :

IP40 on front panel

IP20 on terminal block

3 in accordance with IEC/EN 60664-1

Degree : 2 in accordance with IEC/EN 61131-2

Operation : 2000 m

Transport : 3048 m

Immunity to vibrations IEC/EN 60068-2-6, test Fc

Immunity to shock IEC/EN 60068-2-27, test Ea

Immunity to ESD

IEC/EN 61000-4-2, level 3

Immunity to radiated electrostatic fields

IEC/EN 61000-4-3

Immunity to fast transients (burst immunity)

IEC/EN 61000-4-4, level 3

Immunity to shock waves

IEC/EN 61000-4-5

Radio frequency in common mode

IEC/EN 61000-4-6, level 3

Voltage dips and breaks (AC)

IEC/EN 61000-4-11

Immunity to damped oscillatory waves

IEC/EN 61000-4-12

Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1

(*) Except configuration (88 970 1.1 or 88 970 1.2) +

(88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)

-20 →+70 °C

except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure)

in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22

-40 →+80 °C in accordance with IEC/EN 60068-2-1 and

IEC/EN 60068-2-2

95 % max. (no condensation or dripping water) in accordance with

IEC/EN 60068-2-30

On symmetrical DIN rail, 35 x 7.5 mm and 35 x 15 mm, or on panel (2 x Ø 4 mm)

Flexible wire with ferrule =

1 conductor : 0.25 to 2.5 mm

(AWG 24...AWG 14)

2 conductors 0.25 to 0.75 mm

(AWG 24...AWG 18)

Semi-rigid wire =

1 conductor : 0.2 to 2.5 mm

(AWG 25...AWG 14)

Rigid wire =

1 conductor : 0.2 to 2.5 mm

(AWG 25...AWG 14)

2 conductors 0.2 to 1.5 mm

(AWG 25...AWG 16)

Tightening torque =

0.5 N.m (4.5 lb-in) (tighten using screwdriver diam. 3.5 mm)

Also valid for spring cage connectors (ref 88 970 313 and 88 970 317 for the RBT range)

Earthing

Protection rating

Overvoltage category

Pollution

Max operating Altitude

Mechanical resistance

Resistance to electrostatic discharge

Resistance to HF interference

Conducted and radiated emissions

Operating temperature

Storage temperature

Relative humidity

Mounting

Screw terminals connection capacity

General characteristics

Operating temperature

-20 →+70 °C

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
