34BWSP52B4M7QT: DescriptionToggle Switches Toggle Switch, Miniature, sealed, PC mount, RoHS Compliant; CategoryMechanical and electronic products switch; File Size427KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

34BWSP52B4M7QT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34BWSP52B4M7QT	-	-	View	Buy Now

34BWSP52B4M7QT Overview

Toggle Switches Toggle Switch, Miniature, sealed, PC mount, RoHS Compliant

34BWSP52B4M7QT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
body width	5.08 mm
body height	12.8 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au) - with Silver (Ag) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

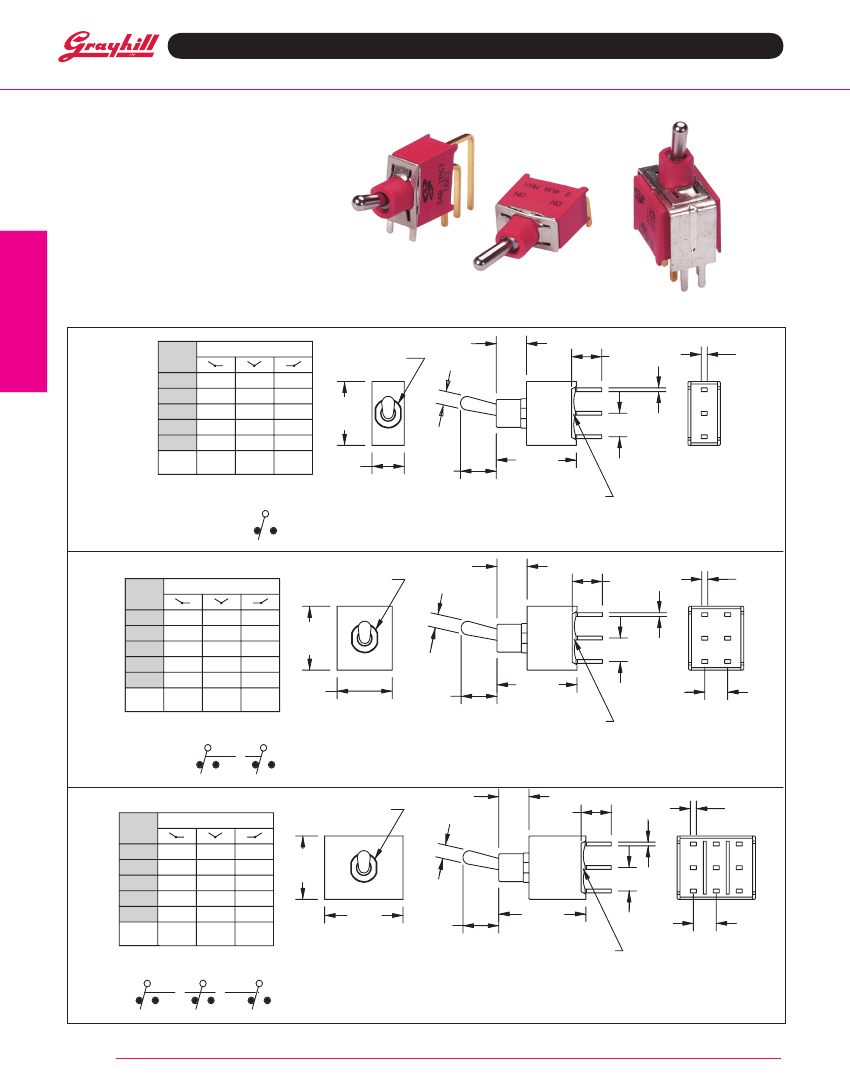

Series 34B: Sealed Miniature Toggle Switches

SerieS 34B

Sealed Miniature Toggle Switches

FeATUreS

• Save Space and Weight

• SPDT, DPDT, and 3PDT Circuitry

• Choice of Actuators, Bushings and

Terminations

• Sealed per IP67

Toggle Switches

ModelS

SPdT

in inches (and millimeters)

Model

No.

WSP1

WSP2

WSP3

WSP4

WSP5

Term.

Comm.

Switching Position

(ON)

2-3

NONE

OFF

OPEN

(ON)

2-1

Ø.220

Ø5.60

.504

(12.8)

.250

(6.35)

.250

(6.35)

.050

(1.27)

Ø.107

(Ø2.72)

.268

(6.8)

.297

(7.54)

.030

(0.76)

.663

(16.85)

EPOXY SEAL

.185

(4.7)

()=MOMENTARY

02COMM.

SCHEMATIC

.250

(6.35)

dPdT

Model

No.

WDP1

WDP2

WDP3

WDP4

WDP5

Term.

Comm.

Switching Position

Ø.220

(Ø5.60)

(ON)

2-1

5-4

.250

(6.35)

.050

(1.27)

(ON)

2-3

5-6

NONE

OFF

OPEN

.504

(12.8)

Ø.107

(Ø2.72)

.457

(11.6)

.297

(7.54)

.663

(16.85)

EPOXY SEAL

.030

(0.76)

.185

(4.7)

.190

(4.83)

()=MOMENTARY

02COMM.

05COMM.

SCHEMATIC

3 4

.250

(6.35)

.030

(0.76)

3PdT

Model

No.

W3P1

W3P2

W3P3

W3P4

W3P5

Term.

Comm.

Switching Position

Ø.220

(Ø5.60)

(ON)

2-1

5-4

.250

(6.35)

.050

(1.27)

(ON)

2-3

5-6

NONE

OFF

OPEN

.500

(12.7)

Ø.107

(Ø2.72)

.650

(16.5)

.297

(7.54)

.722

(18.35)

EPOXY SEAL

.185 .190

(4.7) (4.83)

()=MOMENTARY

02COMM.

05COMM.

08COMM.

3 4

6 7

SCHEMATIC

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
