P5
ALTERNATE
ACTION

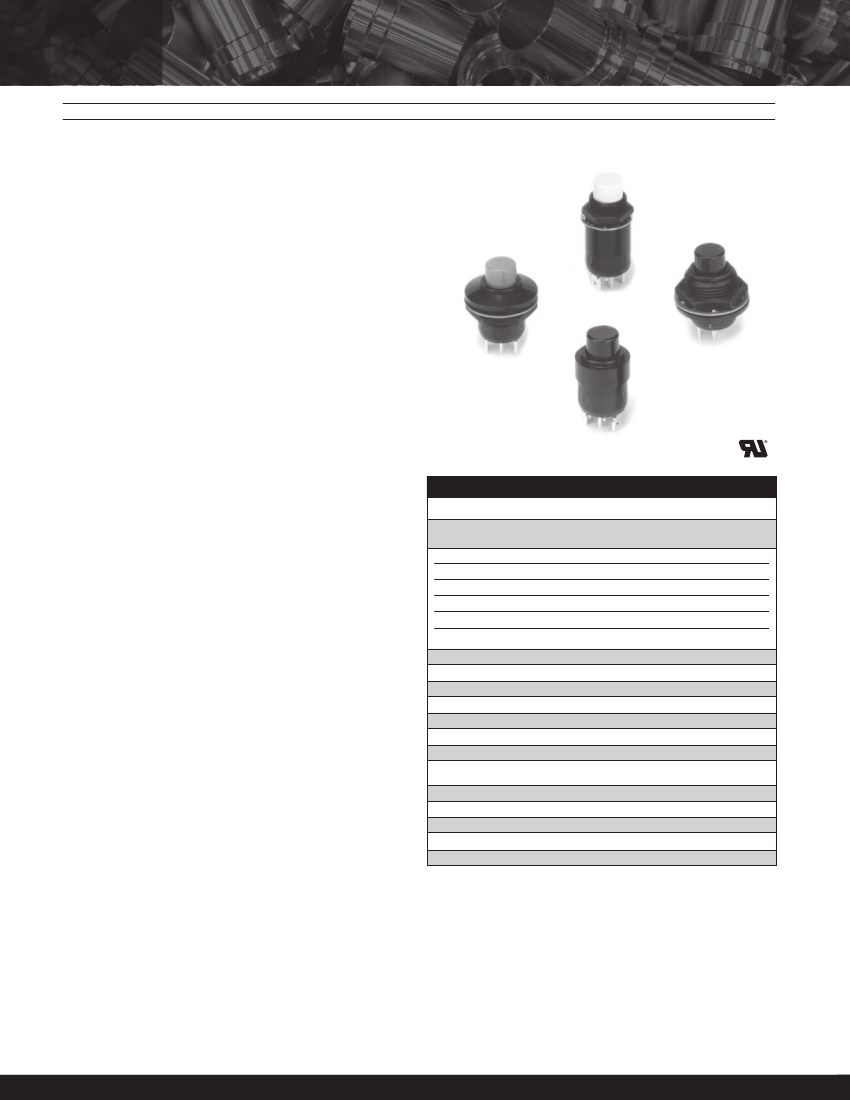

ALTERNATE ACTION PUSHBUTTONS
SEALED AGAINST DUST & MOISTURE
The P5 Alternate Action switches match the P1, P3 and P8
Momentary Action Pushbutton models for mixed function
with common panel appearance. Now you can design panels
with both alternate and momentary action switches and have
uniform panel appearance. The P5 features alternate action
in the same pushbutton and housing configuration as the
momentary P1 and P3 and as a bonus, the P5 requires less
behind the panel space than the P1 and P3 momentary versions.
Push and the P5 switch turns “on.” Push again and the P5 switch
turns “off.” Positive tactile feedback is featured so the operator
is clearly aware the switch mode has been executed. The button
returns to the original position after each actuation.
To guard against front panel splash and dirt, the P5 series
is sealed at the button with OTTO’s patented “rolling
sleeve”principle. The terminals are sealed with epoxy, providing
a seal against flux during wiring and behind panel dirt and
moisture. The combination of sealing provides smooth operation
over a wide temperature range. Watertight sealing to IP68S is
available.
A vandal resistant style is available in the P5-V series. Custom
housings, shrouded buttons, contact configurations and
materials are available to suit your application requirements. We
also provide custom button engraving with epoxy ink backfill,
watertight versions and other special characteristics.
, Push O
“Push On
ff” action

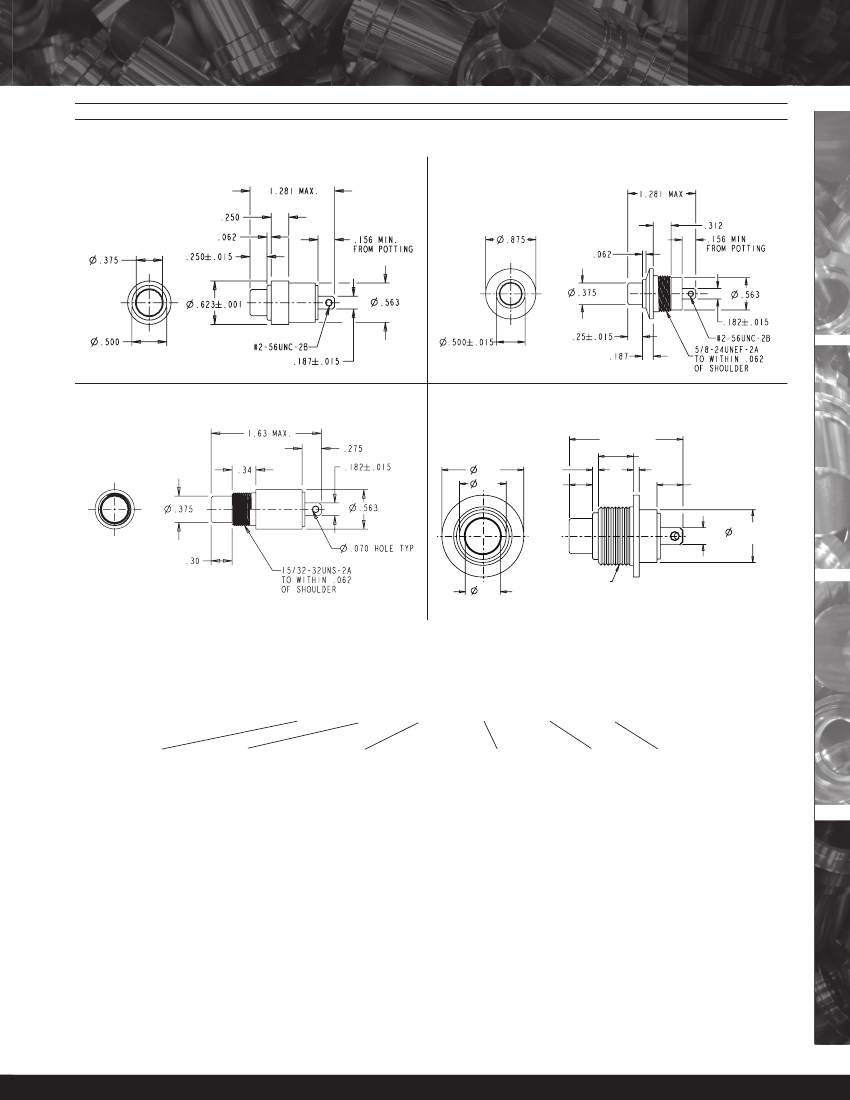

Style P5-4
Style P5-3
Style P5-6
Style P5-1
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Motor
DWV
Low Level
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Total Travel:
Overtravel:
Sea Level @ 28VDC
or 115VAC, 60/400Hz
10A
5A
1A
3A
1050Vrms
10mA @ 30mV
25,000 cycles
1,000,000 cycles
IP64 & MIL-PRF-8805 Design 2 or IP68S
3.0 lbs. +1/-0.5 lb.
0.180 inches max
0.012 inches min
Features:
• Button sealed with patented “rolling sleeve” principle
• Contact area sealed at case & terminals
• Moistureproof & dusttight to IP64 & MIL-PRF-8805
Design 2 or watertight to IP68S
• Less than 25mΩ contact resistance
• Handles low level up to 10 amps
• Variety of mounting styles
• Engraved buttons available
• Choice of 9 button & 3 bezel colors
• Panel appearance matches most other OTTO
momentary pushbutton switches
• Unsealed construction also available
• RoHS/WEEE/Reach compliant
Operating Temp Range:
-55°C to +85°C
MATERIALS:
Case:
Button:
Terminals:
Terminal Hardware:
Mounting Hardware:
Anodized aluminum alloy
Thermoplastic
Brass, silver plate or gold plate for low level
Terminal lugs, lockwasher and screw for screw terminal option
Hex nut, lockwasher and panel seal on watertight switches
119
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
