Basic, Toggle,
And Rocker
Switches
Product Range Guide
For innovation that’s well apart, there’s only Honeywell
With more than 50,000 products ranging from snap-action,
limit, toggle, and pressure switches to position, speed,
pressure, and airflow sensors, Honeywell has one of the
broadest sensing and switching portfolios.
Honeywell sensor, switch, and control components are
tailored to exact specifications for stronger performance,
longer productivity, and increased safety. Enhanced
accuracy and durability are built into every part, improving
output and endurance. For our customers, this can reduce
expenditures and operational costs. Our global footprint
and channels help to competitively price such components
for your chosen application and provide immediate
technical support.
While Honeywell’s switch and sensor solutions are suitable for
a wide array of basic and complex applications, our custom-
engineered solutions offer enhanced precision, repeatability,
and ruggedness. We offer domain knowledge and technology
resources, along with a close working relationship, to develop
and deliver cost-effective, individually tailored solutions.
Whether clean-slate development or simple modifications to an
existing design are needed, our expertly engineered solutions
help to meet the most stringent requirements with world-class
product designs, technology integration, and customer-specific
manufacturing.
Global service, sourcing, and manufacturing. Industry-leading
engineers. Value-added assemblies and solutions. A one-stop,
full-service, globally competitive supplier.
Table of Contents
Premium and Standard V-Series Switches . . . . . . . . . . . . . . . . . . . . . . . . . 3
Premium and Standard Miniature and Subminiature Switches . . 4-5
Premium Large Switches and Accessories . . . . . . . . . . . . . . . . . . . . . . . 6-7
Sealed Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lit and Unlit Pushbuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Sealed and Standard Toggles and Rockers . . . . . . . . . . . . . . . . . . . . 10-11
Honeywell Core Industry Segments . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Honeywell Product Portfolio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
2
sensing .honeywell .com
MICRO SWITCH Basic Series |
Premium & Standard V-Series Switches
Simple or precision on/
off, end of limit, presence/
absence, pressure,
temperature, and manual
operator interface
application needs . Potential
uses include a variety of
applications, including
business equipment, valves,
manually operated devices,
vending machines, water
heaters, appliances, and
industrial controls .

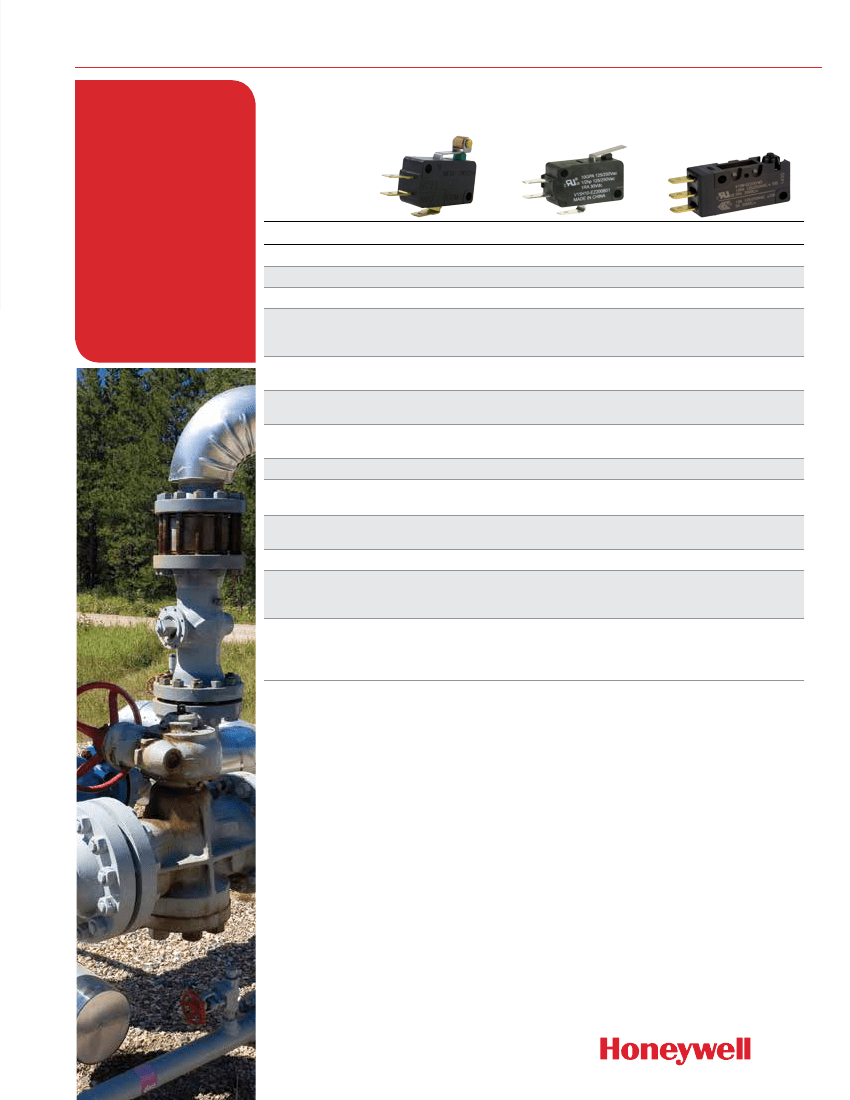

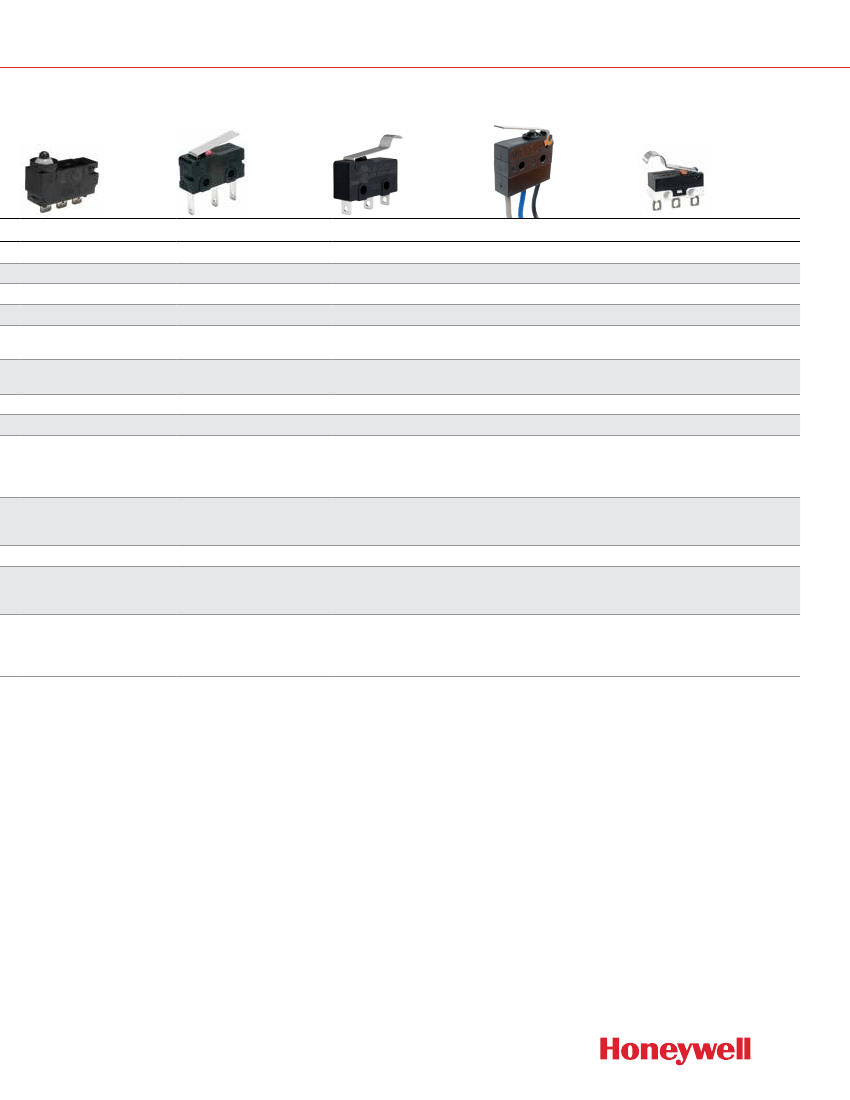

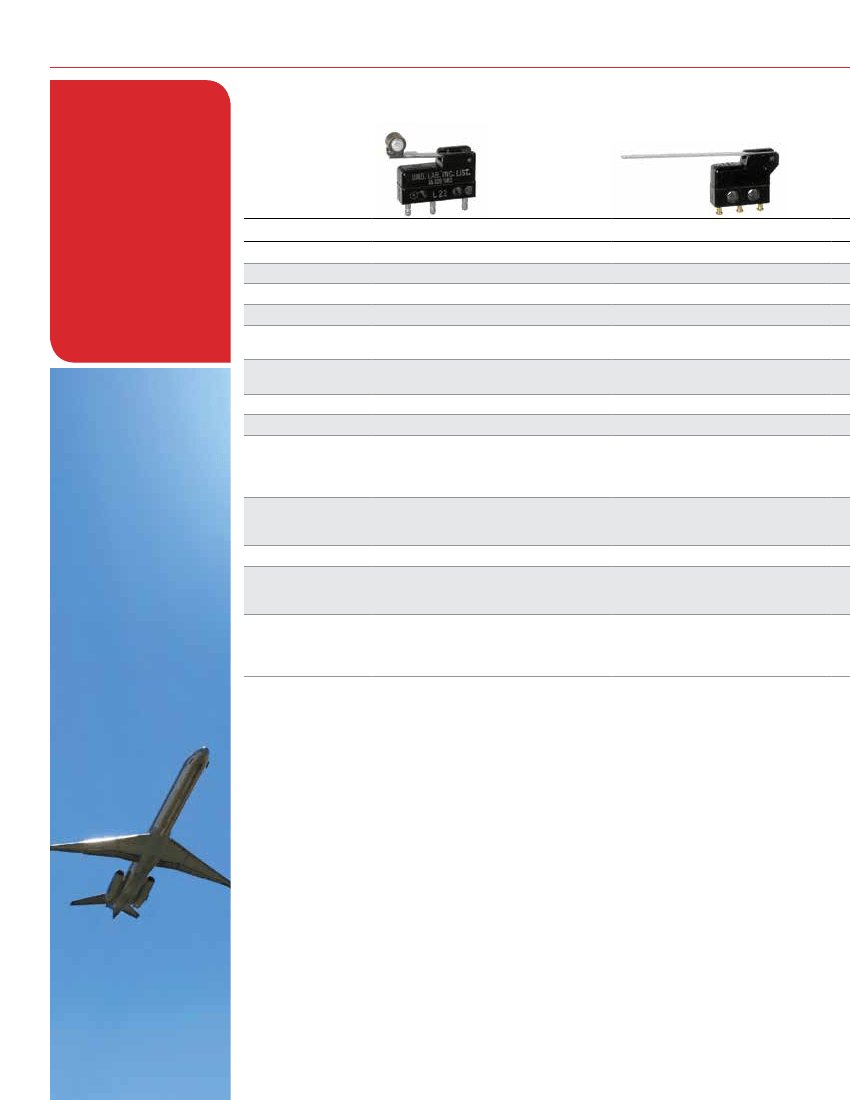

Series
Type
Amp rating
Circuitry
Operating force
Terminations
Actuators/levers
Voltage
Approvals
Operating
temperature range
Contacts
Housing material
Measurements
V7
premium
0.1 A to 25 A
SPDT, SPNO, SPNC
0.7 oz max. to 14.6 oz max.
quick connect, pc board, pcb
straight angle left
pin plunger, straight, roller, sim.
roller
125 Vac, 250 Vac, 277 Vac
UL, CSA, ENEC
-40°C to 150°C
[-40°F to 302°F]
silver, silver cadmium oxide,
gold
PCT polyester thermoplastic
15,9 mm H x 10,2 mm W x
28,8 mm L [0.63 in H x
0.4 in W x 1.14 in L]
extended mechanical and
electrical life; wide temperature
range; custom engineered
solutions
V15
standard
5 A to 26 A
SPDT, SPNO, SPNC
US: ≥ 100 g (16 A to 26 A)
AP: 15 g to 400 g (5 A to
26 A)
quick connect, screw, solder,
RAST 5 & 7
pin plunger, straight, roller,
sim. roller
125 Vac, 250 Vac
UL, cUL, ENEC, CQC
-25°C to 150°C
[-13°F to 300°F]
silver, silver cadmium oxide,
gold-plated silver
PBT polyester thermoplastic
15,9 mm H x 10,3 mm W x
27,8 mm L [0.63 in H x
0.41 in W x 1.09 in L]
broad range of electrical
loads; wide temperature
range; limited configuration
options available
V15W Watertight
watertight
0.1 A, 5 A, 10 A
SPDT, SPNO, SPNC
15 g, 25 g, 50 g, 100 g, 200 g
preleaded; terminals: 4,8 mm x
0,8 mm or 4,8 mm x 0,5 mm
pin plunger, straight, roller,
sim. roller
125 Vac, 250 Vac, 30 Vdc, 48
Vdc
UL, cUL, ENEC, CQC
-40°C to 85°C
[-40°F to 185°F]
silver nickel, gold-plated option
PBT polyester thermoplastic
15,9 mm H x 10,3 mm W x
33 mm L [0.63 in H x 0.41 in W
x 1.3 in L]
designed for harsh-duty, wash
down areas; high sealing
capability with an IP67 rating
(pre-leaded only)
Features
3
MICRO SWITCH Basic Switches |
Premium/Standard Miniature & Subminiatu
Designed for high precision,
presence and absence
detection, where physical
contact with an object is
permissible and in simple
on-and-off actions . These
compact, highly reliable and
rugged switches are used
in potential applications
including aerospace,
HVAC, instrumentation,
office equipment, medical/
dental, valves, and vending
machines .
Series
Type
Amp rating
Circuitry
Operating force
Terminations
Actuators/levers
Voltage
Approvals
Operating
temperature range
SM
premium
0.1 A to 11 A
SPDT
0.04 oz to 2 oz
quick connect, solder, pcb
pin plunger, straight, roller, sim. roller, paddle
115 Vac, 125 Vac, 250 Vac, 30 Vdc
UL, CSA, ENEC, CE
-55°C to 121°C [-67°F to 250°F]
high temperature options to 204°C [400°F]
SX
premium
1 A to 7 A
SPDT, SPNO
0.71 oz to 6 oz
quick connect, solder, pcb
pin plunger, straight, roller, sim. roller, offset flag,
crossed roller
125 Vac, 250 Vac, 28 Vdc
UL, CSA, ENEC, CE
-55°C to 121°C [-67°F to 250°F]
high temperature options to 204°C [400°F]
Contacts
Housing material
Measurements
silver, gold
phenolic
12,7 mm H x 6,35 mm W x 20,3 mm L
[0.5 in H x 0.25 in W x 0.8 in L]
extended operating life; elongated mounting holes;
MIL-PRF-8805 qualified listings available
silver, gold
phenolic
12,7 mm H x 6,35 mm W x 20,3 mm L
[0.5 in H x 0.25 in W x 0.8 in L]
extended operating life; elongated mounting
holes; MIL-PRF-8805 qualified listings available
Features
4
sensing .honeywell .com
ure Switches
ZD
standard
0.1 A, 3 A
SPDT
130 gf to 195 gf
solder, pcb straight, pcb left angle,
pcb right angle, pre-wired
pin plunger, straight,
sim. roller
125 Vac, 12 Vdc
UL, cUL, CE, ENEC
-40°C to 85°C
[-40°F to 185°F]
ZM
standard (coil internal spring)
0.1 A, 5 A, 10.1 A
SPST, SPDT, SPNO
0.18 oz to 8.78 oz
quick connect, solder, pcb
pin plunger, straight, roller,
sim. roller, L-shaped
125 Vac, 250 Vac, 30 Vdc
UL, CSA, CE
-40°C to 120°C
[-40°F to 248°F]
silver, gold-plated silver,
silver-tin-indium oxide
polyamide (nylon)
10,6 mm H x 6,4 mm W x
19,8 mm L [0.42 in H x 0.25 in W
x 0.78 in L]
ZM1
standard (flat internal spring)
0.1 A, 3 A, 6 A, 10.1 A, 16 A
SPDT, SPNO, SPNC
12 gf to 355 gf
quick connect, solder, pcb
pin plunger, straight, roller, sim.
roller, L-shaped
125 Vac, 250 Vac
UL, cUL, ENEC
-40°C to 125°C
[-40°F to 257°F]
silver, gold-plated silver, gold-
plated brass, silver-tin-indium
oxide
polyamide (nylon)
10,6 mm H x 6,4 mm W x
19,8 mm L [0.42 in H x 0.25 in W
x 0.78 in L]
ZW
standard
0.1 A, 6 A
SPDT, SPNO, SPNC
1.94 oz to 7.16 oz
quick connect, solder,
cable bottom/end, cable side exit
pin plunger, straight, roller,
sim. roller
125 Vac, 250 Vac
UL, cUL, CE, ENEC
-25°C to 70°C [-13°F to 158°F]
(with wires)
-25°C to 120°C [-13°F to 248°F]
(without wires)
silver, gold-plated silver
PBT (polyester)
9,0 mm H x 6,4 mm W x
19,8 mm L [0.36 in H x 0.25 in W
x 0.78 in L]
IP67 available; low energy or
power-duty electrical ratings;
gold-plated or silver contacts;
PBT polyester housing material
ZX
standard
0.1 A, 3 A
SPDT
0.53 oz to 5.3 oz
solder, pcb snap-in, pcb left angle,
pcb right angle
pin plunger, straight,
sim. roller, special
125 Vac, 48 Vdc
UL, CSA
-40°C to 65°C
[-40°F to 149°F]
silver, gold-plated silver
PBT polyester
10,6 mm H x 6,35 mm W x
19,8 mm L [0.42 in H x 0.25 in W
x 0.78 in L]
silver, gold-plated silver
polyamide (nylon)
6,5 mm H x 5,7 mm W x
12,7 mm L [0.26 in H x 0.22 in W
x 0.50 in L]
low energy or power-duty
electrical ratings; gold-plated
or silver contacts; polybutylene
terephthalate housing
low energy or power-duty electrical
low energy or power-duty electrical low energy or power-duty electrical
ratings; gold-plated or silver
ratings; gold-plated or silver
ratings; gold-plated or silver
contacts; PBT polyester housing
contacts
contacts
material
5
