B2-500213

Description
Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size2MB，4 Pages
ManufacturerOTTO
Websitehttp://www.ottoexcellence.com
Environmental Compliance
Download Datasheet Parametric Compare View All

B2-500213 Online Shopping

Suppliers Part Number Price MOQ In stock
B2-500213 - - View Buy Now

B2-500213 Overview

Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers

B2-500213 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerOTTO
Product CategoryBasic / Snap Action Switches
RoHSDetails
Contact FormSPDT
Switch FunctionON - (OFF), OFF - (ON)
IlluminatedNon-Illuminated
Factory Pack Quantity1

Preview

Download Datasheet

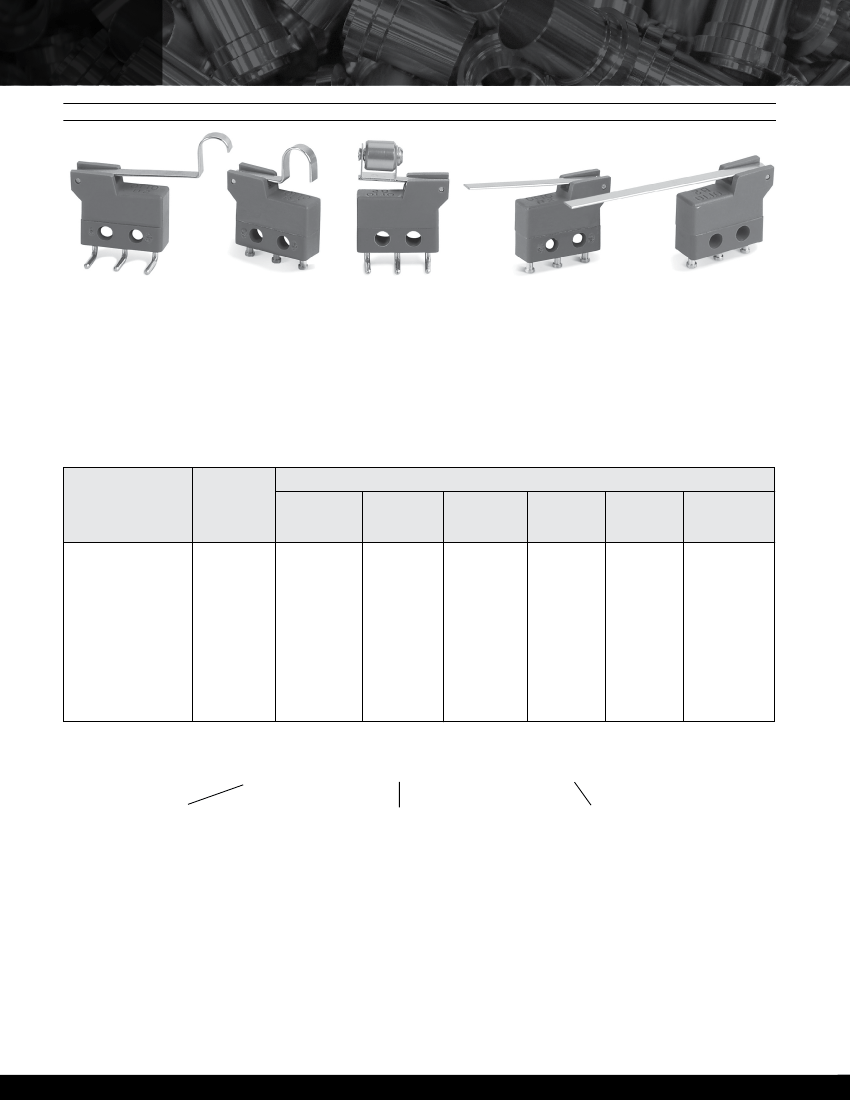

B2-5
BASIC
SWITCHES
B2 BASICS WITH INTEGRAL LEVERS
SINGLE BREAK, SNAP-ACTION, COMMERCIAL & MILITARY GRADES, SUBMINIATURE, TWO WIDTHS, INTEGRAL LEVERS
B2-500571
B2-500411
B2-501691
B2-500211
B2-500333
Shown are examples of available lever styles.
B2-5 Integral Lever Basic Switches
B2-5 series basic switches feature integral actuating levers. The lever is built-in so
that the switch and actuator are one assembly.
Making the lever actuator an integral part of the basic switch case makes sense and
saves money, too. Better precision, no auxiliary parts for you to assemble, and more
variety add up to a cost saving proposition.

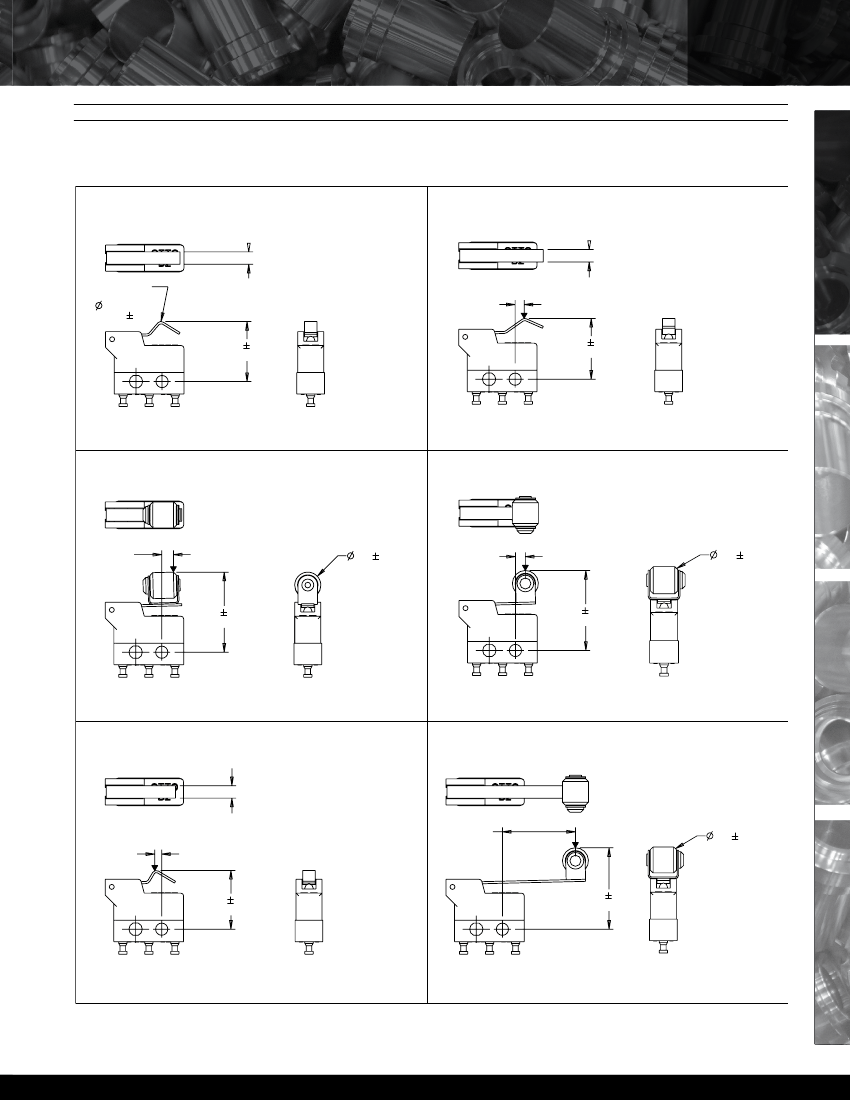

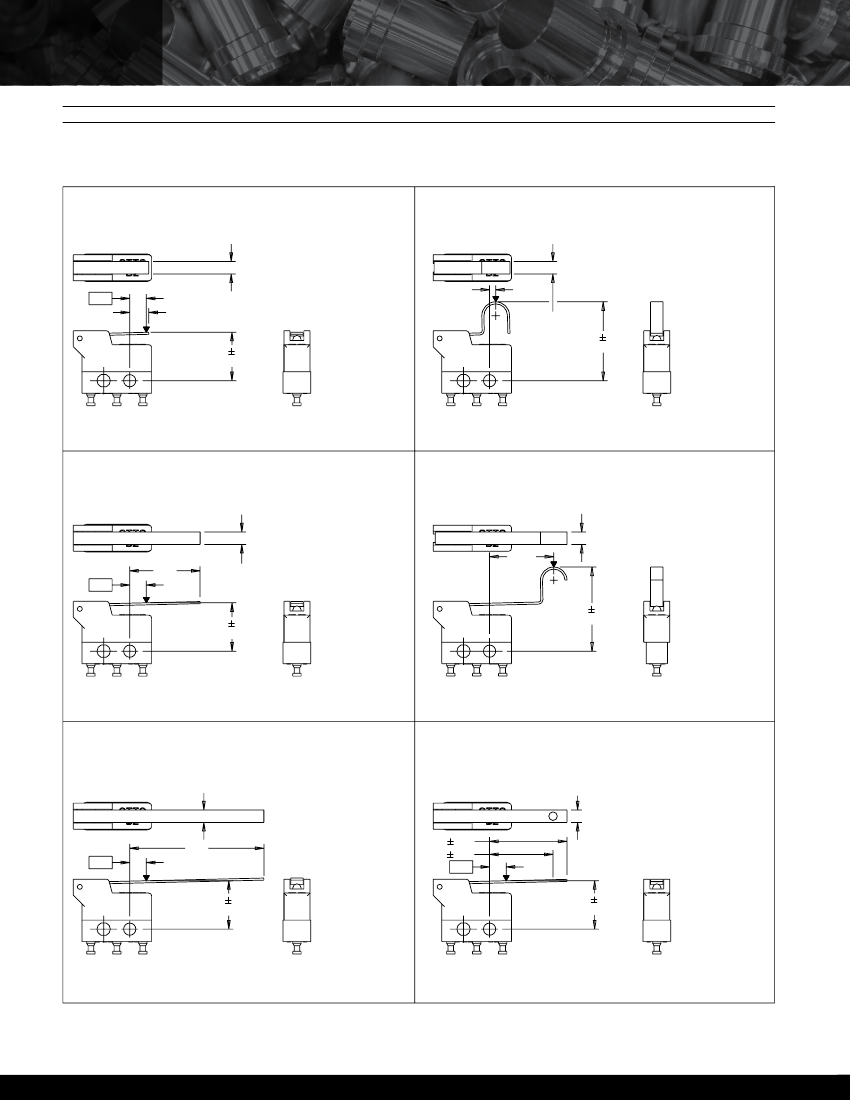

STANDARD OPERATIONAL CHARACTERISTICS
Lever
Style
Short Lever
Medium Lever
Long Lever
Short Formed “U” Lever
Long Formed “U” Lever
Lever Style with Hole
Short "V" Lever
Roller Sleeve Sideways
Short “L” Lever
Short Flat “V” Lever
Roller Lever in Line
Long Roller Lever in Line
Catalog
Number
B2-500111
B2-500211
B2-500311
B2-500411
B2-500511
B2-500611
B2-501211
B2-501611
B2-501711
B2-501811
B2-501911
B2-502011
Operating
Force
(max ounces)
1.76
1.10
0.71
2.10
1.10
1.10
3.00
2.29
3.00
2.20
2.29
1.00
Release
Force
(min ounces)
0.32
0.18
0.11
0.39
0.18
0.18
0.57
0.43
0.57
0.40
0.43
0.17
Pretravel
(max inches)
0.065
0.115
0.185
0.050
0.105
0.115
0.042
0.065
0.036
0.049
0.070
0.125
Overtravel
(min inches)
0.014
0.025
0.046
0.010
0.022
0.025
0.010
0.008
0.008
0.010
0.008
0.020
Move’t
Differ’l
(max inches)
0.020
0.035
0.060
0.015
0.035
0.035
0.010
0.020
0.009
0.015
0.020
0.040
Operating
Point
(inches)
0.330 +/- 0.045
0.330 +/- 0.045
0.330 +/- 0.045
0.553 +/- 0.035
0.572 +/- 0.070
0.330 +/- 0.045
0.419 +/- 0.030
0.560 +/- 0.045
0.411 +/- 0.028
0.421 +/- 0.037
0.559 +/- 0.050
0.552 +/- 0.100
B2-5
Lever Style
001.
002.
003.
004.
005.
006.
012.
016.
017.
018.
019.
020.
XXX
1.
2.
3.
4.
5.
6.
7.

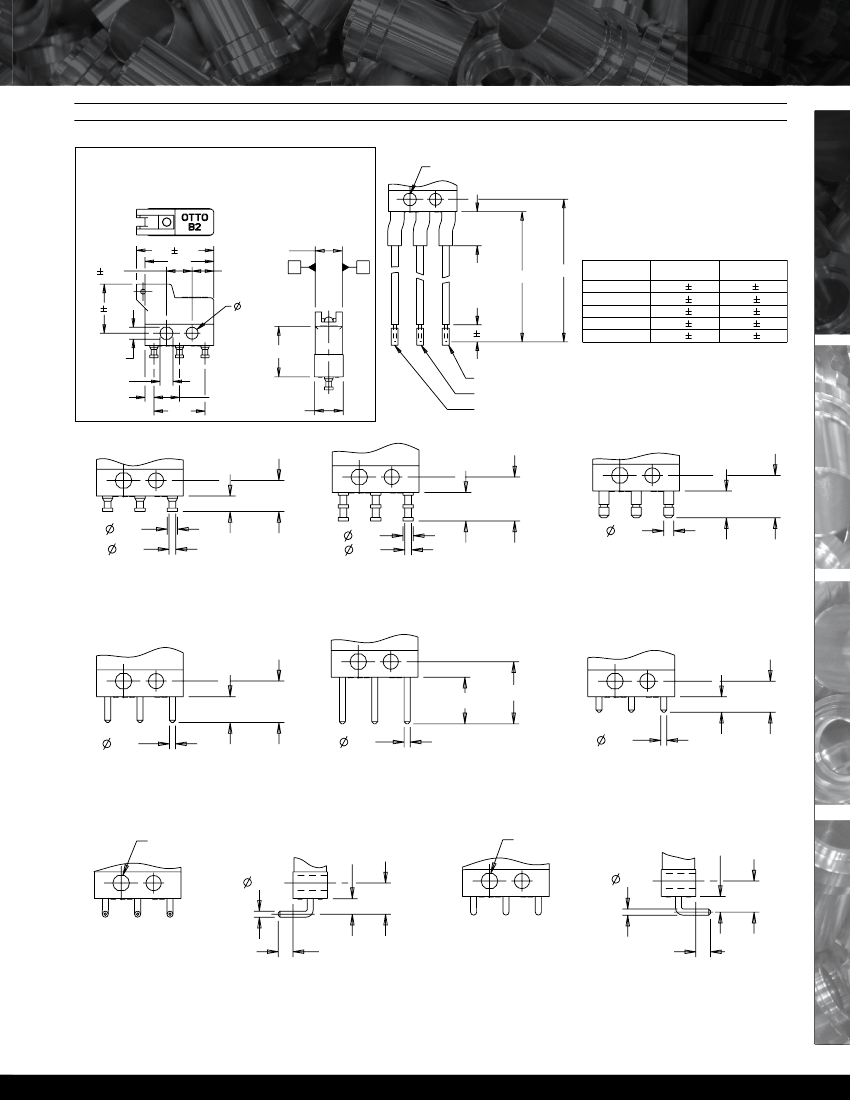

B2-5 PART NUMBER CODE
X
Terminal Style or Wire Length
X
Contact Material
1.
Silver/Gold - High Current
3.
Silver/Gold - Low Current
Short Straight
Medium Straight
Long Straight
Short Formed “U”
Long Formed “U”
With Hole
Short "V"
Roller Sleeve Sideways
Short “L”
Short Flat “V”
Roller Lever in Line
Long Roller Lever in Line
Single Solder Turret
Double Solder Turret
Quick Connect*
PC Pin 0.150” lg.
PC Pin 0.270” lg.
PC Pin 0.090” lg.
Right Angle PC Pin
9.
Right Angle**
A.
With Wires 06.0” lg.
B.
With Wires 12.0” lg.
C.
With Wires 18.0” lg.
D.
With Wires 24.0” lg.
E.
With Wires 30.0” lg.
* Mates with AMP .058” receptacles
** Opposite of 7
10
OTTO Full Line Catalog
Specifications Subject To Change Without Notice

B2-500213 Related Products

B2-500213 B2-500511 B2-500211 B2-501691 B2-500473 B2-501273 B2-500171
Description Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers Basic / Snap Action Switches Long Formed Lever Turret, Silver Basic / Snap Action Switches Medium Lever Turret, Silver Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers Basic / Snap Action Switches Sub-Min 7A SPST/SPDT W/Integral Levers
Maker - OTTO OTTO - OTTO OTTO -
Reach Compliance Code - unknown unknown - unknown unknown -
Switch type - SNAP ACTING/LIMIT SWITCH SNAP ACTING/LIMIT SWITCH - SNAP ACTING/LIMIT SWITCH SNAP ACTING/LIMIT SWITCH -
