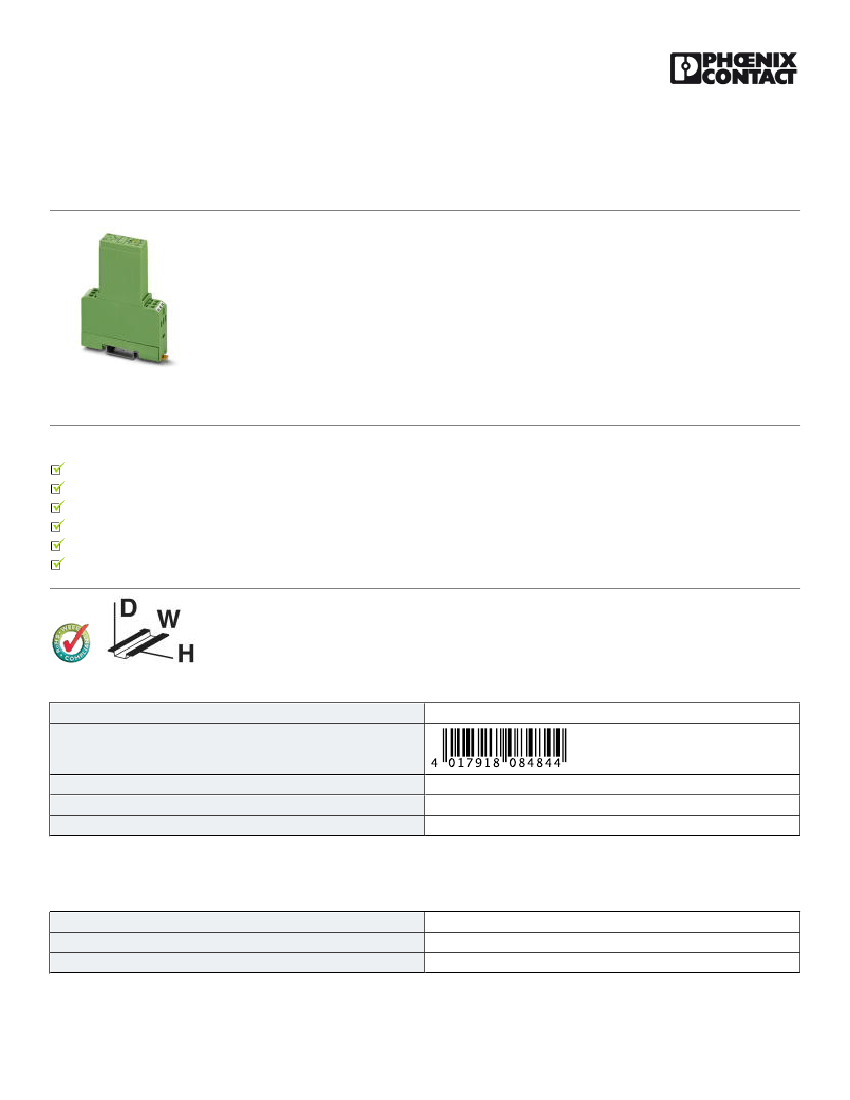

Solid-state relay module - EMG 17-OV-220DC/ 60DC/3 - 2954183
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Power solid-state relay, with LED and protective circuit in input and output circuits, input: 220 V DC, output: 12 -
60 V DC/max. 3 A
The illustration shows version EMG
17-OV, with DC voltage output, max.
3A
Product Features
Protective circuit in input and output
EMG-17-OV, short-circuit-proof with indicator LED
RC protective circuit
Status indicator
Electrical isolation
Zero voltage switch
Packing unit
GTIN
1 pc
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
85.08 GRM
85364900
Germany
Technical data
Dimensions
Width
Height
Depth
17.5 mm
75 mm
102 mm
10/22/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2954183
Solid-state relay module - EMG 17-OV-220DC/ 60DC/3 - 2954183
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Degree of protection
-20 °C ... 60 °C
-20 °C ... 70 °C
IP20
Input data
Nominal input voltage U
N
Input voltage range in reference to U
N
Switching threshold "0" signal in reference to U
N
Switching threshold "1" signal in reference to U
N
Typical input current at U
N
Typical response time
Typical turn-off time
Status display
Type of protection
Protective circuit/component
Transmission frequency
220 V DC
0.8 ... 1.2
≤ 0.4
≥ 0.8
4.5 mA
20 µs
200 µs
Yellow LED
Protection against polarity reversal
Surge protection
Polarity protection diode
300 Hz
Output data
Output nominal voltage
Output voltage range
Limiting continuous current
Peak offstate voltage
Voltage drop at max. limiting continuous current
Output circuit
Type of protection
Protective circuit/component
60 V DC
12 V DC ... 60 V DC
3 A (see derating curve)
60 V DC
1.2 V
2-wire, floating
Protection against polarity reversal
Surge protection
Polarity protection diode
Connection data
Connection method
Stripping length
Screw thread
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Screw connection
8 mm
M3
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
10/22/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2954183
Solid-state relay module - EMG 17-OV-220DC/ 60DC/3 - 2954183
Technical data
General
Test voltage input/output
Mounting position
Assembly instructions
Operating mode
Inflammability class according to UL 94
Standards/regulations
3.5 kV AC
3.5 kV AC
any
In rows with zero spacing
100% operating factor
V0
IEC 60664
EN 50178
IEC 62103
Rated surge voltage / insulation
Basic insulation
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27371102
27371102
27371001
27371001
27371001
27371001
27371001
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001504
EC001504
EC001504
EC001504
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211916
39121542
39121542
39121542
39121542
Drawings
10/22/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/2954183
Solid-state relay module - EMG 17-OV-220DC/ 60DC/3 - 2954183

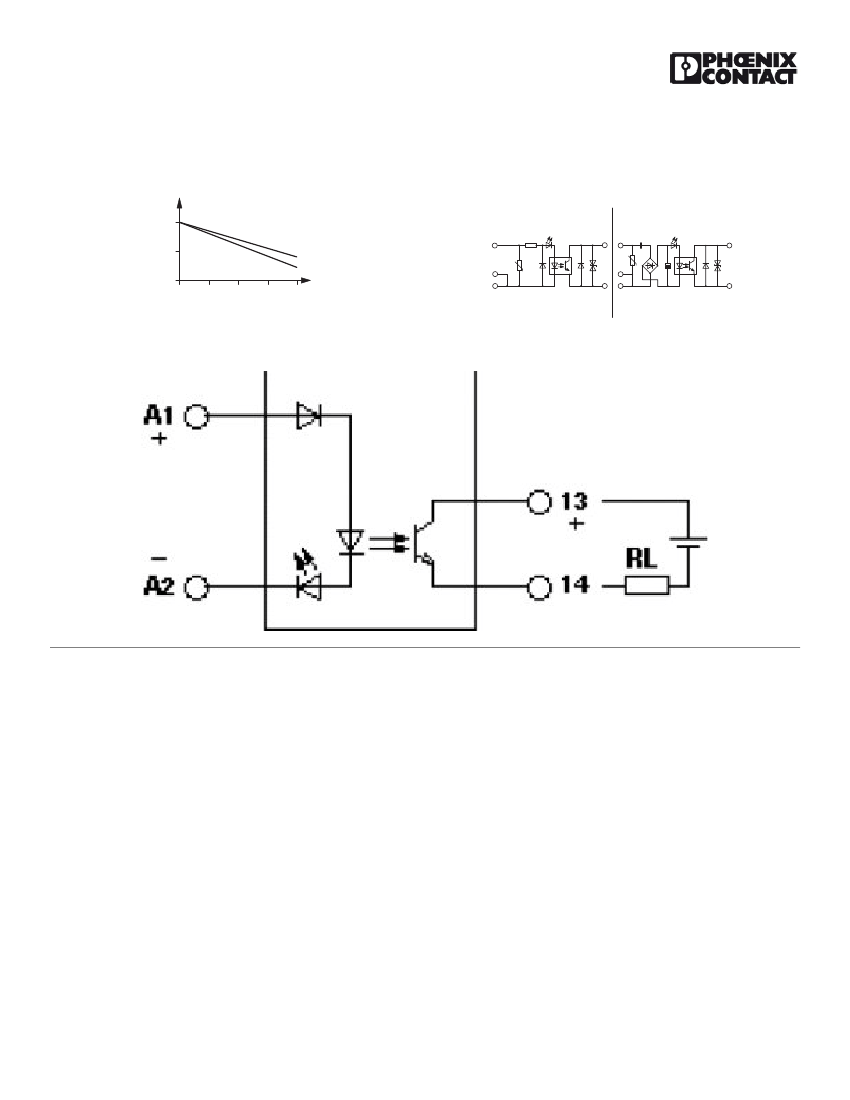

Diagram
Load current [A]
Circuit diagram
3
2
1,5
A1
+
A2
-
13 A1
+ +
A2
-
14 A2
DC
AC
13
+
1
20
30
40
50
60
Ambient temperature [°C]
0
A2
14
1
In rows with zero spacing
2
stand-alone device
Circuit diagram
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/22/2014 Page 4 / 4
