Solid State Relay
OCMOS FET
PS7142-1B,-2B,PS7142L-1B,-2B
6, 8-PIN DIP, 400 V BREAK DOWN VOLTAGE
NORMALLY CLOSE TYPE
1-ch, 2-ch Optical Coupled MOS FET
−NEPOC
Series−
DESCRIPTION
The PS7142-1B, -2B and PS7142L-1B, -2B are solid state relays containing GaAs LEDs on the light emitting side
(input side) and normally close (N.C.) contact MOS FETs on the output side.
They are suitable for analog signal control because of their low offset and high linearity.
The PS7142L-1B, -2B have a surface mount type lead.
FEATURES
• 1 channel type (1 b output) or 2 channel type (1 b + 1 b output)
• Low LED operating current (I
F
= 2 mA)
• Designed for AC/DC switching line changer
• Small package (6, 8-pin DIP)
• Low offset voltage
• Ordering number of taping product : PS7142L-1B-E3, E4: 1 000 pcs/reel
: PS7142L-2B-E3, E4: 1 000 pcs/reel
<R>
<R>
• Pb-Free product
• Safety standards
• UL approved: File No. E72422
• BSI approved: No. 8245/8246
• CSA approved: No. CA 101391
APPLICATIONS
• Exchange equipment
• Measurement equipment
• FA/OA equipment
Document No. PN10285EJ02V0DS (2nd edition)
Date Published July 2006 NS CP(K)
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
1998, 2006
PS7142-1B,-2B,PS7142L-1B,-2B

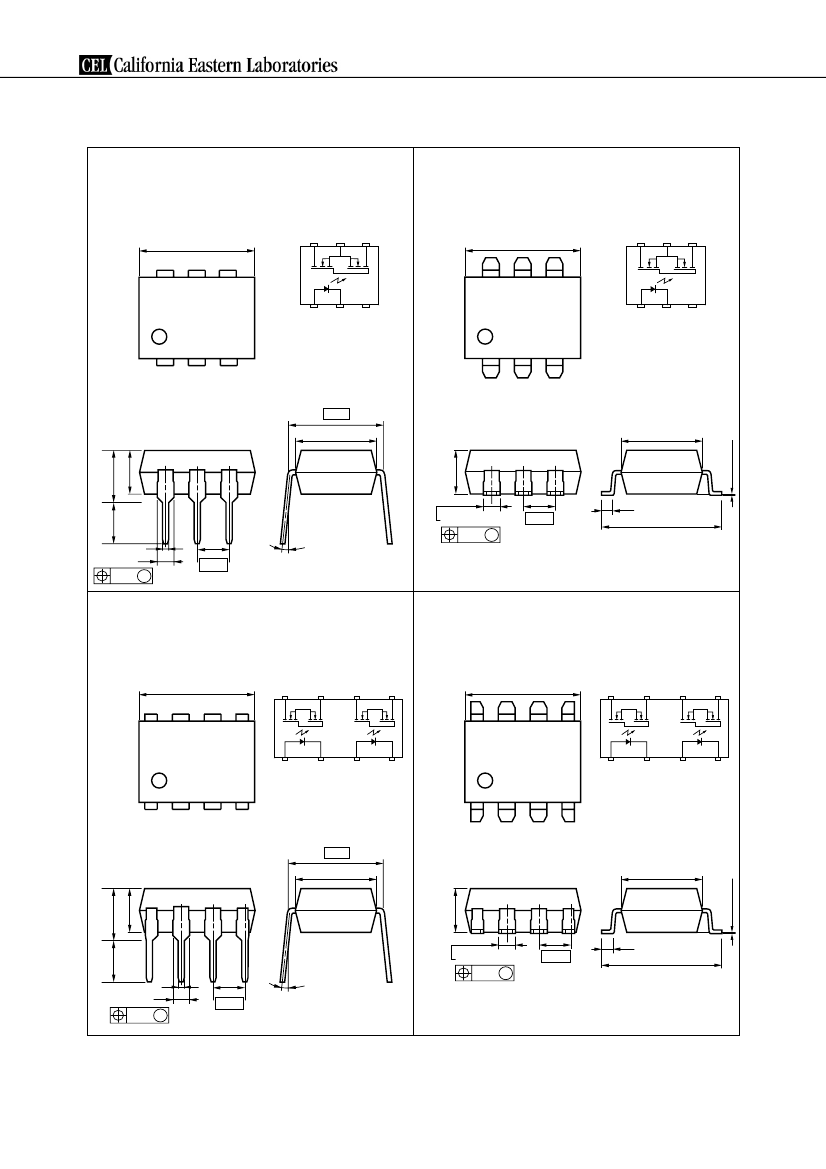

PACKAGE DIMENSIONS (in millimeters)
PS7142-1B
TOP VIEW
9.25±0.5
PS7142L-1B
TOP VIEW
9.25±0.5
6
5
4
6
5
4
1
1.
2.
3.
4.
5.
6.
2
3
1.
2.
3.
4.
5.
6.
1
2
3
LED Anode
LED Cathode
NC
MOS FET Drain
MOS FET Source
MOS FET Drain
LED Anode
LED Cathode
NC
MOS FET Drain
MOS FET Source
MOS FET Drain
7.62
6.5±0.5
6.5±0.5
3.3±0.3 4.15±0.3
3.5±0.3
3.5±0.3
1.34±0.1
0.25 M
0 to 15˚
2.54
2.54
0.9±0.25
9.60±0.4
0.5±0.1
1.34±0.1
0.25 M
PS7142-2B
TOP VIEW
9.25±0.5
PS7142L-2B
TOP VIEW
5
9.25±0.5
8
7
6
8
7
6
5
1
2
3
4
1
2
3
4
1. LED Anode
2. LED Cathode
3. LED Anode
4. LED Cathode
5. MOS FET
6. MOS FET
7. MOS FET
8. MOS FET
1. LED Anode
2. LED Cathode
3. LED Anode
4. LED Cathode
5. MOS FET
6. MOS FET
7. MOS FET
8. MOS FET
7.62
6.5±0.5
6.5±0.5
3.3±0.3 4.15±0.3
3.5±0.3
3.5±0.3
1.34±0.1
0.25 M
0 to 15˚
2.54
2.54
0.9±0.25
9.60±0.4
0.5±0.1
1.34±0.1
0.25 M
2
Data Sheet PN10285EJ02V0DS
0.10
+0.10
–0.05
0.10
+0.10
–0.05
PS7142-1B,-2B,PS7142L-1B,-2B
<R>
MARKING EXAMPLE
PS7142-1B
No. 1 pin
Mark
No. 1 pin
Mark
PS7142-2B
PS7142-1B
NL601
Country Assembled
Type Number
Assembly Lot
PS7142-2B
NL601
Country Assembled
Type Number
Assembly Lot
N L 6 01
Week Assembled
Year Assembled
(Last 1 Digit)
N L 6 01
Week Assembled
Year Assembled
(Last 1 Digit)
In-house Code
(L: Pb-Free)
Rank Code
In-house Code
(L: Pb-Free)
Rank Code
Data Sheet PN10285EJ02V0DS
3
PS7142-1B,-2B,PS7142L-1B,-2B
<R>
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
PS7142-1B
PS7142L-1B
PS7142L-1B-E3
PS7142L-1B-E4
PS7142-2B
PS7142L-2B
PS7142L-2B-E3
PS7142L-2B-E4
PS7142-1B-A
PS7142L-1B-A
PS7142L-1B-E3-A
PS7142L-1B-E4-A
PS7142-2B-A
PS7142L-2B-A
PS7142L-2B-E3-A
PS7142L-2B-E4-A
Embossed Tape 1 000 pcs/reel
Magazine case 50 pcs
PS7142-2B
Pb-Free
Magazine case 50 pcs
Packing Style
Safety Standard
Approval
Application Part
Number
*1
Standard products PS7142-1B
(UL, BSI, CSA
Embossed Tape 1 000 pcs/reel approved)
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10285EJ02V0DS
PS7142-1B,-2B,PS7142L-1B,-2B
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Ratings
Parameter
Symbol
PS7142-1B,
PS7142L-1B
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation
Peak Forward Current
MOS FET
Break Down Voltage
Continuous
Load Current
*2
*1
PS7142-2B,
PS7142L-2B
50
5.0
50
1
Unit
I
F
V
R
P
D
I
FP
V
L
mA/ch
V
mW/ch
A/ch
V
mA/ch
−
−
400
200
250
400
Connection A
Connection B
Connection C
I
L
Pulse Load Current
*3
I
LP
400
mA/ch
(AC/DC Connection)
Power Dissipation
Isolation Voltage
*4
P
D
BV
P
T
T
A
T
stg
560
1 500
610
−40
to +85
375
mW/ch
Vr.m.s.
Total Power Dissipation
Operating Ambient Temperature
Storage Temperature
850
mW
°C
°C
−40
to +100
*1
PW = 100
µ
s, Duty Cycle = 1%
*2
Conditions: I
F
≥
2 mA. The following types of load connections are available.
1
2
3
1
2
3
1
2
3
1
2
3
6
5
4
6
5
4
6
5
4
6
5
I
L
L
–
+ V
L
(DC)
Connection A
I
L
V
L
(AC/DC)
L
L
+
V
L
(DC)
–
I
L
Connection B
I
L
L
I
L
+ I
L
Connection C
+
V
L
(DC)
–
4
I
L
*3
PW = 100 ms, 1 shot
*4
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output
Pins 1-3 shorted together, 4-6 shorted together. (PS7142-1B)
Pins 1-4 shorted together, 5-8 shorted together. (PS7142-2B)
Data Sheet PN10285EJ02V0DS
5
