MICRO SWITCH™
Subminiature Basic Switches
ZX Series
Datasheet
MICRO SWITCH™ ZX Series
Subminiature Basic Switches

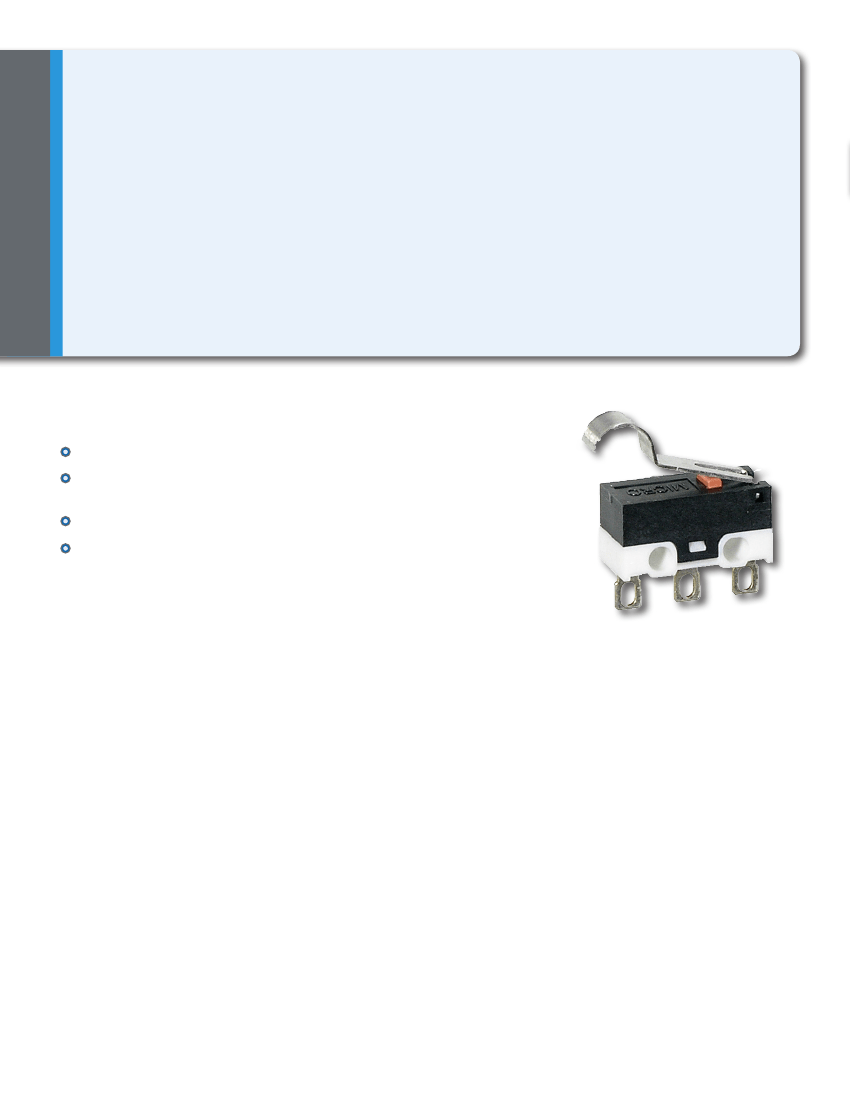

Honeywell’s MICRO SWITCH™ ZX Series is a subminiature snap-action switch from the family of Z series
subminiature basic switches. Although small in size, the ZX Series is rated for controlling electrical loads ranging from
logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac). The ZX subminiature switch
package is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals
to fulfill the requirements for electrical connectivity.
A wide variety of stainless steel levers are available and when combined with the subminiature package size, can
adapt the ZX Series to a wide range of applications. To enhance the versatility of ZX switches, the family is certified to
UL, cUL, ENEC, and CQC for worldwide use. The ZX Series is the right choice for a cost-effective subminiature switch
package.
What makes our switches better?
Designed to operate in a variety of applications
Current carrying capacity, up to 3 A, allows for a solution in
many applications where space is a premium
Cost-effective switch in a compact package
Subminiature switch package designed to meet a wide
range of temperature requirements
RIGHT SWITCH FOR THE RIGHT APPLICATION
RELIABILITY • ELECTRICAL RATING
2
sensing.honeywell.com
Features
and Benefits
SMALL PACKAGE SIZE
Subminiature package size
(6,5 mm x 12,8 mm [0.25 in x 0.50 in]) allows the
MICRO SWITCH™ ZX Series switch to fit in applications where other sensors or
switches are too large.
Enhanced performance in a compact package
WELL SUITED FOR POWER-DUTY AND LOGIC-LEVEL LOADS
ZX switch design helps assure control of limited
power-duty switching
with silver
contacts or
logic-level
(low voltage, and milliamperes) with gold-plated contacts.
DESIGN FLEXIBILITY
Designed with a
pin plunger
for actuation, the ZX Series is also available with
various styles of levers.
The optional levers expand the versatility of the switch
in the application. In addition, the ZX Series features a
variety of terminations
designed to provide flexibility for the electrical connectivity. Certified to
cUL, UL,
ENEC, and CQC
for global applications, as well as RoHS compliant.
WORLDWIDE AVAILABILITY
Entire family of ZX switches is available worldwide through Honeywell’s network.
Potential Applications
INDUSTRIAL
Circuit breaker box module interlock
Electric utility meter tamper switch
Tamper switch for computer modules
COMMERCIAL
Small residential appliances
ATM equipment
MEDICAL
Hospital bed pendant controls
Infusion pumps (end of travel)
Syringes (end of travel)
sensing.honeywell.com
3
ZX Series
PRODUCT NOMENCLATURE
ZX
Switch Type
10
Current
Rating
0.1 A 48 Vdc/125 Vac
0.2 A 60 Vdc
gold-plated contacts
1 A/3 A 125 Vac
silver contacts
E
Operating Force
3
(at pin plunger)
90 gf max.
150 gf max.
10
Terminal
Type
A
(Levers Mounted Internal)
01
Circuitry
—
Special
Designator
2
A special designator
is used to indicate
non-standard
features. This code
consists of three
alphanumeric
characters max.
A special designator
is required when
Terminal Type is “99”
and/or Actutor Type is “S”
Actuator Type
4
ZX
Series
Subminiature
10
Basic
40
Switch
C
E
10
20
30
50
60
99
Solder,
straight
PCB
(straight)
PCB
(snap-in)
PCB
(right side)
PCB
(left side)
SPECIAL
2
A
B
C
E
F
G
H
J
S
Pin plunger
Short straight
lever (10 mm)
Standard straight
lever (13 mm)
Sim. roller lever
(11,8 mm,
r 2,5 mm)
Roller lever
(10,7 mm,
Ø 4,8 mm)
Sim. roller lever
(10 mm,
r 1,3 mm)
Sim. roller lever
(15 mm,
r 1,3 mm)
Long straight
lever (30 mm)
01
SPDT
NOTES:
SPECIAL
2
1
Not all combinations of model code are available.
Please contact your Honeywell provider/representative for assistance.
2
Actuator Type “99” and/or Actuator Type “S” designates a special and requires a special designator at the end of the listing.
3
Operating force is measured at the plunger. Adding an actuator/lever will change the operating force. See pages 6 and 7 for operating forces.
4
Lever length dimension is measured as follows: Straight lever - from center line of lever pivot to end of lever;
Roller and simulated roller lever - from center line of pivot to center of roller diameter. See page 8 for dimension details.
4
sensing.honeywell.com
MICRO SWITCH™ Subminiature Basic Switches
Table 1. Specifications
Characteristic
Circuitry
Operating force
Termination
Sealing
ZX10 Series (Logic Level)
SPDT
90 g or 150 g @ plunger
PCB, solder
internal live parts protected to IP40,
IP00 due to exposed terminals
pin plunger, short flat lever, standard flat lever,
long flat lever, roller lever, short simulated roller lever,
standard simulated roller lever, long sim. roller lever,
special levers
UL, cUL, ENEC, CQC, RoHS compliant
-40 °C to 85 °C [-40 °F to 185 °F]
3,000,000 min. @ 120 cycles/minute max.
10,000 min. @ 30 cycles/minute max.
100 mΩ max.
100 MΩ min. (500 Vdc for one minute)
1500 VRMS for one minute
<0.5 mA leakage current
gold-plated silver
case, polyamide (nylon); cover, polyamide (nylon)
ZX40 Series (Power Duty)
SPDT
90 g or 150 g @ plunger
PCB, solder
internal live parts protected to IP40,
IP00 due to exposed terminals
pin plunger, short flat lever, standard flat lever,
long flat lever, roller lever, short simulated roller lever,
standard simulated roller lever, long sim. roller lever,
special levers
UL, cUL, ENEC, CQC, RoHS complaint
-40 °C to 85 °C [-40 °F to 185 °F]
3,000,000 min. @ 120 cycles/minute max.
10,000 min. @ 30 cycles/minute max.
50 mΩ max.
100 MΩ min. (500 Vdc for one minute)
1500 VRMS for one minute
<0.5 mA leakage current
silver
case, polyamide (nylon); cover, polyamide (nylon)
Actuators (levers 300 series
stainless steel)
Agency certification
Operating temperature
(manufacturer rated)
Mechanical endurance (cycles)
Electrical endurance (cycles)
Switch resistance (initial)
Insulation resistance (initial)
Dielectric strength (initial)
(between live parts and ground)
Contact material
Housing material
Note: Refer to engineering drawing for additional information.
Table 2. Electrical Ratings
Switch Option
ZX10 Series
(Gold-plated contacts)
ZX40 Series
(Silver contacts)
CQC (Asia-Pacific)
Per GB 15092-1
0.1 A, 125 Vac
0.1 A 48 Vdc, 0.2 A 60 Vdc
10,000 cycles
3 A, 125 Vac
10,000 cycles
ENEC (Europe)
Per IEC 61058-1
0.1 A, 125 Vac
0.1 A 48 Vdc, 0.2 A 60 Vdc
10,000 cycles
3 A, 125 Vac
10,000 cycles
UL, cUL (Americas)
UL 61058-1, File 12252
0.1 RA, 125 Vac
0.1 RA 48 Vdc, 0.2 RA 60 Vdc
10,000 cycles
3 RA, 125 Vac
10,000 cycles
Note: UL, cUL; CQC and ENEC “use temperature”; 0 °C to 55 °C [32 °F to 131 °F].
sensing.honeywell.com
5
