D2MQ-1-105-TR

Description
Basic / Snap Action Switches Detection Switch
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size671KB,4 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Environmental Compliance
Download Datasheet Parametric View All

D2MQ-1-105-TR Online Shopping

Suppliers Part Number Price MOQ In stock
D2MQ-1-105-TR - - View Buy Now

D2MQ-1-105-TR Overview

Basic / Snap Action Switches Detection Switch

D2MQ-1-105-TR Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerOMRON
Product CategoryBasic / Snap Action Switches
RoHSDetails
IlluminatedNon-Illuminated
Factory Pack Quantity1000
Unit Weight0.010582 oz

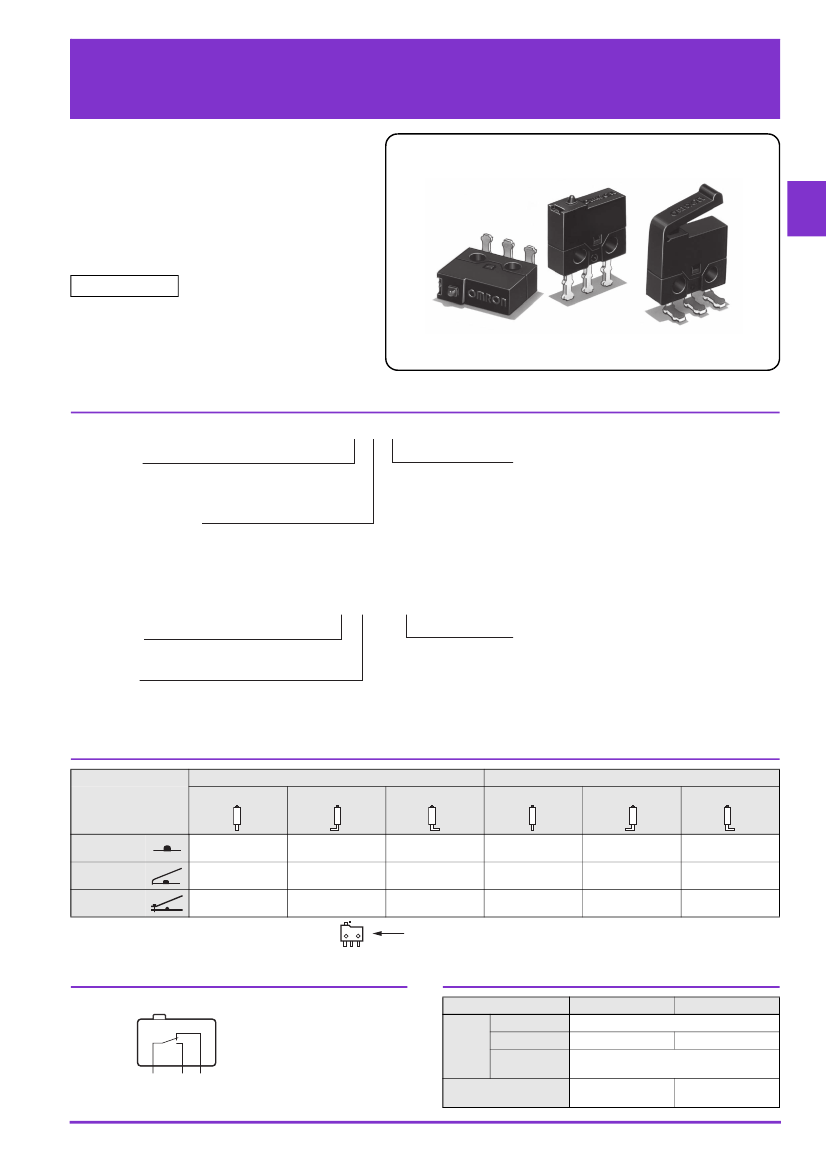

D2MQ
Subminiature Basic Switch
Ultra Slim Snap-action
Switch with 2.7 mm in depth
Excellent electrical characteristics and snap
action mechanism in spite of its ultra small size.
Ideal for applications where size is extremely
limited and high reliability is demanded.
RoHS Compliant
D
2
M
Q
Model Number Legend
1 2 3
D2MQ-1
@ @ @
1. Actuator
None : Pin plunger
L : Leaf lever
2.
Switching
capacity
None : 30 VDC 0.5A
-105 : 30 VDC 50mA
3. Terminals
None : PCB terminals (Straight)
-TL : PCB Terminals (Left-angled)
-TR : PCB Terminals (Right-angled)
<Hinge lever>
1 2
3
D2MQ-
@ @
- 1
@
3. Terminals
None : PCB terminals (Straight)
-L : PCB Terminals (Left-angled)
-R : PCB Terminals (Right-angled)
1. Actuator
4L: Hinge lever
2. Ratings
None : 30 VDC 0.5A
-105 : 30 VDC 50mA
List of Models
Ratings
Terminals *
Actuator
Pin plunger
Leaf lever
Hinge lever
*
D2MQ-1
D2MQ-1L
D2MQ-4L-1
D2MQ-1-TL
D2MQ-1L-TL
D2MQ-4L-1-L
D2MQ-1-TR
D2MQ-1L-TR
D2MQ-4L-1-R
D2MQ-1-105
D2MQ-1L-105
D2MQ-4L-105-1
-
-
D2MQ-4L-105-1-L
-
-
D2MQ-4L-105-1-R
Straight terminals
0.5 A
Left-angled terminals * Right angled terminals *
Straight terminals
50 mA
Left-angled terminals * Right angled terminals *

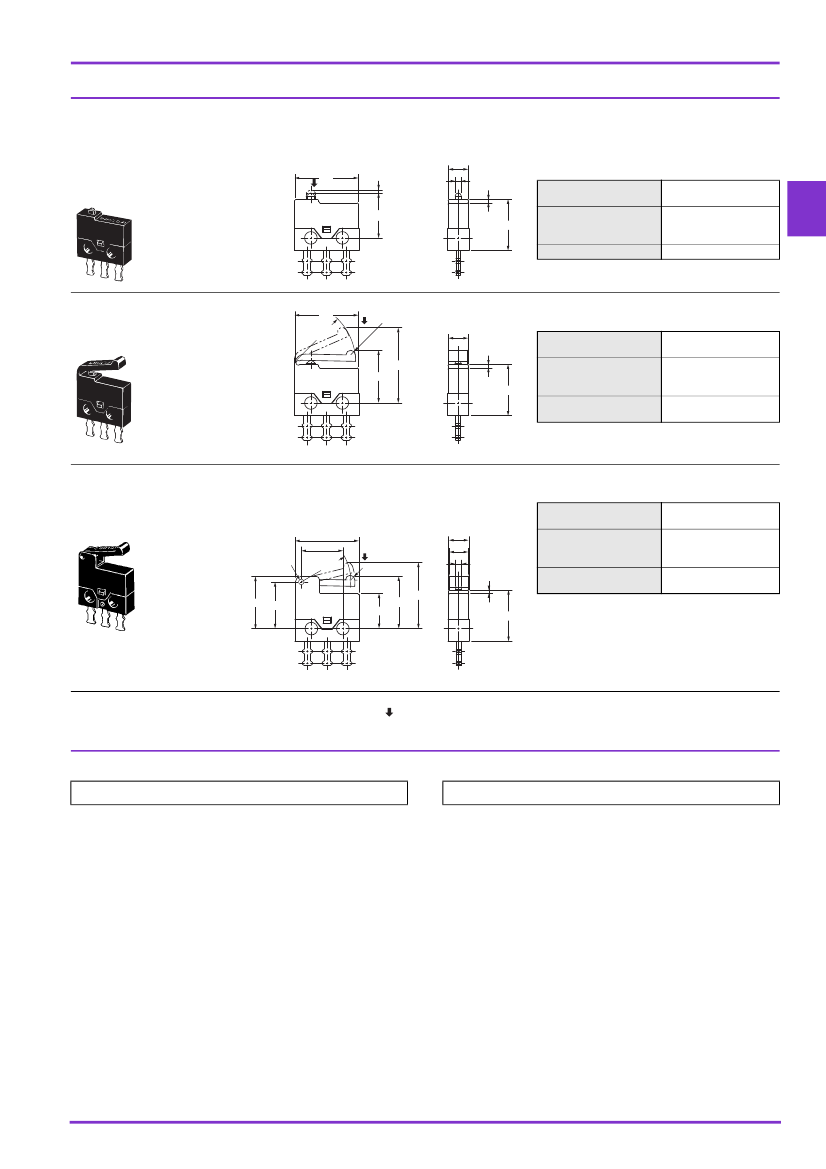

The terminal shape drawings indicate the shape when
the Switch is viewed from the direction of the arrow in the
drawing below.
Contact Form
●SPDT
Contact Specifications
Item
Model
Specification
Contact
Material
Gap
(standard value)
Silver plated
0.15 mm
5 VDC 50 mA
5 VDC 5 mA
0.5 A models
Rivet
Gold plated
50 mA models
COM
NO NC
Minimum applicable load
(see note)
1
