02/11/2015
www.crouzet.com

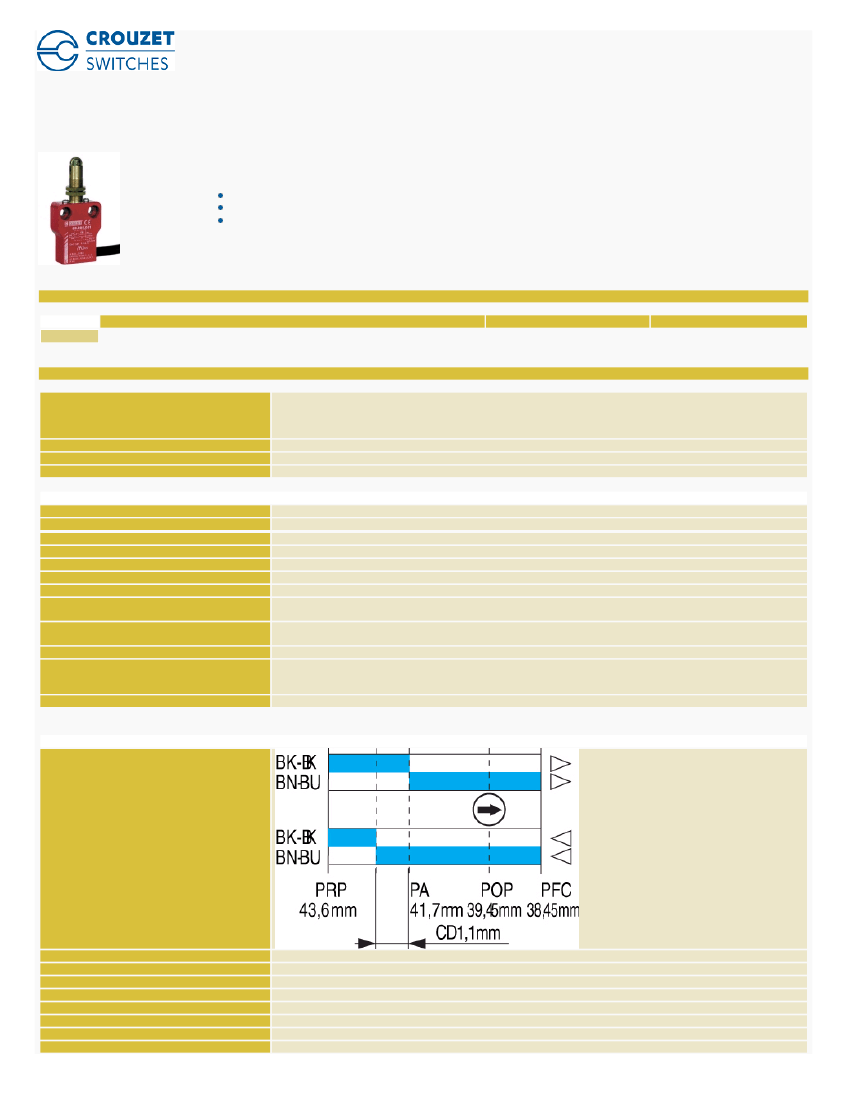

83880 with cable output Roller plunger - metal with threaded barrel Part number 83882102
IP 66/67
Metal case
cUL approval
Part numbers
Type
83 882 102
Roller plunger - metal with threaded barrel
Characteristics
Standard
Type of output
Cable length 2 m
Specifications
Conformity to standards
IEC / EN 60947.5.1
Dimensional conformity : NFC 63145
Low voltage directive : 73/23/EEC and 93/68/EEC
Electric shock protection : NFC 20030 or IEC 60536 class 1, degree of pollution 3
Protection against electric shocks
Degree of protection IEC 60529
Degree of protection according to NEMA 250
Type 1, 3, 4, 6, 13
Electrical characteristics
Connection
Operating temperature (°C)
Assigned impulse voltage (Uimp) - V
Assigned insulation voltage Ui (V)
Thermal current I (A)
Low-load switching - Minimum voltage (V)
Low-load switching - Minimum current (mA)
Assigned working characteristics (EN 60 947.5.1, UL
508)
Use category according to IEC 947.5.1
Use category according to UL 508
Electrical protection
-25 →+70 °C
2500
500
10
10
100
A300 = AC15 250 V 6 A
Q150 = DC13 24 V 8 A
AC15=250 V/6 A
DC13=24 V/8 A
A300 - Q150
Integral earth wire
Short-circuit protection device : IEC/EN 60947.5.1
Fuse 6 AgC
UL 508, UL 50
Approvals
Mechanical characteristics
Sequence
Snap action
Minimum operating force (N)
Minimum operating force (Nm)
Minimum total travel force (N)
Minimum total travel force (Nm)
Min. positive opening travel (N)
Min. positive opening travel (Nm)
Mechanical life (millions of operations)
Vertical approach speed
10
-
30
-
28
-
10
1 mm/min →0,5 m/s
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Horizontal approach speed (30° cam)
Weight (g)
1 mm/min →0,3 m/s
220
www.crouzet.com

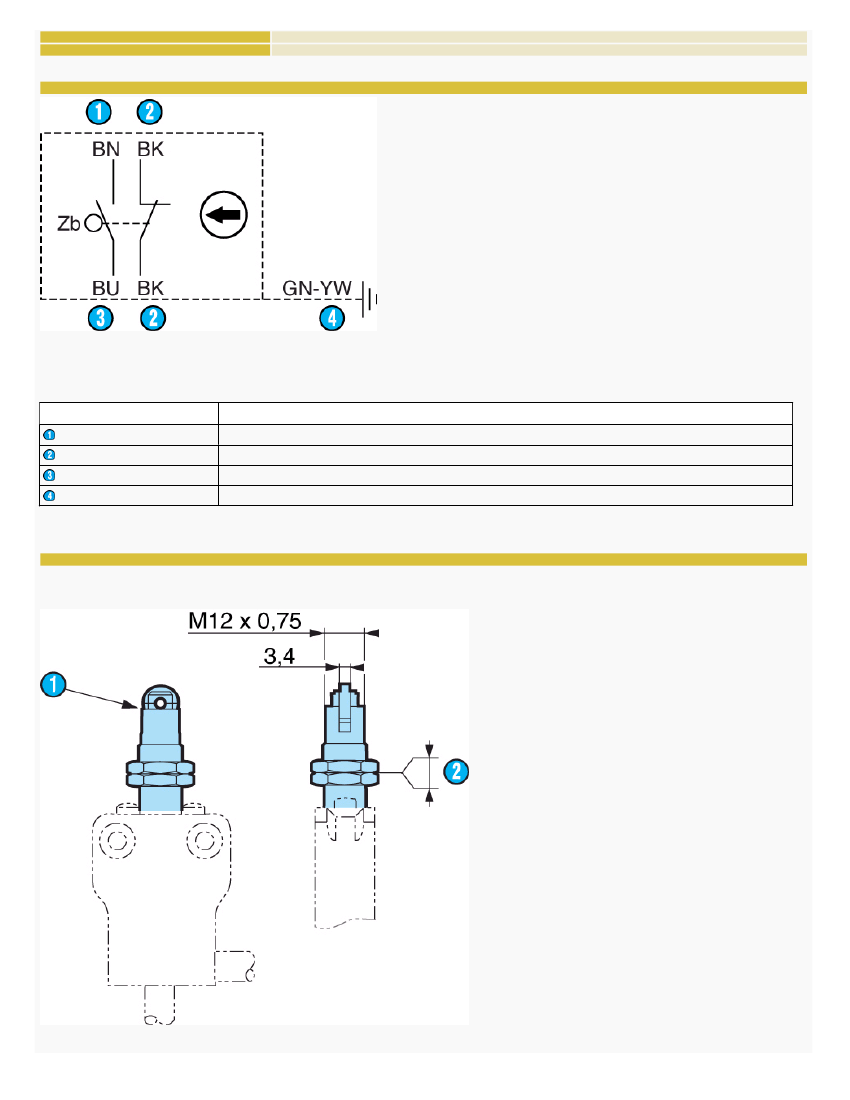

Principles
Function
Four-terminal double break two-way contact element (form Zb) with positive opening NC contacts. The 2 moving contacts are electrically isolated from one another.
N
o
Legend
Brown
Black
Blue
Green-yellow

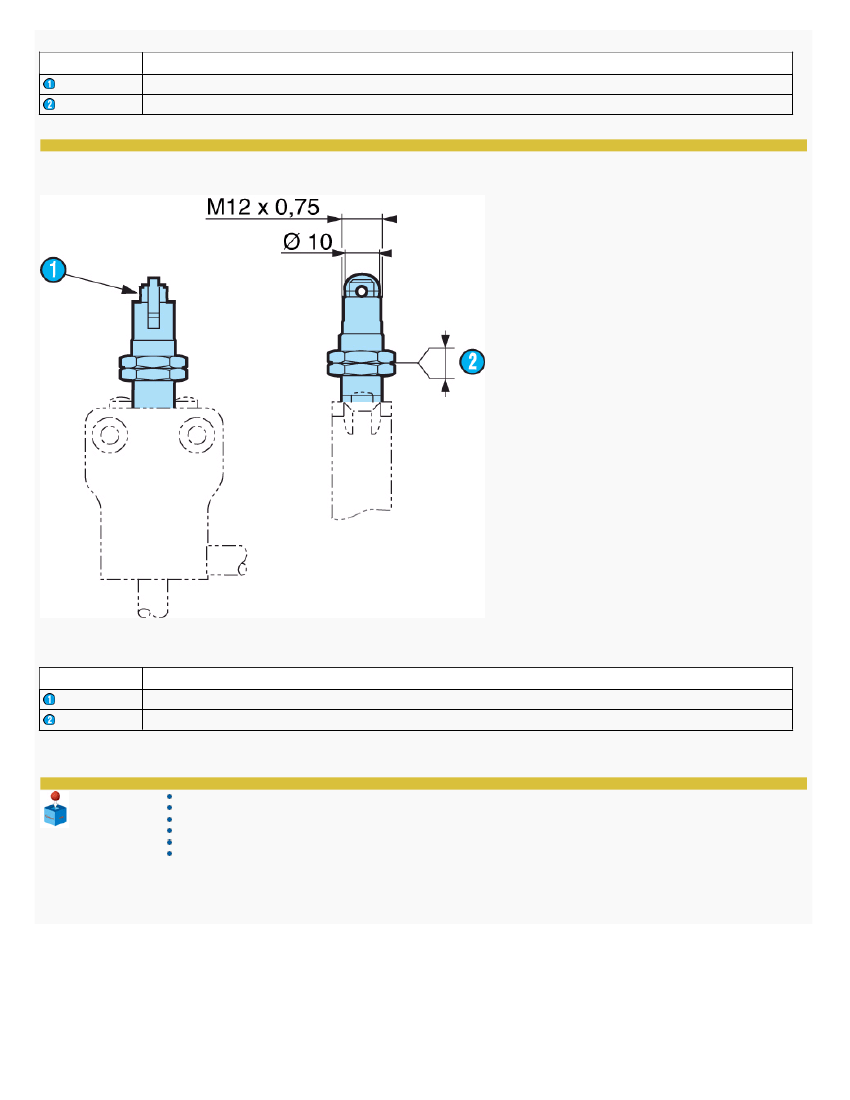

Dimensions (mm)
Product
83 882 1
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
83 882 0
www.crouzet.com
Legend
POP marking
Max.tightening thickness 10.5
N
o
Dimensions (mm)
Product
83 886 1
83 886 0
N
o
Legend
POP marking
Max.tightening thickness 10.5
Product adaptations
Contact type
Rear output
Protective scraper seal
Length of cable/connector/stripping
Connector output
Low level contact
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
