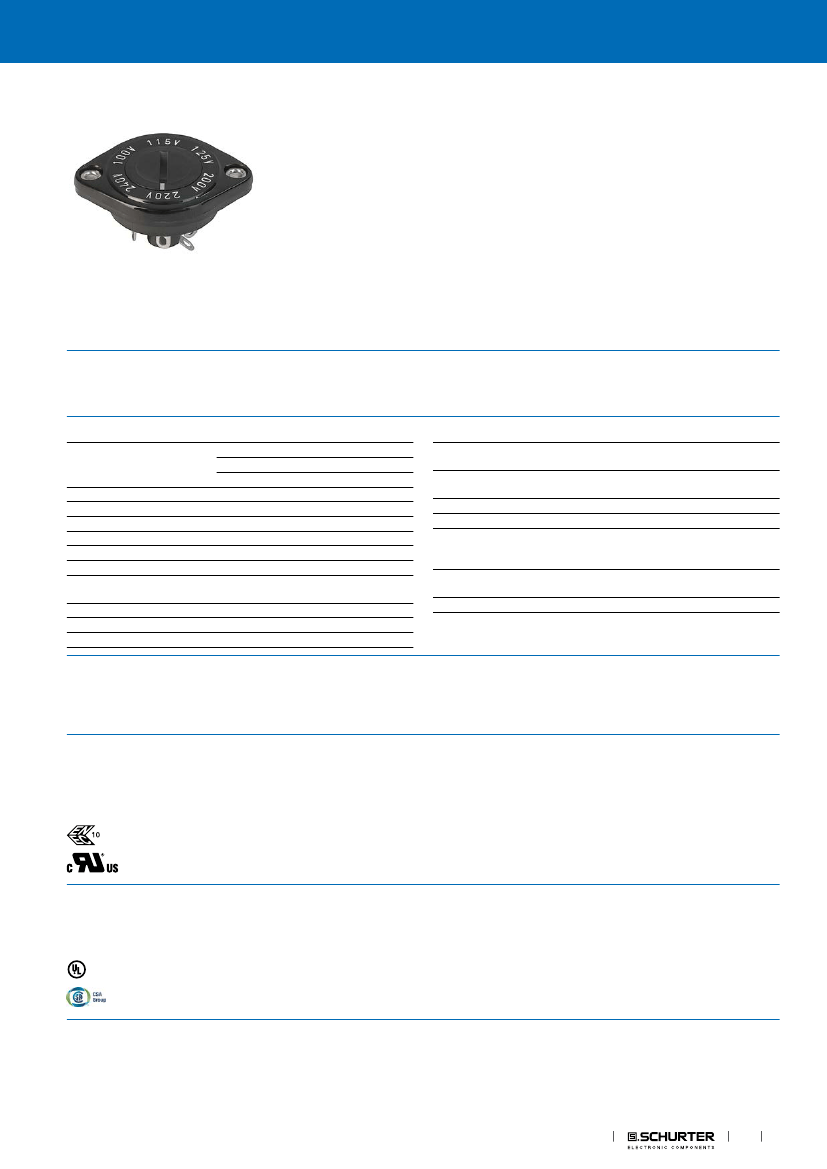

Voltage Selector
https://www.schurter.com /PG04
SWP
Voltage selector switch, 6 stages, step switch, panel mounting
Approvals and Compliances
Description
- Voltage Selector , 6 stages
- Step switch
- Solder terminals
Technical Data
Ratings
␣
␣
Mounting
Fastening
Terminal
Number of Stages
Lifetime
Degree of Protection
Allowable Operation Tempe-
rature
Climatic Category
Material: Socket
Weight
IEC: 6.3 A / 250 VAC; 50 Hz
UL: 10 A / 250 VAC; 60 Hz
CSA: 8 A / 250 VAC; 60 Hz
Panel Mount from front side
Screw-on mounting
Solder
6
300 operating cycles (without load)
IP 40
-40 °C to 85 °C
25/85/21 acc. to IEC 60068-1
Thermoplastic, black, UL 94V-0
16.5 g
Solderability
Resistance to Soldering Heat
Insulation Resistance
Contact Resistance
Dielectric Strength
350 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 2
350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
> 10'000MΩ (500VDC; 1min)
< 10 mΩ at 20 mV
> 2.5kVAC between L-N
> 4kVAC between L/N-PE
(1min; 50Hz)
> 5mm
> 8mm between L/N-PE
acc. to IEC 60068-2-6, test Fc
Clearance and Creepage Di-
stance
Resistance to Vibration
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: SWP
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40040798
UL File Number: NRNT2&8.E72661
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 508
CSA C22.2 no. 14
Description
Industrial control equipment
Fuseholder general requirements
Fuses
1
SWP
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
https://www.schurter.com /PG04
Voltage Selector
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
China RoHS
REACH
SCHURTER AG
SCHURTER AG
Dimension [mm]
Panel mounting hole
ø 6.4
47 mm
30
.2
±0
6.7
5
22
28.7
3.6
38
ø 3.2
ø 29.5
125V
0V
15
11
0V
25
38
47
Diagrams
1
6
5
4
2
3
2
Fuses
35
0V
20
0V
220V
Voltage Selector
https://www.schurter.com /PG04
SWP
All Variants
Letterings
Stage 1
110 V
␣
100 V
100 V
100 V
␣
100 V
100 V
100 V
4
Ω
110 V
100
100
1
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-
Check-SCHURTER
Stage 2
125 V
␣
115 V
115 V
115 V
100 V
110 V
120 V
110 V
8
Ω
220 V
120
115
2
Stage 3
145 V
␣
127 V
120 V
125 V
115 V
220 V
200 V
120 V
16
Ω
230 V
200
230
3
Stage 4
160 V
␣
␣
220 V
200 V
220 V
240 V
220 V
125 V
␣
␣
208
240
4
Stage 5
220 V
␣
220 V
240 V
220 V
240 V
␣
230 V
230 V
␣
␣
230
␣
5
Stage 6
250 V
␣
240 V
␣
240 V
␣
␣
240 V
240 V
␣
␣
0
␣
0
0033.1101
0033.1104
0033.1108
0033.1109
0033.1113
0033.1118
0033.1120
0033.1127
0033.1130
0033.1133
0033.1134
0033.1136
0033.1137
0033.1140
█
Order Number
Packaging Unit
25 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Fuses
3
