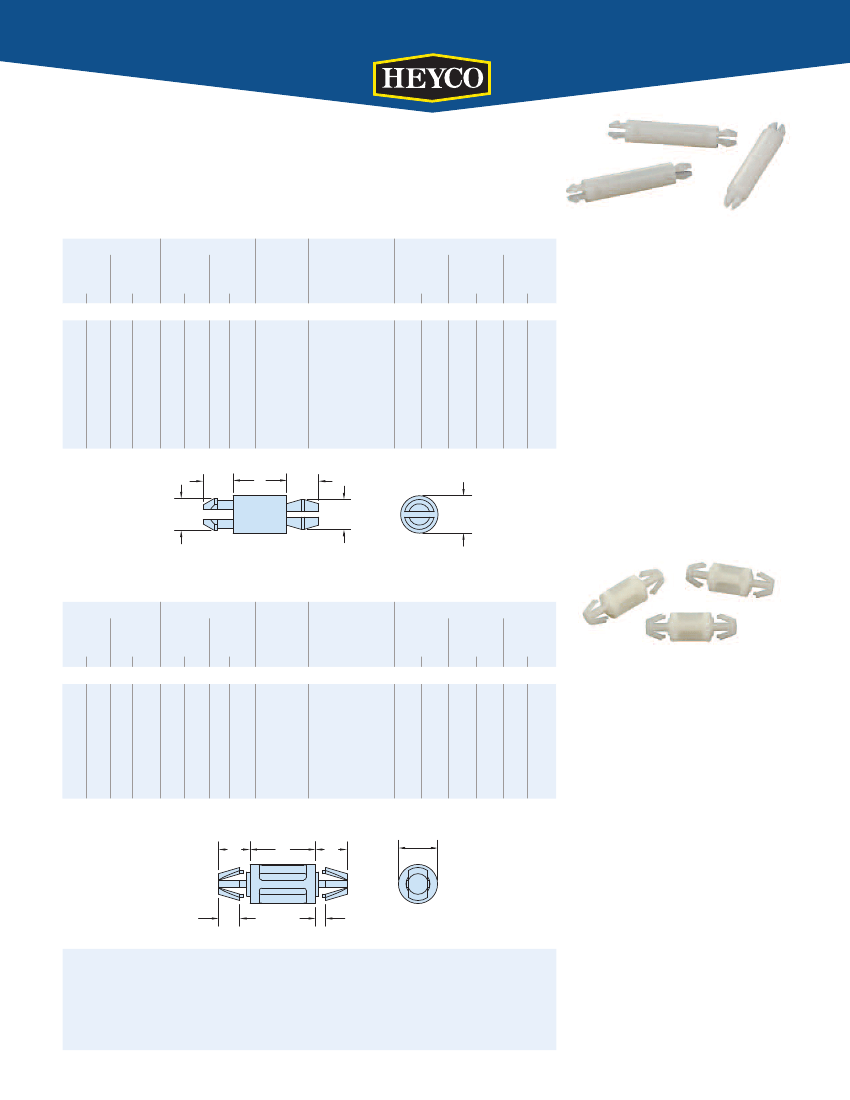

Heyco Nylon PCB Supports
®
Shorty PCB Supports
PANEL DIMENSIONS
Maximum Mounting
Thickness
Hole
Diameter
in. mm. in. mm.
PCB DIMENSIONS
Maximum Mounting
Thickness
Hole
Diameter
in. mm. in. mm.
PART NO.
Natural
DESCRIPTION
A
Spacing
PART DIMENSIONS
B
C
Head
Foot
Length
Length
mm.
in. mm.
in. mm.
in.
SS B 1/8
SS B 3/16
SS B 1/4
SS B 5/16
SS B 3/8
SS B 7/16
SS B 1/2
SS B 9/16
SS B 5/8
SS B 3/4
.13
.19
.25
.31
.38
.44
.50
.56
.63
.75
SS B Series
3715
3716
3717
3718
3719
3720
3721
3722
3723
3724
3,2
4,8
6,4
7,9
9,5
11,1
12,7
14,3
15,9
19,0
•
Locking spacer
eliminates the need
for additional hardware
in mounting
P.C. Boards.
•
Ideal for mounting in neutral chassis
or stacking in tiers.
•
Sizes for standard and metric
mounting holes.
.06
1,6
.125
3,2
.06
1,6 .125 3,2
.15
3,8
.14
3,6
Standard color natural.
C
n.15
(3,8mm)
A
B
n.14
(3,6mm)
n.18
(4,6mm)
Metric PCB Supports
PANEL DIMENSIONS
Maximum Mounting
Thickness
Hole
Diameter
in. mm. in. mm.
PCB DIMENSIONS
Maximum Mounting
Thickness
Hole
Diameter
in. mm. in. mm.
PART NO.
Natural
DESCRIPTION
A
Spacing
PART DIMENSIONS
B
C*
Head
Foot
Length
Length
mm.
in. mm.
in. mm.
in.
SS M 3
SS M 4
SS M 6
SS M 8
SS M 10
SS M 12
SS M 14
SS M 16
SS M 18
.12
.16
.24
.32
.39
.47
.55
.63
.71
SS M Series
3650
3651
3653
3654
3655
3656
3657
3658
3659
3,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
.06
1,6
.157
4,0
.06
1,6 .157 4,0
.19
4,8
.13
3,2
Standard color natural.
*Extension beyond .062˝ (1,6 mm) thick panel.
B
A
B
n .24
(6,1mm)
*C
.06
(1,5mm)
Material
Flammability Rating
Temperature Range
Nylon 6/6
94V-2
