D2AW-EL002D

Description
Basic / Snap Action Switches PCB 12VDC W/posts Rt SPST-NC Pin Plunger
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size1MB,9 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Environmental Compliance
Download Datasheet Parametric View All

D2AW-EL002D Online Shopping

Suppliers Part Number Price MOQ In stock
D2AW-EL002D - - View Buy Now

D2AW-EL002D Overview

Basic / Snap Action Switches PCB 12VDC W/posts Rt SPST-NC Pin Plunger

D2AW-EL002D Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerOMRON
Product CategoryBasic / Snap Action Switches
RoHSDetails
TypeSealed Ultra Subminiature Basic
Contact FormSPST
ActuatorPlunger, Pin
Current Rating100 mA
Voltage Rating DC12 VDC
Operating Force1 N
Termination StyleSolder Pin
IP RatingIP67
Operating Temperature Range- 40 C to + 85 C
IlluminatedNon-Illuminated
Maximum Operating Temperature+ 85 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity500
Unit Weight0.024692 oz

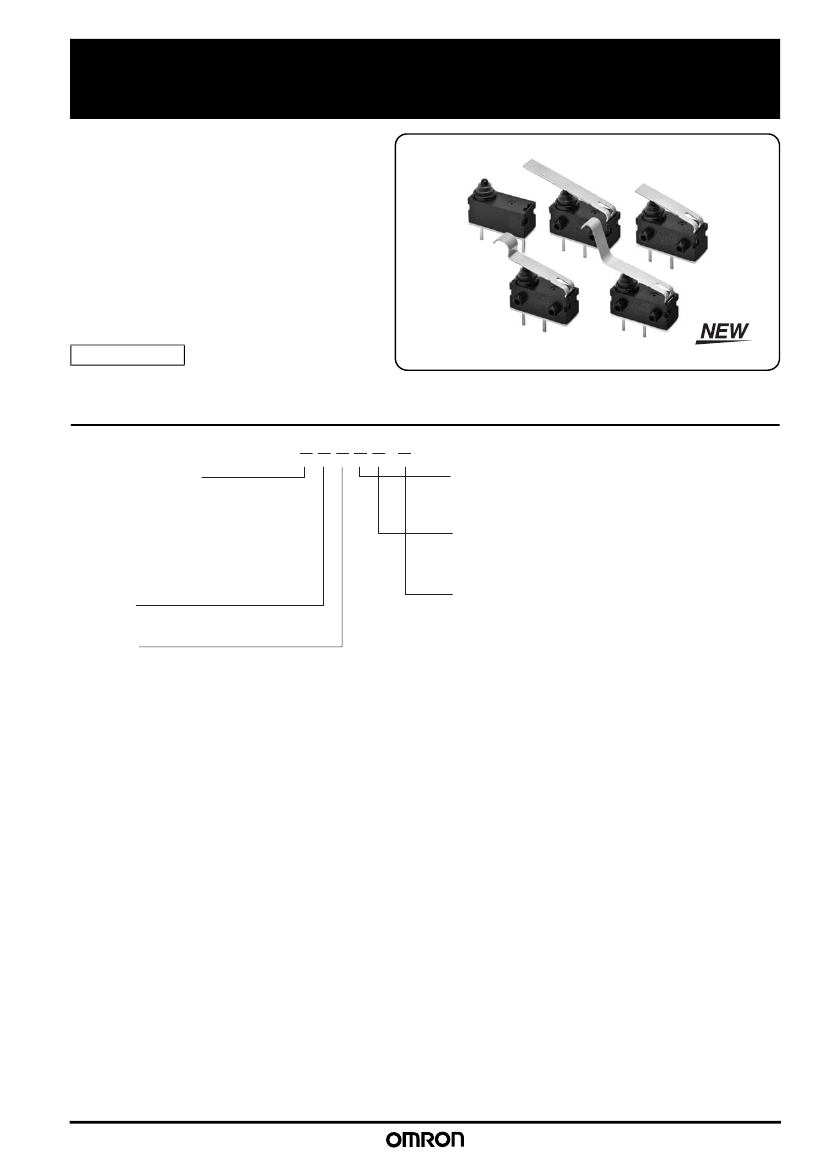

D2AW
Sealed Ultra Subminiature Basic Switch
Long stroke seal switch with
high reliability and high
insulation performance
<Clipping contact> Double reliability by twin
contacts (=Clipping contact). Foreign materials
are cleaned out by the sliding contacts.
<Quiet operation> Quiet operating sound by
sliding contact construction is needed for high
grade car.
<High insulation performance> High performance
of Insulation resistance by unique contact structure.
RoHS Compliant
Model Number Legend
D2AW-
@ @ @ @ @
-
@
1
2
3
4
5
6
1. Mounting Structure
A: Without posts
BR: Long post on right
BL: Long post on left
C: M3-screw mounting model
ER: Short post on right
EL: Short post on left
4. Contact Form
2: SPST-NC
3: SPST-NO
5. Terminals
D: Straight PCB terminals
H: Solder terminals
6. Option Code
2. Ratings
0: 0.1 A at 12 VDC
3. Actuator
0: Pin plunger
5: Long straight leaf lever
6: Leaf lever
7: Simulated roller leaf lever
8: Long leaf lever
Customized Code
1
