59065-020: DescriptionProximity Sensors SENSOR PROXIMITY; CategoryThe sensor Sensor/transducer; File Size547KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

59065-020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59065-020	-	-	View	Buy Now

59065-020 Overview

Proximity Sensors SENSOR PROXIMITY

59065-020 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body height	38.1 mm
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Package Shape/Form	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,PHOTOELECTRIC
Base Number Matches	1

Preview

Download Datasheet

View All

Reed Sensors

Firecracker > 59065

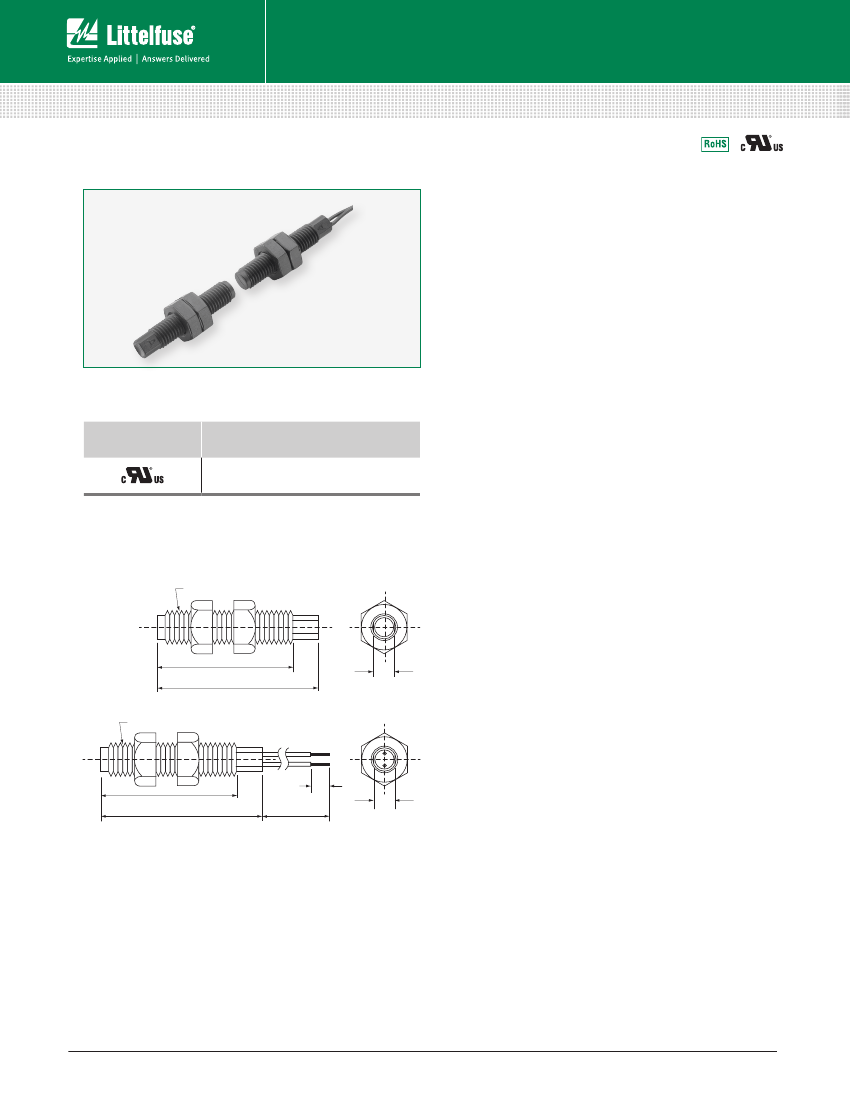

59065 5/16” Plastic Threaded Barrel Sensor + 57065 Actuator

Description

The 59065 is a small plastic barrel sensor with a 5/16” x 24 thread, 38.1mm

(1.500”) long with a choice of normally open, normally open high voltage,

normally closed or change over contacts. It is capable of switching up to

265Vac/300Vdc at 10VA. It functions best with the 57065 actuator.

Note: The 57065 Actuator is sold separately.

Features

• Two-part magnetically operated

proximity sensor

• Threaded barrel with retaining nuts

• Available as M8 (57070/59070) or

5/16 (57065/59065) size options

• Customer defined sensitivity option

• Choice of cable length and

connector

Agency Approvals

Agency

Agency File Number

E61760

Note: Contact Littelfuse for specific agency approval ratings.

Benefits

• Simple installation and adjustment

using supplied retaining nuts

• Operates through non-ferrous

materials such as wood, plastic or

aluminium

• Excellent for switching micro-

controller logic level loads

• No standby power requirement

Dimensions

Dimensions in mm (inch)

M8 x 1.25 (57070)

5/16 x 24THD (57065)

Applications

Actuator

• Position and Limit Sensing

• Security System Switch

• Industrial Process Control

• Linear Actuators

31.75

(1.250)

38.10

(1.500)

M8 x 1.25 (59070)

5/16 x 24 THD (59065)

5.56

(.219)

Sensor

6.35 NOM.

(.250)

300±10.00

(11.81±.394)

Different cable options available.

5.56

(.219)

31.75

(1.250)

38.10

(1.500)

Revised: 02/12/17

Specifications are subject to change without notice.

littelfuse.com
