NPC-1210 Series
NovaSensor Medium/Low
Pressure Sensors
Features
• High sensitivity
• High accuracy
• Interchangeable
• Temperature compensated 0°C to 60°C (32°F to
140°F)
• PCB mountable package
• DIP package
• Solid-state reliability
• Individual device traceability
Applications
• Industrial automation
• Air flow monitors
• Process control
• Medical equipment
• Underground cable leak detection
• Ventilation
• Respirator monitoring
Amphenol
Advanced Sensors
NPC-1210 Series Specifications
Description
Pressure Sensor
1

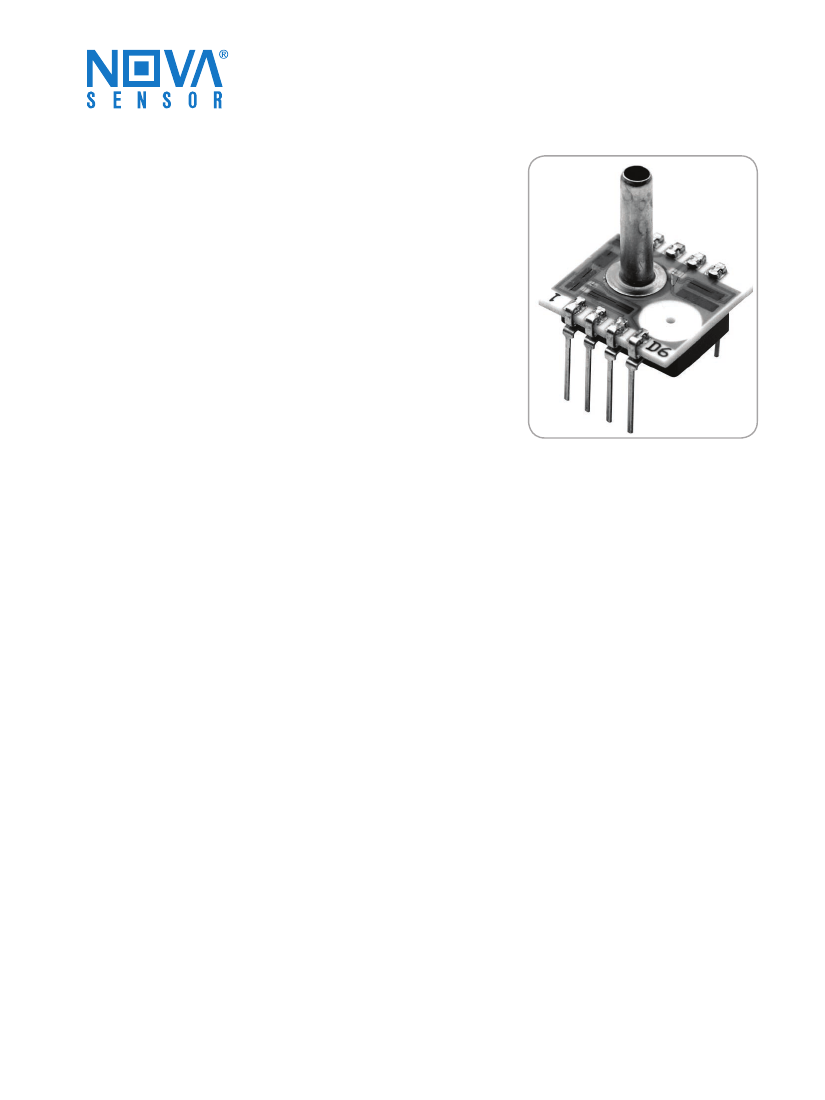

The NPC-1210 series of solid-state pressure sensors
are designed to provide a cost effective solution for
applications that require calibrated performance over
a wide temperature range. Packaged in a dual-in-line
configuration, the NPC-1210 Series is intended for
printed circuit board mounting. Optional pressure port
and lead configurations provide superior flexibility in
low profile applications where pressure connection
orientation is critical.
The NPC-1210 series is based on NovaSensor’s
advanced SenStable
®
piezoresistive sensing
technology. Silicon micromachining techniques
are used to ion implant piezoresistive strain gages
into a Wheatstone bridge configuration. The NPC-
1210 Series offers the added advantage of superior
temperature performance over the temperature
compensated range of 0°C to 60°C (32°F to 140°F). A
gain set resistor is included to normalize the FSO for
field interchangeability.
-Out
+
-
A2
R
-
1.5 mA
4
+In
Gain
Set
5
6
100 kW
3.012V
Amplified FSO
100 kW
R
-
I
-In
7 8 2
NC
NC
Lead
1
2
3
4
5,6
7,8
+Out
3
A3
+
+
Ground
Connection
-Out
-In
+Out
+In
Gain-Set Resistor
No Connection

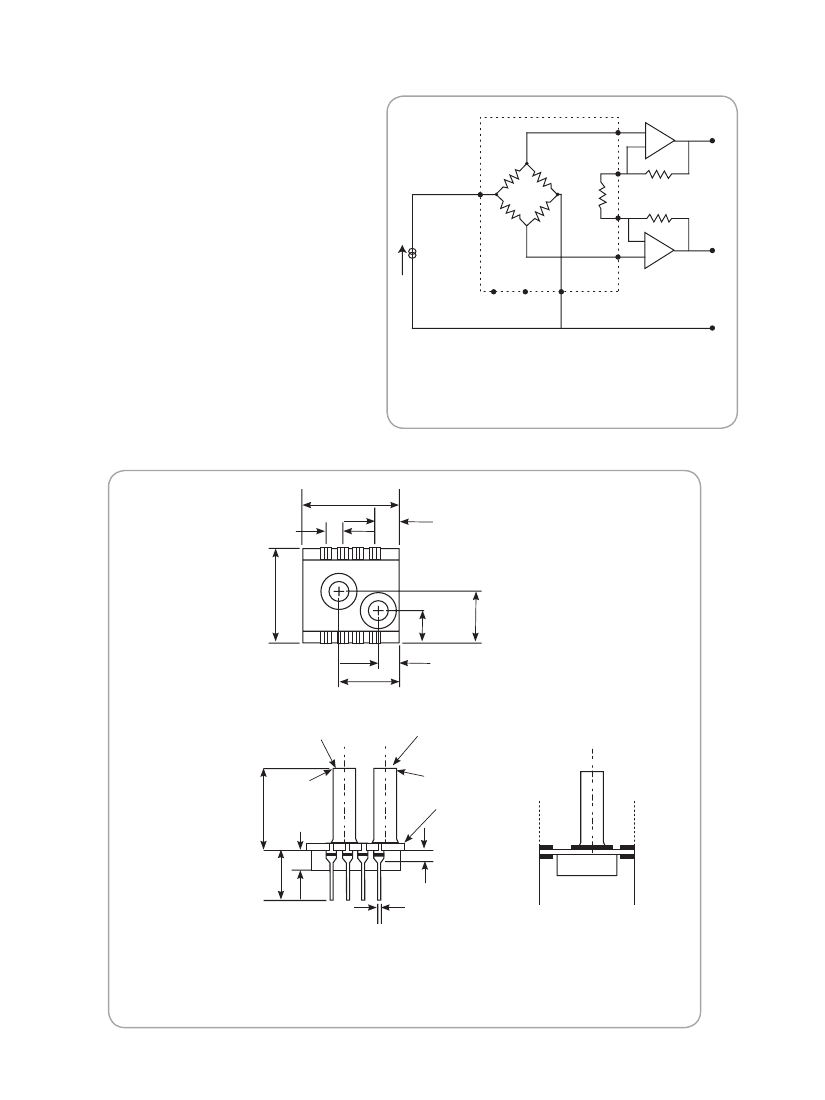

NPC-1210 Series Schematic Diagram
0.60 in (15.24 mm)
0.1 in
(2.54 mm)
0.6 in (15.24 mm
G6
0.15 in
(3.8 mm)
8 7 6 5
0.2 in
(5.1 mm)
0.32 in
(8.1 mm)
1
2
3
4
0.12 in (3.05 mm)
0.37 in (9.4 mm)
Diameter 0.127 in
(3.23 mm), Two tubes
Used for positive differential (P2)
Not used
for absolute
0.167 in
(4.2mm)
Not used
for gauge (P1)
Ceramic
substrate
8X 0.07 in
(1.78mm)
(1)
8X 0.34 in
(8.6 mm)
8X 0.02 in (0.51 mm)
1. All dimensions are for reference only.
2. Tube length: L = 0.49 in (12 mm), S = 0.33 in (8.3 mm), N = No tube
3. Lead pins can be either in the same or the opposite direction of the pressure tube. Option (1) has the leads
in the "Up" position, the same direction as the tube. Option (3) has the leads in the "Down" position, the
opposite direction from the tube.
4. Gauge and differential pressure devices are calibrated by applying pressure to the positive differential port (P2)
and venting to atmosphere the reference port (P1). Absolute pressure devices use only P1 to apply vacuum or
pressure.
NPC-1210 Series Package Diagram
L, S (See Notes)
(3)
NPC-1210 Series Specifications
Medium Pressure Sensors
Pressure Ranges
• Gauge and differential:
• 5 psi (34 kPa, 0.34 bar)
• 15 psi (100 kPa, 1.0 bar)
• 30 psi (210 kPa, 2.1 bar)
• 50 psi (340 kPa, 3.4 bar)
• 100 psi (690 kPa, 6.9 bar)
• Absolute:
15 psi (100 kPa, 1.0 bar)
•
30 psi (210 kPa, 2.1 bar)
•
50 psi (340 kPa, 3.4 bar)
•
100 psi (690 kPa, 6.9 bar)
•
• For other pressure ranges, please contact NovaSensor.
Parameter
Environmental
Temperature Range
Operating
Compensated
Storage
Mechanical
Weight
Media
Compatibility
Positive
differential and
gauge ports
Absolute.
negative
differential ports
Parameter
2.5
g
(0.005
lb)
7
–40 to 125
0 to 60
–55 to 150
°C
°C
°C
(-40° to 257°F)
(32°F to 140°F)
(–67 to 302 °F)
Value
Units
Notes
Weight
Media
Compatibility
Positive
differential and
gauge ports
Absolute.
negative
differential ports
Parameter
2.5
g
Compatible with
exposed materials
Dry gases
only
Dry gases
only
Units
Minimum
Typical
Maximum
Notes
Low Pressure Sensors
Pressure Ranges
• Gauge and differential:
• 10 in H
2
0 (2.5 kPa, 0.025 bar)
• 1 psi (6.9 kPa, 0.069 bar)
Parameter
Environmental
Temperature Range
Operating
Compensated
Storage
Mechanical
(0.005
lb)
7
–40 to 125
0 to 60
–55 to 150
°C
°C
°C
(-40° to 257°F)
(32°F to 140°F)
(–67 to 302 °F)
Value
Units
Notes
Compatible with
exposed materials
Dry gases
only
Dry gases
only
Units
Minimum
Performance Parameters *
FSO 10 inH
2
O
FSO 1 psi
Zero Pressure
Output
Linearity
mV
mV
mV
%FSO
%FSO
W
W
%FSO
%FSO
%/°C
25
50
-2
-0.5
-0.1
2500
4000
-1.0
-1.25
—
50
75
—
—
—
4000
5000
—
—
0.22
70
110
2
0.5
0.1
6000
6000
1.0
1.25
—
3, 5
3, 5
5
2, 3
2, 3
3
4
Typical
Maximum
Notes
Pressure
Hysteresis
Input
Impedance
Output
Impedance
Thermal
Accuracy–Span
Thermal
Accuracy–Zero
Temperature
Coefficient–
Resistance
Performance Parameters *
FS Output (FSO)
Zero Pressure
Output
Linearity
Pressure
Hysteresis
Input
Impedance
Output
Impedance
Thermal
Accuracy–Span
Thermal
Accuracy–Zero
Temperature
Coefficient–
Resistance
Thermal
Hysteresis–Zero
Input Excitation
Pressure
Overload
mV
mV
%FSO
%FSO
W
W
%FSO
%FSO
%/°C
75
-2
-0.1
-0.1
2500
4000
-0.5
-0.5
—
100
—
—
—
4000
5000
—
—
0.2
150
2
0.1
0.1
6000
6000
0.5
0.5
—
3, 5, 8
3, 5, 8
5
2, 3
3
4, 8
Thermal
Hysteresis–Zero
Input Excitation
Pressure
Overload
%FSO
mA
psi (bar)
—
—
5 (0.34)
0.1
1.5
—
—
2.0
—
5
6
%FSO
mA
Rated
—
—
—
0.1
1.5
—
—
2.0
3X
5
6
* 1. Supply current = 1.5 mA and ambient temperature = 77°F (25°C),
unless otherwise noted. Gauge and differential pressure devices are calibrated
by applying pressure to the positive differential port (P2) and venting to
atmosphere the reference port (P1).
2. Output span of unamplified sensor.
3. Compensation resistors are an integral part of the sensor package;
no additional external resistors are required. Pins 7 and 8 must be kept open.
The NPC-1210 is interchangeable only when used with the gain set resistor
shown in the schematic diagram. Maximum gain-set resistor mismatch is 2%.
4. Best fit straight line.
5. Temperature range 32°F to 140°F (0°C to 60°C), reference to 77°F (25°C).
6. 3X or 200 psi (13.78 bar) maximum, whichever is less.
7. Exposed materials are pyrex, ceramic, silicon, epoxy, RTV, and stainless steel.
8. 5 psi (0.34 bar) spec.: Linearity: 0.25 ±%FSO, TC-span:
0.75 ±%FSO, TC-zero: 0.75 ±%FSO. otherwise noted.
NPC-1210 Series Specifications
Ordering Information
Warranty
The code number to be ordered may be specified as follows:
NPC-1210 (Medium Pressure)
Code
Pressure Range
005
5 psi (0.3 bar)
015
15 psi (1 bar)
030
30 psi (2 bar)
050
50 psi (3.4 bar)
100
100 psi (7 bar)
Code
Type
D
Differential
A
Absolute
G
Gauge
Code
Lead Configurations
1
Up
3
Down
Code
Tube Options
L
Long
S
Short
N
None *
NPC-1210 - ___ -
number
___ -
___ -
___
Typical model
* Order NPC-1210-XXXG-XN in place of NPC-1210-XXXD-XN
The code number to be ordered may be specified as follows:
NPC-1210 (Low Pressure)
Code
Pressure Range
10W
10 in H
2
O (25 mbar)
001
1 psi (69 mbar)
Code
Type
D
Differential
G
Gauge
Code
Lead Configurations
1
Up
3
Down
Code
Tube Options
L
Long
S
Short
NPC-1210 - ___ -
number
___ -
___ -
___
Typical model
Amphenol Advanced Sensors warrants its products
against defects in material and workmanship for 12
months from the date of shipment. Products not
subjected to misuse will be repaired or replaced.
Amphenol Advanced Sensors reserves the right
to make changes without further notice to any
products herein. NovaSensor makes no warranty,
representation or guarantee regarding the suitability
of its products for any particular application, nor
does Amphenol Advanced Sensors assume any
liability arising out of the application or use of any
product or circuit and specifically disclaims and all
liability without limitation consequential or incidental
damages. The foregoing warranties are exclusive
and in lieu of all other warranties, whether written,
oral, implied or statutory. No implied statutory
warranty of merchantability or fitness for particular
purpose shall apply.
Amphenol
Advanced Sensors
www.amphenol-sensors.com
© 2017 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-303D - 11/2017
