55075-00-05-A

Description
Industrial Hall Effect / Magnetic Sensors 1m TIN Geartooth Speed Sens
CategoryThe sensor    Sensor/transducer
File Size348KB,2 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric Compare View All

55075-00-05-A Online Shopping

Suppliers Part Number Price MOQ In stock
55075-00-05-A - - View Buy Now

55075-00-05-A Overview

Industrial Hall Effect / Magnetic Sensors 1m TIN Geartooth Speed Sens

55075-00-05-A Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Maximum working current10.5 mA
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current20 mA
Output interface type3-WIRE INTERFACE
Output range20mA
Output typeDIGITAL CURRENT
Package Shape/FormCYLINDRICAL
Sensor/Transducer TypeMAGNETIC FIELD SENSOR,HALL EFFECT
Maximum supply voltage25.2 V
Minimum supply voltage4.75 V
Termination typeCABLE
Base Number Matches1
Hall Effect Sensors
Barrel Sensor > 55075

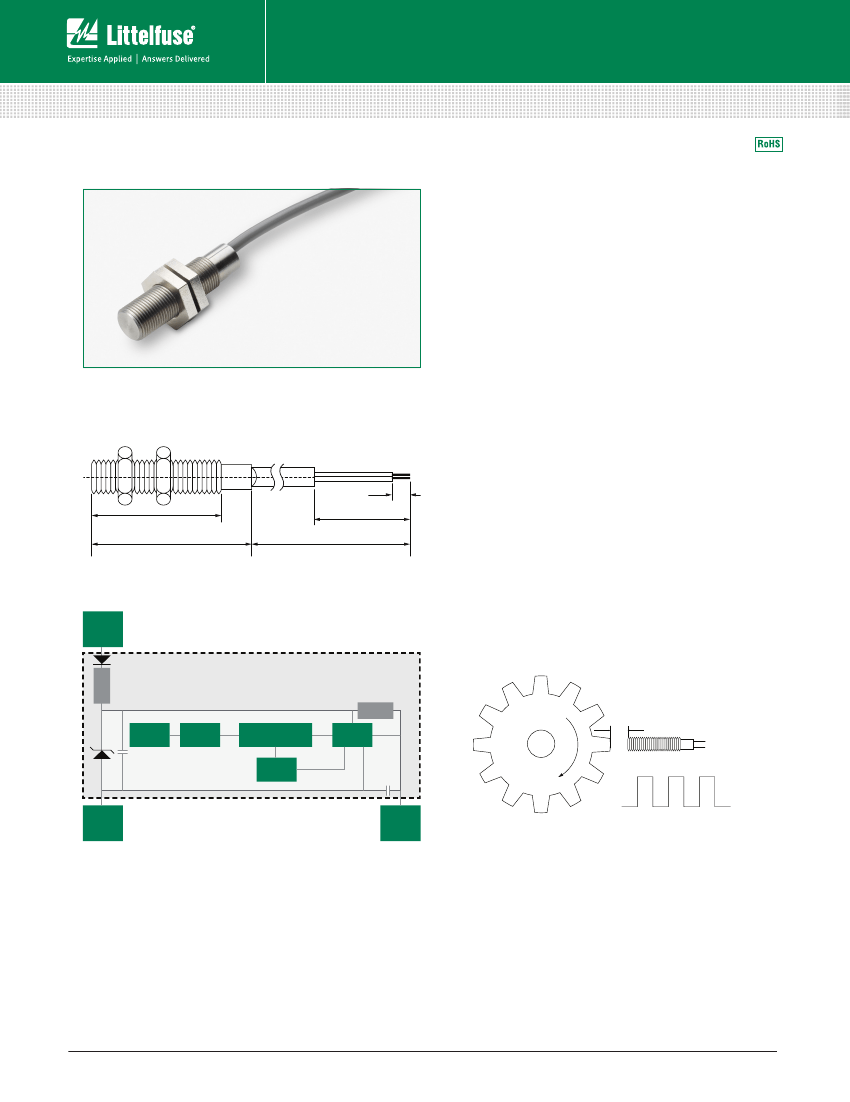

55075 Stainless Steel M12 Geartooth Speed Sensor
Description
The 55075 is a robust stainless steel hall effect barrel sensor with an M12 x
1mm pitch thread, 46mm (1.810”) long primarily for geartooth speed sensing.
It protects against severe and automotive environments and is capable of
switching up to 27Vdc and 20mA. It is available as three-wire (voltage output)
version with a range of sensitivity, cable length and connector options.It is
ideally suited to wheel, transmission and cam shaft speed sensing, geartooth
sensor, rotary encoders, industrial, commercial, and automotive applications.
Features
Dimensions
Dimensions in mm (inch)
NUTS M12x2
M12x1mm PITCH
• Ferrous target geartooth speed
sensor
• Stainless steel M12 threaded barrel
• Electronic protection against severe
and automotive environments
• Self adjusting magnetic range
• Three-wire (voltage output)
• EMC Protection (Consult Littelfuse)
• Short circuit/reverse voltage
protection
Benefits
6.35 NOM.
(.250)
30.0 NOM.
(1.181)
300
(11.81)
36.0
(1.417)
46.0
(1.811) Encapsulation excluded
• Long life, up to 20 billion operations
• High speed operation
• No chopper delay
• Unaffected by harsh environments
• Rotary orientation not critical
• On-chip 10-bit A/D converter
• Customer selection of cable length
and connector type
Block Diagram
VDD
Pin 1
(Red)
Applications
• Geartooth sensor
• Camshaft sensor
• Linear encoder
• Rotary encoder
APPLICATION EXAMPLE
- Geartooth Sensor
Rpu
Hall
Plate
C1
R1
Switch
Comparator
Clock
Output
1.5mm (.059) Typical
Typical Output
GND
Pin 2
(Black)
OUT
Pin 3
(Blue)
© 2015 Littelfuse
Revised: 10/14/15
Specifications are subject to change without notice.
littelfuse.com

55075-00-05-A Related Products

55075-00-05-A 55075-00-01-C 55075-00-03-D 55075-00-01-D 55075-00-03-E 55075-00-05-D 55075-00-05-C 55075-00-05-E 55075-00-02-A 55075-00-01-E
Description Industrial Hall Effect / Magnetic Sensors 1m TIN Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 100mm FASTONS Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 500mm CONN Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 100mm CONN Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 500mm CONN Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 1m CONN Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 1m FASTONS Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 1m CONN Geartooth Speed Sens Industrial Hall Effect / Magnetic Sensors 55075 0002A HALL G SENSOR-SET Industrial Hall Effect / Magnetic Sensors 100mm CONN Geartooth Speed Sens
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
Maximum working current 10.5 mA 10.5 mA 10.5 mA 10.5 mA 10.5 mA 10.5 mA 10.5 mA 10.5 mA 10.5 mA 10.5 mA
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output current 20 mA 20 mA 20 mA 20 mA 20 mA 20 mA 20 mA 20 mA 20 mA 20 mA
Output interface type 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE 3-WIRE INTERFACE
Output range 20mA 20mA 20mA 20mA 20mA 20mA 20mA 20mA 20mA 20mA
Output type DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT DIGITAL CURRENT
Package Shape/Form CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL
Maximum supply voltage 25.2 V 25.2 V 25.2 V 25.2 V 25.2 V 25.2 V 25.2 V 25.2 V 25.2 V 25.2 V
Minimum supply voltage 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V
Termination type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Sensor/Transducer Type MAGNETIC FIELD SENSOR,HALL EFFECT - MAGNETIC FIELD SENSOR,HALL EFFECT MAGNETIC FIELD SENSOR,HALL EFFECT MAGNETIC FIELD SENSOR,HALL EFFECT MAGNETIC FIELD SENSOR,HALL EFFECT - - MAGNETIC FIELD SENSOR,HALL EFFECT -
Base Number Matches 1 - 1 1 1 1 - - 1 -
Maker - Littelfuse - Littelfuse Littelfuse - Littelfuse Littelfuse Littelfuse Littelfuse
