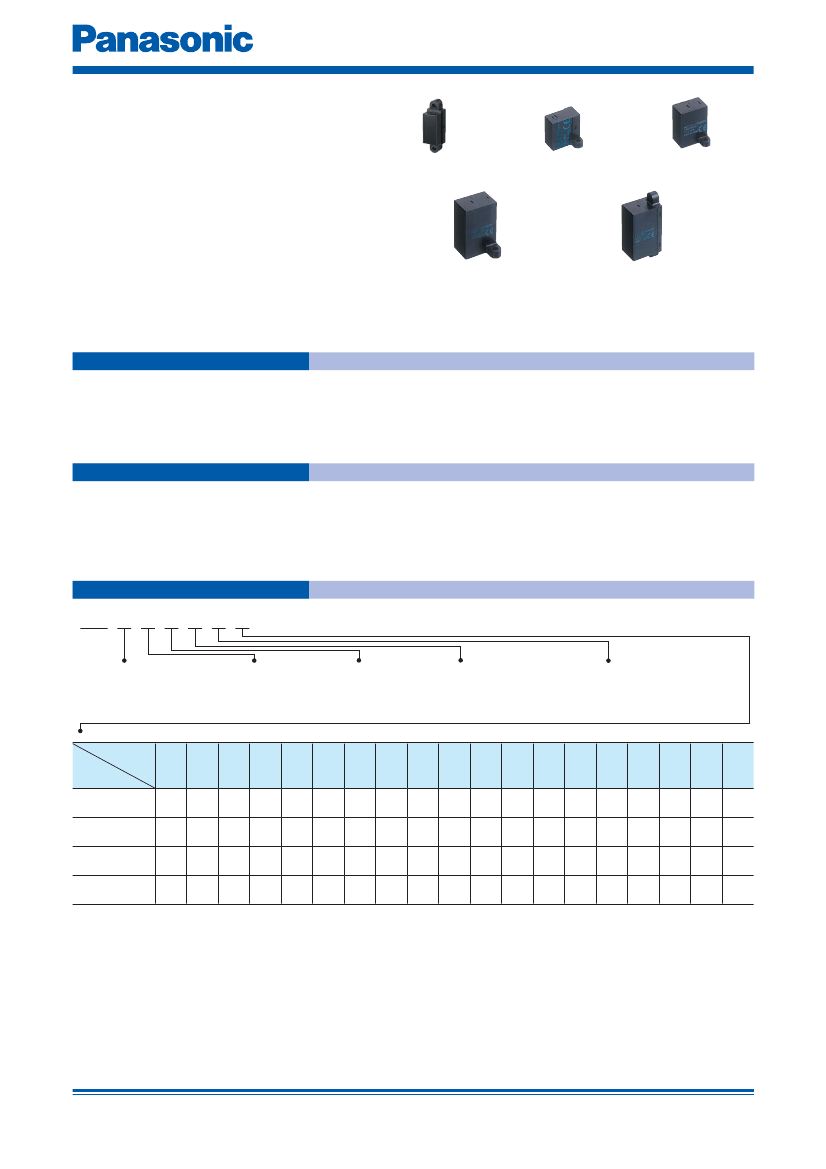

MA Motion Sensor (AMA1, AMBA1, 2, 3)
Active infrared
(area reflective)
human detection sensor
MA MOTION SENSOR
Thin short type
(Mounting direction : V type)
Short type
(Mounting direction : H type)
Middle type
(Mounting direction : H type)
Long type
(Mounting direction : H type)
Long type
(Mounting direction : V type)
Features
●
Reliable detection hardly influenced by reflectivity of targeted objects
●
Ready-to-use with DC power source (built-in oscillation circuit type)
●
Capability to adjoin sensors
●
RoHS
compliant
Typical Applications
●
Equipment
around water: automatic lighting of wash-units, toilets, automatic flush
●
Stores and financial markets: automatic doors, lighting, ATM, visitor sensors
●
Amusement equipment: seating detection for pachinko machines, game displays
●
Medical equipment markets: noncontact switches
Ordering Information
AM
A : Thin short type
MA Motion sensor
BA : MA Motion sensor
Detection distance type
(shape)
1 : Short type
2 : Middle type
3 : Long type
Triggering function
1 : External triggering
type
4 : Built-in oscillation
circuit type
(Internal trigger)
Classification by
output method & mounting direction
0 : NPN open collector/H type
5 : NPN open collector/V type
6 : PNP open collector/V type
Operating voltage
2 : Free-ranging power type
(5.5 V.DC to 27 V.DC)
9 : 5V.DC type
(4.5 V.DC to 5.5 V.DC)
Rated detection distance
Unit : cm
inch
Part No.
02
Type
Thin short
type
Short type
Middle type
Long type
–
03
–
04
–
05
06
07
08
(Middle type
does not
need 08)
10
09
(Short type
does not
need 10)
20
11
12
13
14
15
16
17
18
19
(Long type
does not
need 20)
5
10
15
–
–
–
3.937
–
–
–
–
5.906
–
–
–
–
–
1.969
–
6
7
8
9
10
5
–
–
–
–
–
–
–
–
–
–
–
–
1.969 2.362 2.756 3.150 3.543 3.937
–
20 30 40 50 60 70 80
–
–
–
–
–
–
–
–
–
–
–
7.874 11.811 15.748 19.685 23.622 27.559 31.496
–
30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
–
11.811 15.748 19.685 23.622 27.559 31.496 35.443 39.37 43.307 47.244 51.181 55.118 59.055 62.992 66.929 70.866 74.803 78.74
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
Jan. 2016
MA Motion Sensor (AMA1, AMBA1, 2, 3)
Product Types
●
Detection
distance type (distance limited)
1) Thin short type (V type)
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Operating voltage
Output method
NPN open
collector output
4.5 V.DC to 5.5 V.DC
PNP open
collector output
Rated detection
distance
5 cm
1.969 inch
10 cm
3.937 inch
15 cm
5.906 inch
5 cm
1.969 inch
10 cm
3.937 inch
15 cm
5.906 inch
Built-in oscillation circuit type
Part No.
AMA145905
AMA1459
AMA145915
AMA146905
AMA1469
AMA146915
External triggering type
Part No.
AMA115905
AMA1159
AMA115915
AMA116905
AMA1169
AMA116915
Note: If using multiple sensors adjacently or reducing power consumption, contact us for the optimal external trigger type.
2) Short type (H type)
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Rated operating
voltage
Rated detection
distance
5 cm
1.969 inch
6 cm
2.362 inch
7 cm
2.756 inch
8 cm
3.150 inch
9 cm
3.543 inch
10 cm
3.937 inch
5 cm
1.969 inch
6 cm
2.362 inch
7 cm
2.756 inch
8 cm
3.150 inch
9 cm
3.543 inch
10 cm
3.937 inch
4.5 V.DC to 5.5 V.DC
5.5 V.DC to 27 V.DC
Mounting direction : H type
Short type
Built-in oscillation circuit type
External triggering type
Part No.
Part No.
AMBA140905
AMBA110905
AMBA140906
AMBA110906
AMBA140907
AMBA110907
AMBA140908
AMBA110908
AMBA140909
AMBA110909
AMBA1409
AMBA1109
AMBA140205
AMBA110205
AMBA140206
AMBA110206
AMBA140207
AMBA110207
AMBA140208
AMBA110208
AMBA140209
AMBA110209
AMBA1402
AMBA1102
Note: If using multiple sensors adjacently or reducing power consumption, contact us for the optimal external trigger type.
3) Middle type (H type)
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Rated operating
voltage
Rated detection
distance
20 cm
7.874 inch
30 cm
11.811 inch
40 cm
15.748 inch
50 cm
19.685 inch
60 cm
23.622 inch
70 cm
27.559 inch
80 cm
31.496 inch
20 cm
7.874 inch
30 cm
11.811 inch
40 cm
15.748 inch
50 cm
19.685 inch
60 cm
23.622 inch
70 cm
27.559 inch
80 cm
31.496 inch
4.5 V.DC to 5.5 V.DC
5.5 V.DC to 27 V.DC
Mounting direction : H type
Middle type
Built-in oscillation circuit type
External triggering type
Part No.
Part No.
AMBA240902
AMBA210902
AMBA240903
AMBA210903
AMBA240904
AMBA210904
AMBA240905
AMBA210905
AMBA240906
AMBA210906
AMBA240907
AMBA210907
AMBA2409
AMBA2109
AMBA240202
AMBA210202
AMBA240203
AMBA210203
AMBA240204
AMBA210204
AMBA240205
AMBA210205
AMBA240206
AMBA210206
AMBA240207
AMBA210207
AMBA2402
AMBA2102
Note: If using multiple sensors adjacently or reducing power consumption, contact us for the optimal external trigger type.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
Jan. 2016
MA Motion Sensor (AMA1, AMBA1, 2, 3)
4) Long type
Standard packing: Carton: 20 pcs.; Case: 200 pcs.
Mounting direction : H type
Rated operating
voltage
Rated detection
distance
Mounting direction: V type
30 cm
11.811 inch
40 cm
15.748 inch
50 cm
19.685 inch
60 cm
23.622 inch
70 cm
27.559 inch
80 cm
31.496 inch
90 cm
35.433 inch
100 cm
39.370 inch
110 cm
43.307 inch
4.5 V.DC to 5.5 V.DC
120 cm
47.244 inch
130 cm
51.181 inch
140 cm
55.118 inch
150 cm
59.055 inch
160 cm
62.992 inch
170 cm
66.929 inch
180 cm
70.866 inch
190 cm
74.803 inch
200 cm
78.740 inch
30 cm
11.811 inch
40 cm
15.748 inch
50 cm
19.685 inch
60 cm
23.622 inch
70 cm
27.559 inch
80 cm
31.496 inch
90 cm
35.433 inch
100 cm
39.370 inch
110 cm
43.307 inch
5.5 V.DC to 27 V.DC
120 cm
47.244 inch
130 cm
51.181 inch
140 cm
55.118 inch
150 cm
59.055 inch
160 cm
62.992 inch
170 cm
66.929 inch
180 cm
70.866 inch
190 cm
74.803 inch
200 cm
78.740 inch
Long type
Built-in oscillation External triggering Built-in oscillation External triggering
circuit type
type
circuit type
type
Part No.
Part No.
Part No.
Part No.
AMBA340903
AMBA310903
AMBA345903
AMBA315903
AMBA340904
AMBA310904
AMBA345904
AMBA315904
AMBA340905
AMBA310905
AMBA345905
AMBA315905
AMBA340906
AMBA310906
AMBA345906
AMBA315906
AMBA340907
AMBA310907
AMBA345907
AMBA315907
AMBA340908
AMBA310908
AMBA345908
AMBA315908
AMBA340909
AMBA310909
AMBA345909
AMBA315909
AMBA340910
AMBA310910
AMBA345910
AMBA315910
AMBA340911
AMBA310911
AMBA345911
AMBA315911
AMBA340912
AMBA310912
AMBA345912
AMBA315912
AMBA340913
AMBA310913
AMBA345913
AMBA315913
AMBA340914
AMBA310914
AMBA345914
AMBA315914
AMBA340915
AMBA310915
AMBA345915
AMBA315915
AMBA340916
AMBA310916
AMBA345916
AMBA315916
AMBA340917
AMBA310917
AMBA345917
AMBA315917
AMBA340918
AMBA310918
AMBA345918
AMBA315918
AMBA340919
AMBA310919
AMBA345919
AMBA315919
AMBA3409
AMBA3109
AMBA3459
AMBA3159
AMBA340203
AMBA310203
AMBA345203
AMBA315203
AMBA340204
AMBA310204
AMBA345204
AMBA315204
AMBA340205
AMBA310205
AMBA345205
AMBA315205
AMBA340206
AMBA310206
AMBA345206
AMBA315206
AMBA340207
AMBA310207
AMBA345207
AMBA315207
AMBA340208
AMBA310208
AMBA345208
AMBA315208
AMBA340209
AMBA310209
AMBA345209
AMBA315209
AMBA340210
AMBA310210
AMBA345210
AMBA315210
AMBA340211
AMBA310211
AMBA345211
AMBA315211
AMBA340212
AMBA310212
AMBA345212
AMBA315212
AMBA340213
AMBA310213
AMBA345213
AMBA315213
AMBA340214
AMBA310214
AMBA345214
AMBA315214
AMBA340215
AMBA310215
AMBA345215
AMBA315215
AMBA340216
AMBA310216
AMBA345216
AMBA315216
AMBA340217
AMBA310217
AMBA345217
AMBA315217
AMBA340218
AMBA310218
AMBA345218
AMBA315218
AMBA340219
AMBA310219
AMBA345219
AMBA315219
AMBA3402
AMBA3102
AMBA3452
AMBA3152
Note: If using multiple sensors adjacently or reducing power consumption, contact us for the optimal external trigger type.
Rating
●
Detection
performance
1) Thin short type (Measuring conditions: ambient temp. : 25 °C
77 °F;
operating voltage : 5 V.DC)
Items
Unit
cm
inch
Minimum
Typical
mm
inch
Maximum
Typical
%
lx
24,000
5
1.969
45
1.772
50
1.969
55
2.165
10
Thin short type
10
3.937
90
3.543
100
3.937
110
4.331
25
30,000
15
3.937
135
5.315
150
5.906
165
6.496
35
Measured
conditions
with a standard
reflection board
½1
Reflection rate: 90 % to 18 %
See the drawing (Fig. 1) on
the Brightness next page.
Rated detection distance
Measuring tolerance
Usable ambient Brightness of
Maximum
sensor surface
brightness
(Resistance to
Brightness of
ambient light)
½2
reflection surface Maximum
Notes :
½1.
Ambient brightness: 500 lx
½2.
Prevent direct light (within 30 ° against the optical axis of the sensor) from entering into the sensor.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
Jan. 2016
MA Motion Sensor (AMA1, AMBA1, 2, 3)
2) Short type (Measuring conditions : ambient temp.: 25 °C
77 °F;
operating voltage: 5 V.DC type 5 V.DC, Free-ranging power type 24 V.DC)
Items
Minimum
Rated detection distance
Typical
Maximum
Measuring tolerance
Typical
Usable ambient Brightness of Maximum
sensor surface
brightness
(Resistance to
Brightness of
ambient light)
½2
reflection surface Maximum
%
lx
24,000
mm
inch
Unit
cm
inch
5
1.969
45
1.772
50
1.969
55
2.165
10
6
2.362
54
2.126
60
2.362
66
2.598
Short type
½1
7
8
9
2.756 3.150 3.543
63
72
81
2.480 2.835 3.189
70
80
90
2.756 3.150 3.543
77
88
99
3.031 3.465 3.898
15
20
30,000
Measured
10
conditions
3.937
90
3.543
100 with a standard
3.937
reflection board
110
4.331
25
Reflection rate: 90 % to 18 %
See the drawing
(Fig. 1) on the
next page.
Notes :
½1.
After the order receipt, the average rated detecting distance can be increased to max 15 cm
5.906 inch.
Please consult us.
½2.
Prevent direct light (within 30 ° against the optical axis of the sensor) from entering into the sensor.
3) Middle type (Measuring conditions: ambient temp.: 25 °C
77 °F;
operating voltage: 5 V.DC type 5 V.DC, Free-ranging power type 24 V.DC)
Items
Minimum
Rated detection distance
Typical
Maximum
Measuring tolerance
Typical
Usable ambient Brightness of Maximum
sensor surface
brightness
(Resistance to
Brightness of
ambient light)
½2
reflection surface Maximum
%
lx
24,000
mm
inch
Unit
cm
inch
20
7.874
190
7.480
200
7.874
210
8.268
Middle type
½1
Measured
30
40
50
60
70
80
conditions
11.811 15.748 19.685 23.622 27.559 31.496
285
380
475
570
665
760
11.220 14.961 18.701 22.441 26.181 29.921
300
400
500
600
700
800 with a standard
11.811 15.748 19.685 23.622 27.559 31.496
reflection board
315
420
525
630
735
840
12.402 16.535 20.669 24.803 28.937 33.071
3
5
10
Reflection rate: 90 % to 18 %
30,000
See the drawing
(Fig. 1) on the
next page.
Notes :
½1.
After the order receipt, the average rated detecting distance can be increased to max 110 cm
43.307 inch.
Please consult us.
½2.
Prevent direct light (within 30 ° against the optical axis of the sensor) from entering into the sensor.
4) Long type (Measuring conditions: ambient temp.: 25 °C
77 °F;
operating voltage: 5 V.DC type 5 V.DC, Free-ranging power type 24 V.DC)
Items
Unit
30
cm
inch 11.811
285
Minimum
11.220
mm 300
Typical
inch 11.811
315
Maximum
12.402
Typical
%
lx
24,000
Long type
140 150 160 170
55.118 59.055 62.992 66.929
1330 1425 1520 1615
52.362 56.102 59.842 63.583
1400 1500 1600 1700
55.118 59.055 62.992 66.929
1470 1575 1680 1785
57.874 62.008 66.142 70.275
10
30,000
lx
24,000
40
15.748
380
14.961
400
15.748
420
16.535
Long type
50
60
70
80
19.685 23.622 27.559 31.496
475 570 665 760
18.701 22.441 26.181 29.921
500 600 700 800
19.685 23.622 27.559 31.496
525 630 735 840
20.669 24.803 28.937 33.071
3
30,000
90
34.433
855
33.661
900
34.433
945
37.205
100
39.370
950
37.402
1000
39.370
1050
41.339
5
Measured
110
conditions
43.307
1045
41.142
1100 with a standard
43.307
reflection board
1155
45.472
Reflection rate: 90 % to 18 %
See the drawing
(Fig. 1) on the
next page.
Measured
200
conditions
78.740
1900
74.803
2000 with a standard
78.740
reflection board
2100
82.677
Reflection rate: 90 % to 18 %
See the drawing
(Fig. 1) on the
next page.
Rated detection distance
Measuring tolerance
Usable ambient Brightness of Maximum
sensor surface
brightness
(Resistance to
Brightness of
ambient light)
½
reflection surface Maximum
Items
Rated detection distance
Measuring tolerance
Usable ambient Brightness of Maximum
sensor surface
brightness
(Resistance to
Brightness of
ambient light)
½
reflection surface Maximum
Unit
cm 120 130
inch 47.244 51.181
1140 1235
Minimum
44.882 48.622
mm 1200 1300
Typical
inch 47.244 51.181
1260 1365
Maximum
49.606 53.740
Typical
%
5
180 190
70.866 74.803
1710 1805
67.323 71.063
1800 1900
70.866 74.803
1890 1995
74.409 78.543
15
Notes :
½
Prevent direct light (within 30 ° against the optical axis of the sensor) from entering into the sensor.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
Jan. 2016
MA Motion Sensor (AMA1, AMBA1, 2, 3)
• For thin short type:
Standard reflection board : 150 mm
5.906 inch
90% reflection rate.
• For short type:
Standard reflection board: 100 mm
3.937 inch
90% reflection rate.
• For middle type:
Standard reflection board: 200 mm
7.874 inch
90% reflection rate.
• For long type:
Standard reflection board: 500 mm 19.685
inch
90% reflection rate.
square area,
square area,
square area,
square area,
Notes : 1. Detecting an object within the maximum preset detection distance.
2. Distance deviation =
a–b
a
×
100 (%)
(
a: detection distance of detection target with reflectance of 90 %.
b: detection distance of standard detection target with reflectance of 18 %.
)
<Fig. 1>
[Brightness of sensor surface]
(q
1
,
q
1´
)> 15 °
30°
Light meter
q
1
q
1´
½Area
for prohibit
direct light
[Brightness of reflection surface]
Sensor
Sensor
30 °
<
(q
2
,
q
2´
)
<
45 °
q
2
q
2´
Light meter
Reflection
board
Notes : If sunlight or strobe/inverter light (including the regular reflection light from
glasses and mirrors) directly enters from the inhibition area, those lights
may cause malfunction of the sensor.sensor) from entering into the sensor.
Rated detection distance
Absolute maximum rating
●
Measuring
condition: ambient temp.: 25 °C
77 °F
Items
Absolute maximum rating
Built-in oscillation circuit type
External triggering type
5 V.DC type
Free-ranging power type
−0.3 V.DC to 30 V.DC
30 V.DC
10 mA
½
–25 °C to +75 °C
+5 °F to +131 °F
(No freezing)
–30 °C to +85 °C
–4 °F to +176 °F
5 V.DC type
Free-ranging power type
30 V.DC
100 mA
–25 °C to +75 °C
+5 °F to +131 °F
(No freezing)
–30 °C to +85 °C
–4 °F to +176 °F
Items
Power supply voltage
Output dielectric strength
Output flow current
Usable ambient temperature
Storage temperature
Notes :
½
Thin short type is only: 100 mA
−0.3 V.DC to 6 V.DC −0.3 V.DC to 30 V.DC −0.3 V.DC to 6 V.DC
Electrical characteristics
●
Measuring conditions : ambient temp.: 25 °C
77 °F,
operating voltage: 5 V.DC type, free-ranging power type 24 V.DC
1) Built-in oscillation circuit type
Items
Measured
Short type Middle type Long type conditions
NPN
PNP
output type output type
5 V.DC type : 4.5V.DC / Free-ranging power type : 5.5 V.DC
Minimum
Typical VDD
–
5 V.DC type : 5.5 V.DC /Free-ranging power type : 27 V.DC
Maximum
–
Minimum
5 V.DC type : 4.5 mA
Typical
4.5 mA
It
Free-ranging power type : 5.6 mA
5 V.DC type : 6.2 mA
Maximum
6.2 mA
Free-ranging power type : 7.8 mA
–
Minimum
5 V.DC type :
Typical
7.0 mA
11.0 mA Free-ranging power 7.0 mA mA
It
type : 9.1
5 V.DC type :
Maximum
11.2 mA
15.2 mA Free-ranging power 11.2 mA mA
type : 14.2
Symbol
Typical
Remain voltage Maximum
Leakage current Maximum
T
Vr
II
1 V.DC
1.2 V.DC
5 μA
8 ms/cycle
1 V.DC
3 μA
It=100 mA
V=30 V.DC
Thin short type
½
Rated operating voltage
No detection
Average current
consumption
(Iout=0 mA)
Detection
Measuring cycle
Output
characteristics
Notes :
½
The thin short type is only available for 5 V.DC.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
Jan. 2016
京公网安备 11010802033920号
EEWORLD
