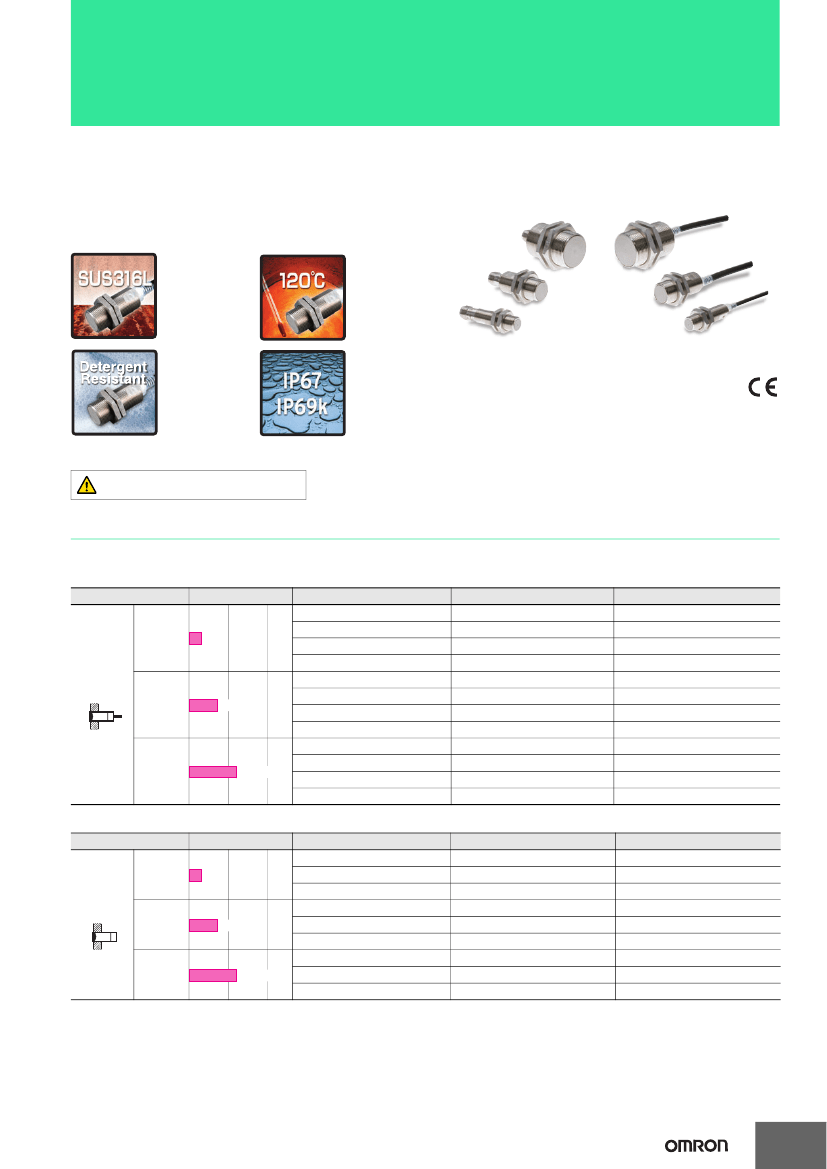

Proximity Sensor Ideal for High Temperatures and Cleaning Processes
E2EH
CSM_E2EH_DS_E_4_1
Proximity Sensor Ideal for the Food
and Beverage Industry
–SUS316L Body, IP69K Protection, Resistant to High
Temperatures and Detergents–
Improved resistance to
detergents and rusting
Applicable to 120°C
(with DC 3-wire
connection)
(Heat resistance verified
to 1,000 hours.)
Resists typical
detergents and
disinfectants used in
the food industry
Water resistant under
high-temperature,
high-pressure cleaning
based on DIN 40050-9.
(Pressure: 8,000 to
10,000 kPa, Water
temperature: 80°C, For
30 s at all angles)
Be sure to read
Safety Precautions
on page 9.
Ordering Information
Sensors
[Refer to
Dimensions
on page 10.]
Pre-wired Models
*1
Appearance
Sensing distance
Output configuration
DC 2-wire (polarity)
DC 2-wire (no polarity)
*2
DC 3-wire (PNP)
DC 3-wire (NPN)
DC 2-wire (polarity)
DC 2-wire (no polarity)
*2
DC 3-wire (PNP)
DC 3-wire (NPN)
DC 2-wire (polarity)
DC 2-wire (no polarity)
*2
DC 3-wire (PNP)
DC 3-wire (NPN)
Operation mode: NO
E2EH-X3D1 2M
E2EH-X3D1-T 2M
E2EH-X3B1 2M
E2EH-X3C1 2M
E2EH-X7D1 2M
E2EH-X7D1-T 2M
E2EH-X7B1 2M
E2EH-X7C1 2M
E2EH-X12D1 2M
E2EH-X12D1-T 2M
E2EH-X12B1 2M
E2EH-X12C1 2M
Operation mode: NC
E2EH-X3D2 2M
---
E2EH-X3B2 2M
E2EH-X3C2 2M
E2EH-X7D2 2M
---
E2EH-X7B2 2M
E2EH-X7C2 2M
E2EH-X12D2 2M
---
E2EH-X12B2 2M
E2EH-X12C2 2M
M12
3 mm
Shielded
M18
7 mm
M30
12 mm
Connector Models (M12)
Appearance
M12
Sensing distance
Output configuration
DC 2-wire (polarity)
DC 3-wire (PNP)
DC 3-wire (NPN)
DC 2-wire (polarity)
DC 3-wire (PNP)
DC 3-wire (NPN)
DC 2-wire (polarity)
DC 3-wire (PNP)
DC 3-wire (NPN)
Operation mode: NO
E2EH-X3D1-M1G
E2EH-X3B1-M1
E2EH-X3C1-M1
E2EH-X7D1-M1G
E2EH-X7B1-M1
E2EH-X7C1-M1
E2EH-X12D1-M1G
E2EH-X12B1-M1
E2EH-X12C1-M1
Operation mode: NC
E2EH-X3D2-M1G
E2EH-X3B2-M1
E2EH-X3C2-M1
E2EH-X7D2-M1G
E2EH-X7B2-M1
E2EH-X7C2-M1
E2EH-X12D2-M1G
E2EH-X12B2-M1
E2EH-X12C2-M1
3 mm
Shielded
M18
7 mm
M30
12 mm
*1. The standard cable length is 2 m. An optional 5 m model is also available. Contact your OMRON representative for more information.
For details, refer to the
Proximity Sensors Technical Guide.
*2.
When using
a no-polarity model, there is no need to
be
concerned about
whether
to connect to the positive or negative side of the power supply. The load can
be
connected to either the +V side or 0 V side.
1
E2EH
Accessories (Order Separately)
Sensor I/O Connectors (M12)
(Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)
[Refer to
XS2.]
Appearance
Cable length
2m
5m
Sensor I/O Connector model
XS2F-E421-D80-E
XS2F-E421-G80-E
XS2F-E422-D80-E
XS2F-E422-G80-E
E2EH-X@D@-M1G
E2EH-X@B@-M1
E2EH-X@C@-M1
Applicable Proximity Sensors
Straight
L-shape
2m
5m
Note: The above Connectors conform to DIN40050-9 standard, provide IP69K protection, have a maximum operating temperature of 105°C, and use SUS316L stainless
steel.
2
E2EH
Ratings and Specifications
E2EH-X@D@ DC 2-Wire Models
Size
Shielded
Item
Sensing distance
Set distance
*1
Differential travel
Detectable object
Standard sensing object
Response frequency
*2
Power supply voltage (operating
voltage range)
Leakage current
Control out-
put
Indicators
Operation mode (with sensing ob-
ject approaching)
Protection circuits
Ambient temperature range
Ambient humidity range
Temperature influence
Voltage influence
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Pre-wired Models
Weight
(packed state) Connector Models
Materials
Accessories
Sensing surface
Cable
Load current
Residual voltage
*3
Model
3 mm
0 to 2.4 mm
15% max. of sensing distance
Ferrous metal (The sensing distance decreases
with
non-ferrous metal.
Refer to
Engineering Data
on page 6.)
Iron, 12
×
12
×
1 mm
500 Hz
Iron 21
×
21
×
1 mm
300 Hz
Iron 36
×
36
×
1 mm
100 Hz
E2EH-X3D@
7 mm
0 to 5.6 mm
M12
M18
Shielded
E2EH-X7D@
12 mm
0 to 9.6 mm
E2EH-X12D@
M30
12 to 24 VDC, ripple (p-p): 10% max.
(10 to 32 VDC, however, 24 VDC max. at temperatures over 100°C)
max. of sensing distance at 23°C in the temperature range of 0 to 70°C.
±15%
max. of sensing distance at 23°C in the temperature range of 70 to 100°C.
−15%
to +20% of sensing distance at 23°C in the temperature range of 100 to 110°C.
±10%
max. of sensing distance at rated
voltage
in the 15% rated
voltage
range.
50 MΩ min. (at 500 VDC)
between
current-carrying parts and case
1,000 VAC, 50/60 Hz for 1 min
between
current-carrying parts and case
Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Destruction: 1,000 m/s
2
, 10 times each in X, Y and Z directions
IEC IP67, DIN 40050-9 IP69K
*5
Pre-wired Models (Standard cable length 2 m), Connector Models
Approx.
80
g
Approx. 30 g
PBT
Heat-resistant PVC cable (Pre-wired model)
Instruction manual
Approx. 145 g
Approx. 55 g
Approx. 220 g
Approx. 125 g
Case, clamping nut
Stainless steel (SUS316L)
*1. Use the yellow indicator on D1 Models as a guide.
*2. The response frequency is an average
value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*3. The residual
voltage
of each E2EH-X@D@ DC 2-Wire Model is 5 V.
When
connecting to a device, make sure that the device can
withstand
the residual
voltage.
(Refer to page 9.)
*4. Operation
with
power supplied for 1,000 h has
been verified
at 110°C. Do not
bend
the cable repeatedly at 100°C or higher.
*5. IP69K Degree of Protection Specification
IP69K is a protection standard against high temperature and high-pressure
water
defined in the German standard DIN 40050,
Part 9. The test piece is sprayed
with water
at
80°C
at a
water
pressure of
80
to 100 BAR
using
a specified nozzle shape at a
rate of 14 to 16 liters/min.
The distance
between
the test piece and nozzle is 10 to 15 cm, and
water
is sprayed horizontally for 30 seconds each at 0°,
30°, 60°, and 90°
while
rotating the test piece on a horizontal plane.
3
E2EH
E2EH-X@C@/B@ DC 3-Wire Models
Size
Shielded
Item
Sensing distance
Set distance
*1
Differential travel
Detectable object
Standard sensing object
Response frequency
*2
Power supply voltage (operating
voltage range)
Current consumption
Control out-
put
Indicators
Operating mode
(with sensing object approaching)
Load current
Residual voltage
Model
E2EH-X3C@/B@
3 mm±10%
0 to 2.4 mm
15% max. of sensing distance
Ferrous metal (The sensing distance decreases
with
non-ferrous metal. Refer to
Engineering
Data
on page 6.)
Iron, 12
×
12
×
1 mm
500 Hz
Iron 21
×
21
×
1 mm
300 Hz
Iron 36
×
36
×
1 mm
100 Hz
M12
M18
Shielded
E2EH-X7C@/B@
7 mm±10%
0 to 5.6 mm
E2EH-X12C@/B@
12 mm±10%
0 to 9.6 mm
M30
12 to 24 VDC, ripple (p-p): 10% max.
(10 to 32 VDC, however, 24 VDC max. at temperatures over 100°C)
10 mA max.
100 mA max. (however, 50 mA max. at 100 to 120°C)
2 V max. (Load current: 100 mA, Cable length 2 m)
Operation indicator (yellow)
C1 Models:
NO
C2 Models:
NC
B1 Models:
NO
B2 Models:
NC
Refer to the timing charts
under
I/O Circuit Diagrams
on page 7 for details.
Protection circuits
Ambient temperature range
Ambient humidity range
Temperature influence
Voltage influence
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Pre-wired Models
Weight
(packed state) Connector Models
Materials
Accessories
Sensing surface
Cable
Power supply reverse polarity protection, Surge suppressor, Load short-circuit protection,
Reversed output polarity protection
Operating: 0 to 100°C (0 to 120°C 1,000 h)
*2
Storage:
−25
to 70°C (with no icing or condensation)
35% to 95%
±10%
max. of sensing distance at 23°C in the temperature range of 0 to 70°C.
±15%
max. of sensing distance at 23°C in the temperature range of 70 to 100°C.
−15%
to 20% of sensing distance at 23°C in the temperature range of 100 to 120°C.
10% max. of sensing distance at rated
voltage
in the 15% rated
voltage
range.
50 MΩ min. (at 500 VDC)
between
current-carrying parts and case
1,000 VAC, 50/60 Hz for 1 min
between
current-carrying parts and case
Destruction: 10 to 55 Hz 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Destruction: 1,000 m/s
2
, 10 times each in X, Y and Z directions
IEC IP67, DIN 40050-9 IP69K
Pre-wired Models (Standard cable length 2 m), Connector Models
Approx.
80
g
Approx. 30 g
PBT
Heat-resistant PVC cable (Pre-wired Model)
Instruction manual
Approx. 145 g
Approx. 55 g
Approx. 220 g
Approx. 125 g
Case, clamping nut
Stainless steel (SUS316L)
*1. The response frequency is an average
value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. Operation
with
power supplied for 1,000 h has
been verified
at 120°C. Do not
bend
the cable repeatedly at 100°C or higher.
4
E2EH
Resistance to Detergents, Disinfectants, and Chemicals
•
Performance is assured for typical detergents and disinfectants,
but
performance may not
be
maintained for some detergents
and disinfectants. Refer to the following table
when using
these agents.
•
The E2EH passed testing for resistance to detergents and disinfectants performed
using
the items in the following table. Refer
to this table
when
considering
use
of detergents and disinfectants.
Category
Product name
Sodium hydroxide (NaOH)
Potassium hydroxide (KOH)
Phosphoric acid (H
3
PO
4
)
Sodium hypochlorite (NaClO)
Hydrogen peroxide (H
2
O
2
)
P3-topax-66s (Manufactured
by
Ecolab)
P3-topax-56 (Manufactured
by
Ecolab)
P3-oxonia active 90 (Manufactured
by
Ecolab)
Concentration Temperature
1.5%
70°C
1.5%
70°C
2.5%
70°C
0.3%
25°C
6.5%
25°C
3.0%
5.0%
1.0%
70°C
70°C
25°C
Time
240h
240h
240h
240h
240h
240h
240h
240h
Chemical
Alkaline foam
detergent
Acidic foam detergent
Disinfectant
Test Conditions
After the test is completed, check that no problems exist
with
the following product
characteristics.
(1) Appearance (no damage that
will
affect the product characteristics)
(2) Operation Check (ON/OFF)
(3) Insulation resistance: 50 MΩ min. (at 500 VDC)
