59085-4-T-02-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The sensor> 59085-4-T-02-A

Preview

59085-4-T-02-A: DescriptionProximity Sensors Reed Sensors; CategoryThe sensor; File Size496KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

59085-4-T-02-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59085-4-T-02-A	-	-	View	Buy Now

59085-4-T-02-A Overview

Proximity Sensors Reed Sensors

59085-4-T-02-A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Proximity Sensors
Shipping Restrictions	This product may require additional documentation to export from the United States.
RoHS	Details
Sensing Method	Magnetic
Sensing Distance	1.4 mm
Mounting Style	Screw
Output Configuration	SPST-NC
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Packaging	Case
Description/Function	Vane sensor
Height	6.35 mm
Length	25.4 mm
Width	19.05 mm
Barrel Size	25.4 mm x 19.05 mm x 6.35 mm
Operating Supply Current	350 mA, 500 mA
Operating Supply Voltage	140 VAC, 200 V
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Reed Sensors

Vane Sensor > 59085

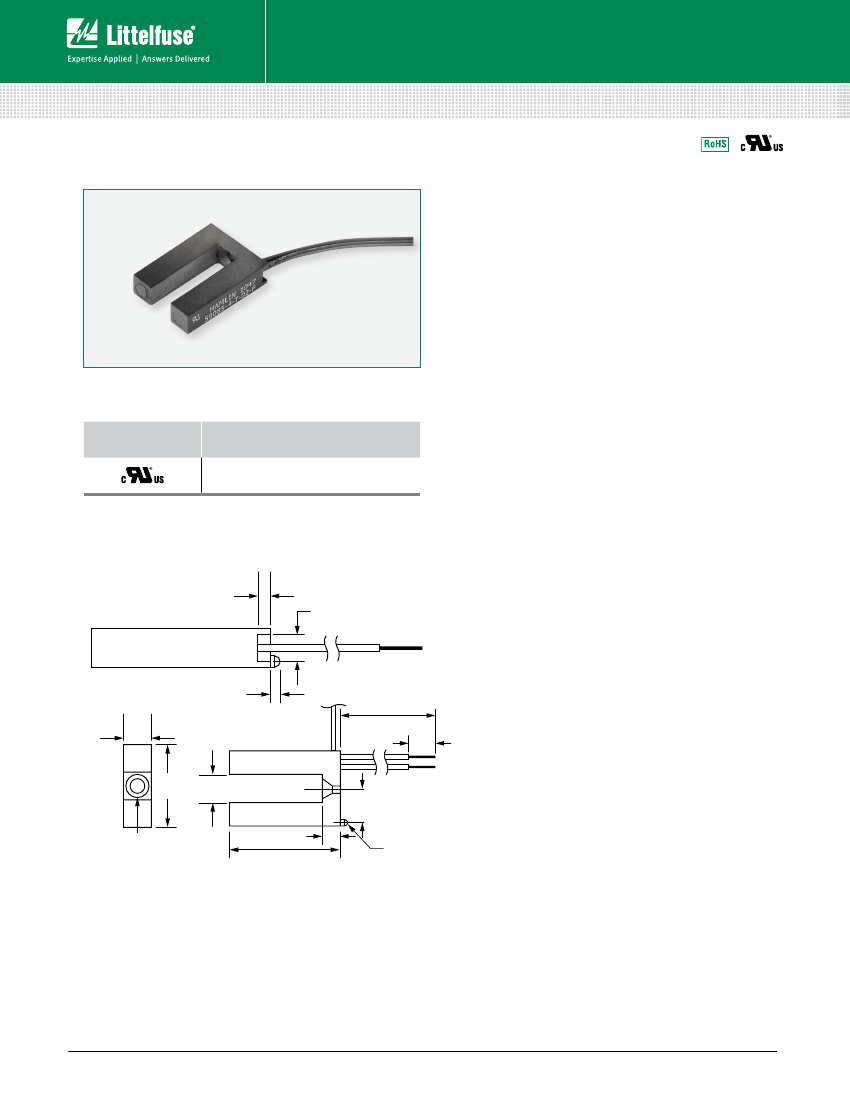

59085 Vane Sensor

Description

The 59085 is a reed vane sensor with integral actuator magnet. It’s actuation

occurs when a suitable low carbon steel vane passes through the slot between

the magnet and switch. It is normally open, normally closed, high voltage

normally closed or changeover contacts. It is capable of switching up to

265Vac/300Vdc at 10VA. It is ideally suited to position and limit sensing,

security, linear actuator, industrial process control and shaft rotation

applications.

Features

Agency Approvals

Agency

Agency File Number

E61760

Note: Contact Littelfuse for specific agency approval ratings.

• Sensor and magnet contained in

single housing

• Sensor operates when ferrous vane

passes through slot

• Choice of cable length and

connector

Benefits

• Hermetically sealed, magnetically

operated contacts continue to

operate long after optical and other

technologies fail due to

contamination

• Quick and reliable single screw

mounting with location feature

• No standby power requirement

Dimensions

Dimensions in mm (inch)

1.91

(.075)

Applications

4.91

(.165)

• Position and limit sensing

• Security system switch

• Linear actuators

• Industrial process control

• Shaft rotation sensing

1.59

(.062)

6.35

(.250)

10.00

Cable Options±(.393)

6.35

(.25) NOM.

19.05

(.750)

6.35

(.250)

3.81

(.150)

6.69

(.342)

25.4

(1.00)

1.50

(.062)

.116 DRILL C SINK FOR

#4-40 MAGNETIC

Revised: 12/11/17

Specifications are subject to change without notice.

littelfuse.com
