59021-1-S-04-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> 59021-1-S-04-D

59021-1-S-04-D: DescriptionProximity Sensors NO 6-10AT 750mm 59021 Firecracker; CategoryThe sensor; File Size412KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

59021-1-S-04-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59021-1-S-04-D	-	-	View	Buy Now

59021-1-S-04-D Overview

Proximity Sensors NO 6-10AT 750mm 59021 Firecracker

59021-1-S-04-D Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Proximity Sensors
RoHS	Details
Sensing Method	Magnetic
Sensing Distance	6 mm
Mounting Style	Wire
Output Configuration	SPST-NO
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Packaging	Bulk
Description/Function	Aluminum miniature firecracker reed sensor
Length	15.24 mm
Barrel Size	5.1 mm
Operating Supply Current	250 mA
Operating Supply Voltage	170 V
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Reed Sensors

Firecracker > 59021

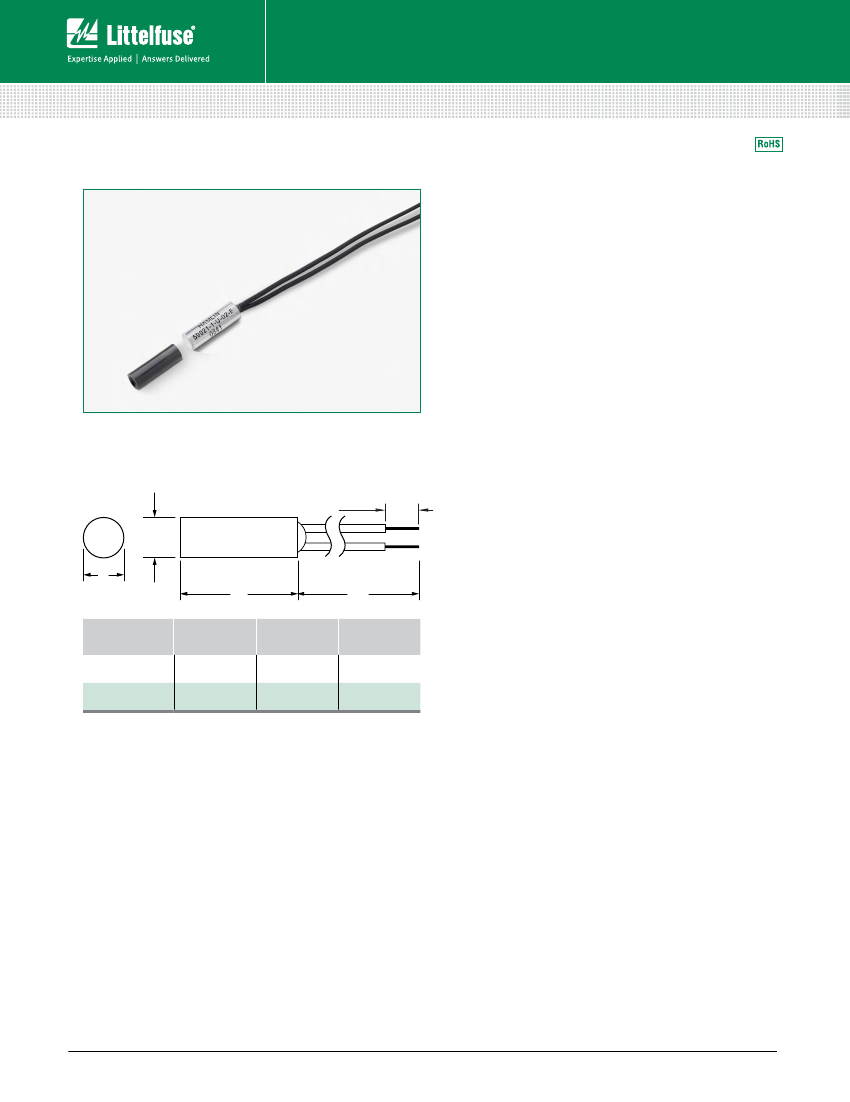

59021 Aluminium Miniature Firecracker Reed Sensor + 57020 Actuator

Description

The 59021 Firecracker Reed Sensor is a miniature cylindrical reed sensor with a

robust aluminium body 15.24mm x 5.10mm (0.600” x 0.201”) with a normally

open contact. It is capable of switching up to 170Vdc at 10W. It has a variety of

cable lengths and connector options. It functions best with the 57020-000

actuator.

Note: The 57020 Actuator is sold separately.

Features

• Two-part magnetically operated

proximity sensor

• Aluminium body

• Normally open contact

• Customer defined sensitivity option

• Choice of cable length and

connector

Dimensions

Dimensions in mm (inch)

6.35 NOM.

(.250)

Benefits

• Hermetically sealed, magnetically

operated contacts continue to

operate long after optical and other

technologies fail due to

contamination

• Quick and easy to install

• No standby power requirement

• Operates through non-ferrous

materials such as wood, plastic or

aluminium

Applications

Nom.

• Position and Limit Sensing

• Security Systems

• Level Sensing

• Linear Actuators

Max.

57020 Actuator

59021 Sensor

Max.

15.24 (.600)

5.10 (.201)

300±10.00

(11.81±.393)

Revised: 12/11/17

Specifications are subject to change without notice.

littelfuse.com
