NPI-19B-100AV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> NPI-19B-100AV

NPI-19B-100AV: DescriptionIndustrial Pressure Sensors 100 PSIG/A; CategoryThe sensor; File Size457KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

NPI-19B-100AV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NPI-19B-100AV	-	-	View	Buy Now

NPI-19B-100AV Overview

Industrial Pressure Sensors 100 PSIG/A

NPI-19B-100AV Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Industrial Pressure Sensors
RoHS	Details
Product	Transducers
Operating Pressure	100 psi
Pressure Type	Absolute
Accuracy	0.2 %
Port Size	1/2 in - 20 UNF
Output Voltage	100 mV
Packaging	Tray
Pressure Port	Port
Operating Supply Current	1 mA
Factory Pack Quantity	1

Preview

Download Datasheet

View All

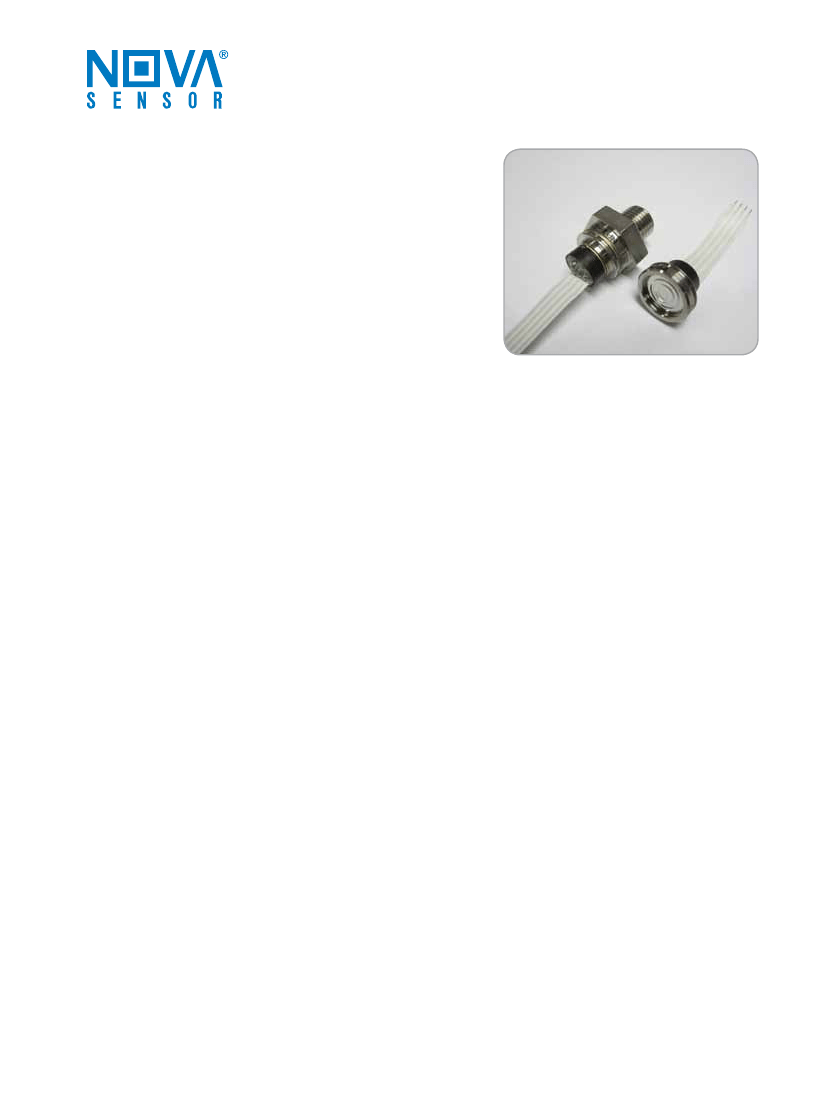

NPI-19 Series

Medium Pressure Sensors

Applications

• Process

control systems

• Hydraulic

systems and valves

• Biomedical

instruments

• Refrigeration

and HVAC controls

• Appliances

and consumer electronics

• Ship

and marine systems

• Aircraft

and avionic systems

Features

•

Solid state, high reliability

•

316L stainless steel, ISO sensor design

•

±0.5% static accuracy

•

Temperature compensated 32°F to 158°F (0°C to

70°C)

•

High sensitivity, 100 mV FSO with 1.0 mA

excitation

•

Linearity 0.1% FSO typical

•

Four standard ranges: 0 to 15 psig (0 to 1 bar),

0 to 250 psig (0 to 17 bar) available in gauge or

absolute

•

Voltage driven ranges: 15, 30, 50, 100, 200 and

300 psi (1, 2, 3, 7, 14 and 20 bar) gauge and

absolute

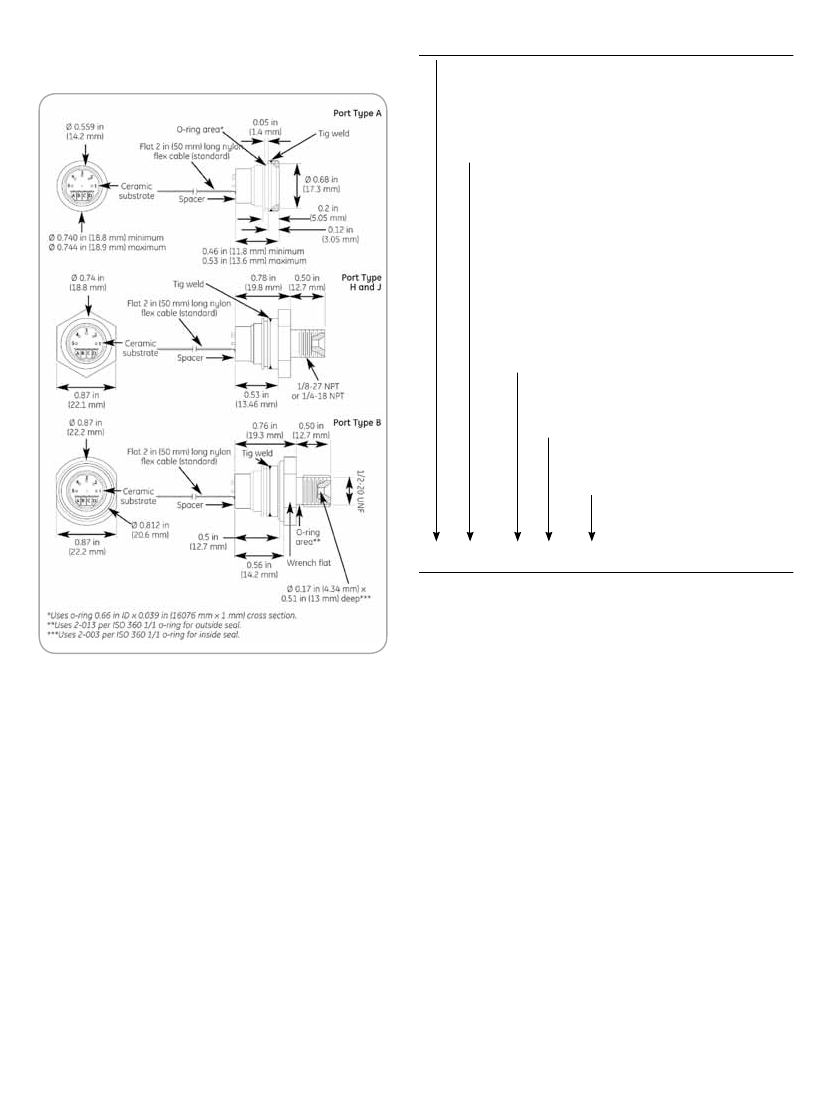

• Standard configurations include:

_ 1/2 in-20 UNF threaded male port with 1.0 in

(25 mm) flange

_ 0.74 in (18.8 mm) diameter x 0.28 in (7 mm) long

cylinder with o-ring seals

_ 1/4 in-18 NPT male port with 7/8 in (22 mm) flange

_ 1/8 in-27 NPT male port with 7/8 in (22 mm) flange

Amphenol

Advanced Sensors

• Custom configurations and other pressure ranges

available. Please consult the factory.
