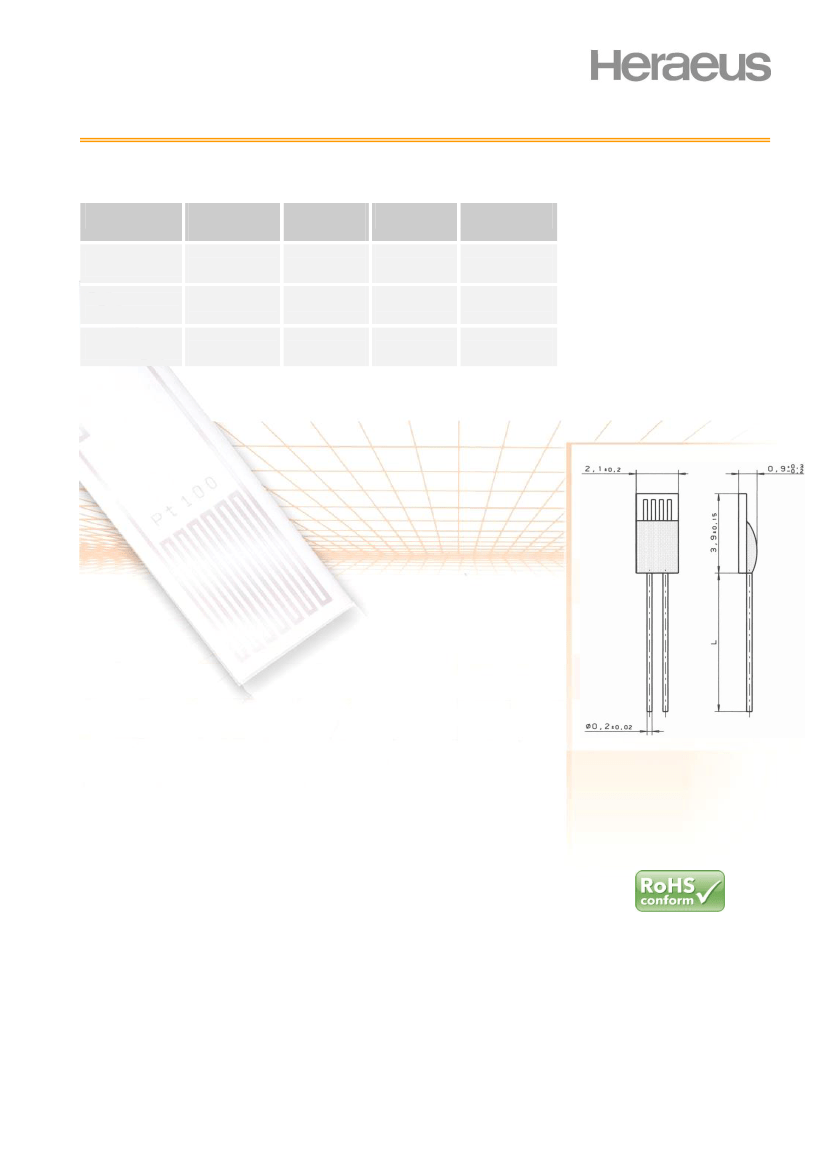

Platinum Resistance Temperature Detector
M 422
M series PRTDs are especially robust and are designed for large volume applications where long term stability,
interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White
Goods, HVAC, Energy Management, Medical and Industrial Equipment.
Nominal
Resistance R0
100 Ohm at 0°C
500 Ohm at 0°C
1000 Ohm at 0°C
Tolerance
DIN EN 60751
1996-07
Class 1/3 B
Class A
Class B
Class 1/3 B
Class A
Class B
Class 1/3 B
Class A
Class B
Tolerance
DIN EN 60751
2009-05
F 0.1
F 0.15
F 0.3
F 0.1
F 0.15
F 0.3
F 0.1
F 0.15
F 0.3
Order Number
Plastic Bag
32 208 500
32 208 498
32 208 392
32 208 502
32 208 501
32 208 414
32 208 537
32 208 503
32 208 499
Order Number
Blister reel
32 208 522
32 208 521
32 208 520
32 208 525
32 208 524
32 208 523
32 208 527
32 208 526
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Specification
Temperature range
DIN EN 60751 (according to IEC 751)
-70°C to +500°C (continuous operation)
(temporary use to 550°C possible)
Tolerance Class B:
-70°C to +500°C
Tolerance Class A:
-50°C to +300°C
Tolerance Class 1/3 B:
0°C to +150°C
TC = 3850 ppm/K ; 3750 ppm/K available
on request
Pt clad Ni- wire
Recommend connection technology:
Welding, Crimping and Brazing
10mm ±1mm
max. R
0
-drift 0.04% after 1000 h at 500 °C
at least 40g acceleration at 10 to 2000 Hz,
depends on installation
at least 100g acceleration with 8ms half sine
wave, depends on installation
unhoused for dry environments only
> 100 M at 20°C; > 2 M at 500°C
0.3 K/mW at 0°C
water current (v= 0.4m/s):
air stream (v= 2m/s):
t
0.5
= 0.07s
t
0.9
= 0.20s
t
0.5
= 3.2s
t
0.9
= 11s
Temperature coefficient
Leads
Lead lengths (L)
Longterm stability
Vibration resistance
Shock resistance
Environmental conditions
Insulation resistance
Self heating
Response time
Measuring current
100: 0.3 to 1.0mA
500: 0.1 to 0.7mA
1000: 0.1 to 0.3mA
(self heating has to be considered)
Other tolerances, values of resistance and wire lengths are
available on request.
Note
We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee
particular properties to any products.
Heraeus Sensor Technology USA
770 Township Line Road, Suite 300
Yardley, PA 19067 USA
Phone 1-215-944-9010 Fax 1-215-944-9392
Email info.hst-us@heraeus.com
www.hst-us.com
Name of document: 30910021 Index B
Status: 06/2016
