59090-3-T-04-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> 59090-3-T-04-F

59090-3-T-04-F: DescriptionProximity Sensors CO 5W 750mm Vane Sensor; CategoryThe sensor; File Size415KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

59090-3-T-04-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59090-3-T-04-F	-	-	View	Buy Now

59090-3-T-04-F Overview

Proximity Sensors CO 5W 750mm Vane Sensor

59090-3-T-04-F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Proximity Sensors
RoHS	Details
Sensing Method	Magnetic
Sensing Distance	11.75 mm
Mounting Style	Screw
Output Configuration	SPDT-CO
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Packaging	Bulk
Description/Function	Heavy duty vane sensor
Height	23.25 mm
Length	32.5 mm
Width	32.25 mm
Barrel Size	32.5 mm x 32.25 mm x 23.25 mm
Operating Supply Current	180 mA, 250 mA
Operating Supply Voltage	120 VAC, 175 V
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Reed Sensors

Vane Sensor > 59090

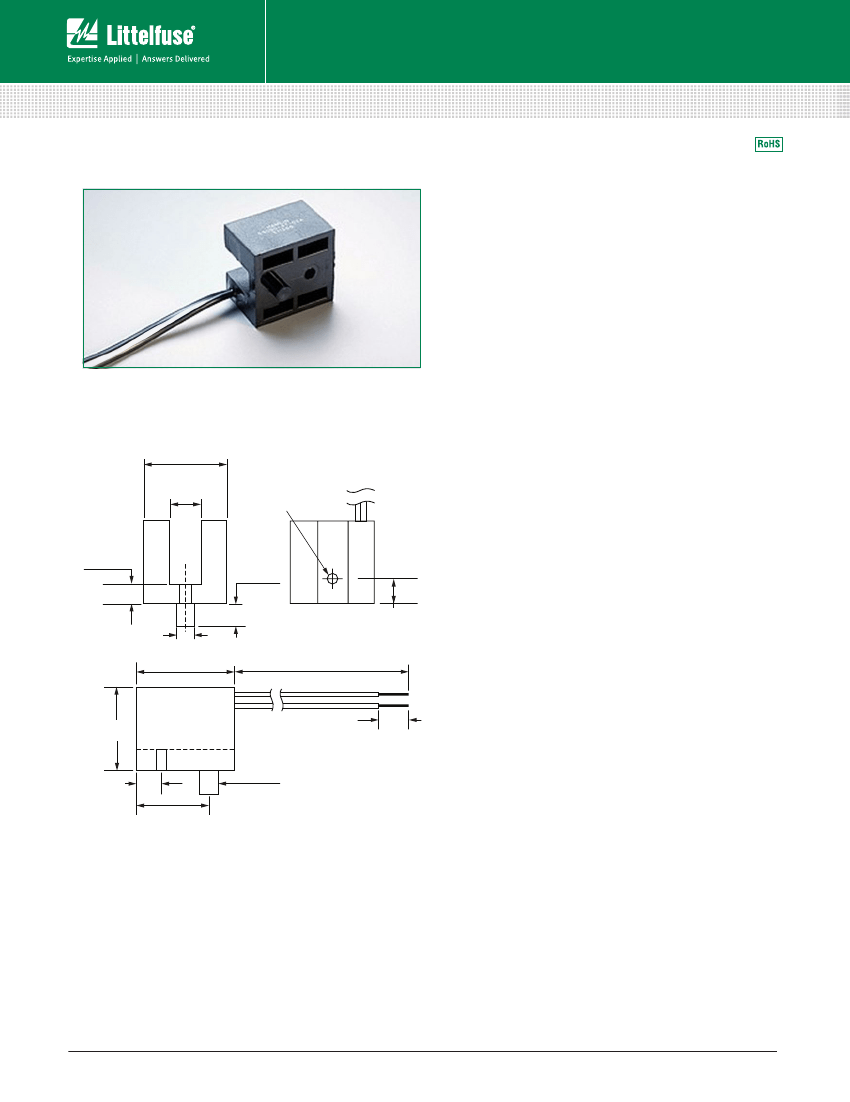

59090 Heavy Duty Vane Sensor

Description

The 59090 is a robust reed vane sensor with integral actuator magnet. It’s

actuation occurs when a suitable low carbon steel vane passes through the slot

between the magnet and switch. It has different contact types such as normally

closed, high voltage normally closed and changeover. It is capable of switching

up to 265Vac/300Vdc at 10VA. It is ideally suited to position and limit sensing,

security, linear actuator, industrial process control and shaft rotation. It is also

suited for heavy duty applications such as off-road and heavy vehicles and

farm machinery.

Features

Dimensions

Dimensions in mm (inch)

32.25±0.25

(1.27±.010)

11.75±0.25

(0.46±.010)

Ø4.175±0.075

(0.16±.003)

• Sensor and magnet contained in

single housing

• Sensor operates when ferrous vane

passes through slot

• Normally closed standard

• Choice of cable length and

connector

Benefits

• Hermetically sealed, magnetically

operated contacts continue to

operate long after optical and other

technologies fail due to

contamination

• Quick and reliable single screw

mounting with location feature

• No standby power requirement

5.25±0.25

(0.20±.010)

5.75±0.25

(0.22±.010)

10.00±0.25

(0.40±.010)

Ø6.10±0.10

(0.24±.003)

32.50±0.25

(1.28±.010)

Applications

• Position and limit sensing

• Security system switch

• Linear actuators

• Industrial process control

• Shaft rotation sensing

• Off-Highway or Agriculture

equipment compatible

300±10mm

(11.81±.394)

23.25

(0.915)

6.35 NOM.

(0.250)

10.00

(0.394)

24.25

(0.955)

Ø6.20/6.00

(0.244/0.236)

Revised: 10/20/15

Specifications are subject to change without notice.

littelfuse.com
