PSHDB0032 Overview

Industrial Pressure Sensors FEMA

PSHDB0032 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Honeywell
Product Category	Industrial Pressure Sensors
Product	Pressure Switches
Operating Pressure	0 bar to 3 bar
Pressure Type	Differential
Accuracy	0.4 %
Output Type	Digital / Analog
Port Size	G 1/4
Operating Supply Voltage	35 V
Packaging	Bulk
Pressure Port	Port
Mounting Style	Panel
Maximum Operating Temperature	+ 70 C
Minimum Operating Temperature	- 20 C
Operating Supply Current	250 mA
Factory Pack Quantity	1

Preview

Download Datasheet

View All

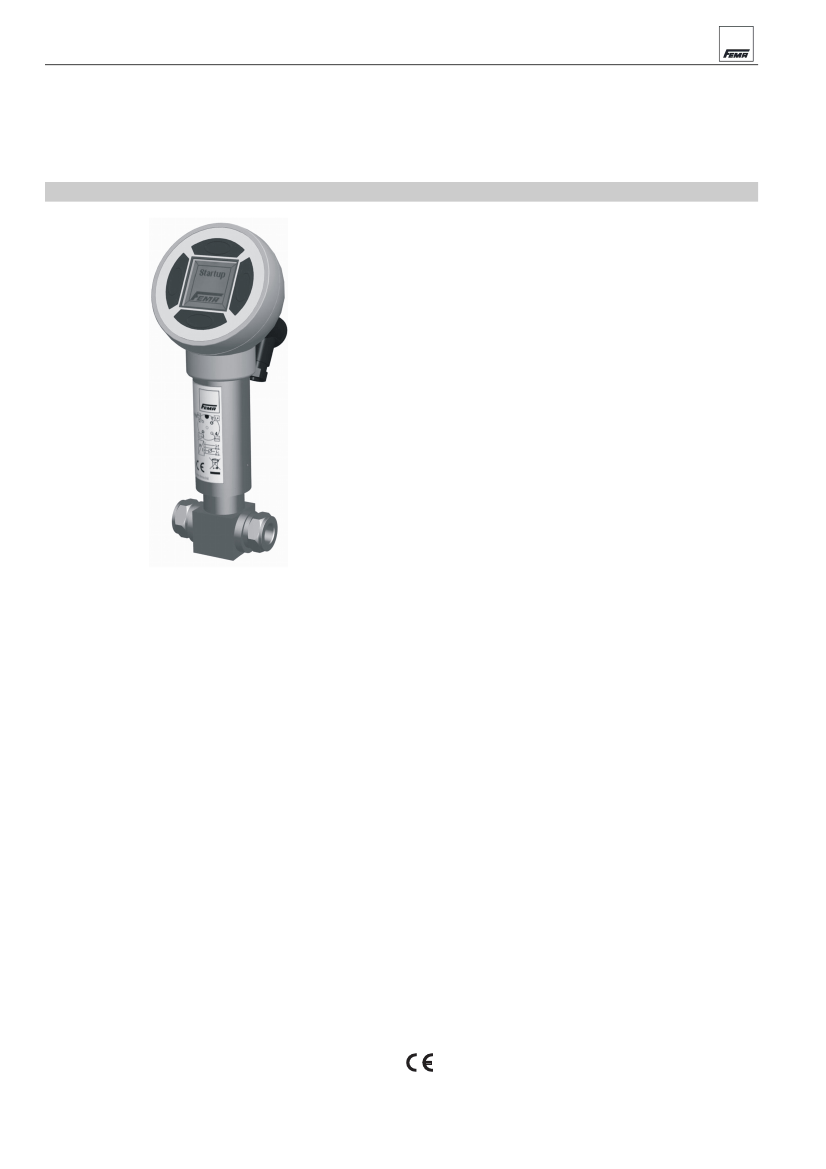

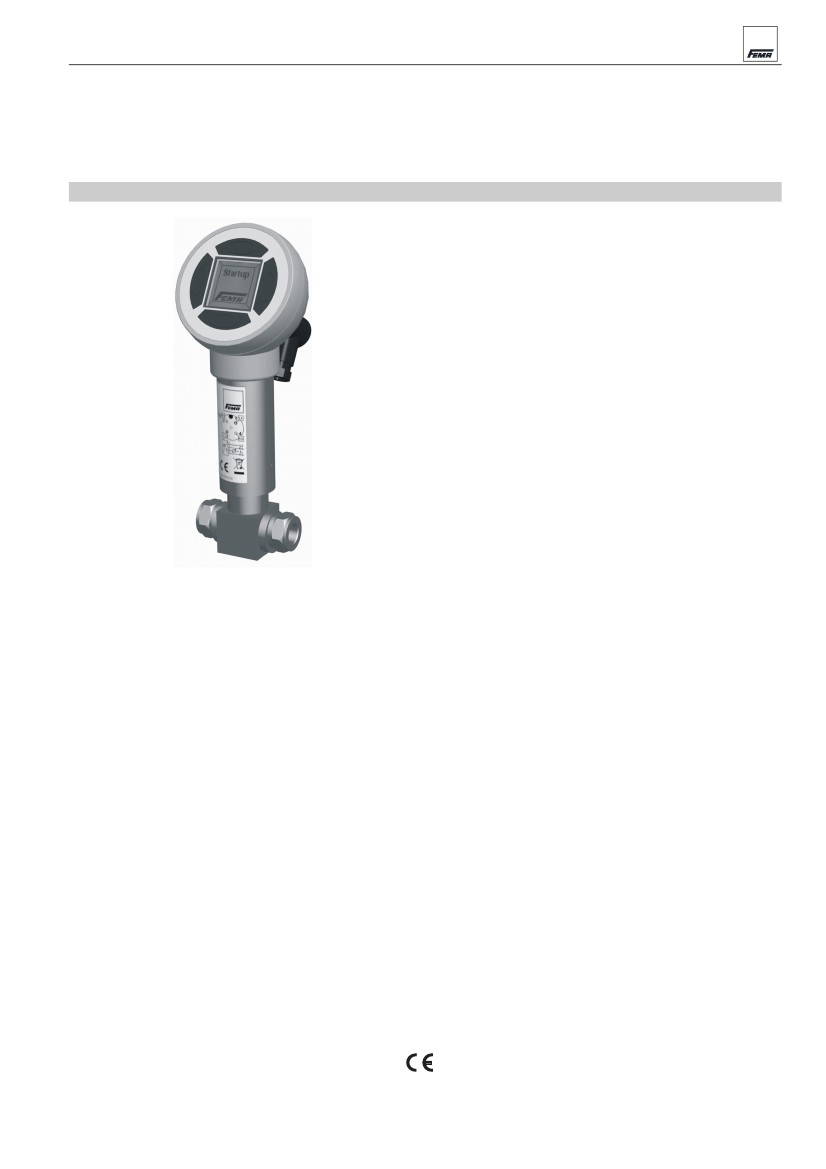

Smart DCM DIFF

ELECTRONIC DIFFERENTIAL PRESSURE SWITCHES

PRODUCT DATA

TECHNICAL DATA

Materials

Parts in contact w/ medium Stainless steel 1.4404 (AISI

316L)

Chemical resistance

4C4 as per EN 60721-3-4

HMI

PA66 GB30

Total weight

600 g

Sensor type

Piezo

Storage temperature

-30...+80 °C

Ambient (operating) temperature and humidity

Ambient temperature

-20...+70 °C

Humidity

0...95% r.h., non-condensing

Temperature of medium

-20…+80 °C

Climate class

Indoors

Outdoors

Mechanical stability

Vibration

4K4H as per EN 60721-3-4

3K8H as per EN 60721-3-3

10 g as per IEC 68-2-6

(up to 2000 Hz)

50 g as per IEC 68-2-27

see Table 1.

0…20 bar (differential)

100 ms

according to EN 61326

II as per EN 61010

IP65 as per EN 60529-2 (with

M12 connector

2 x G¼” internal thread

4-prong A-coded M12x1 plug

18…35 Vdc, max. 30 mA

(without load)

250 mA (overcurrent protection)

SUPPLY

minus 5 V (min.)

GND plus 0.5 V (max.)

max. 300 ms

passive: V

SUPPLY

minus 2 V

active:

≤

0.5 V

GENERAL

Honeywell FEMA's Smart DCM DIFF Electronic Differential

Pressure Switches are microprocessor-controlled pressure

measurement devices for differential pressures of 0…20 bar.

They are suitable for an extremely wide range of applications,

including the precision recording, monitoring, and control of

system pressures. They come complete with an angled

M12x1 plug and are mounted directly to the pipe via two

G1/4" internal thread connections.

Mechanical shock

Pressure resistance

Pressure meas. range

Cycle time

Protection rating

EMC

Safety class

Protection class

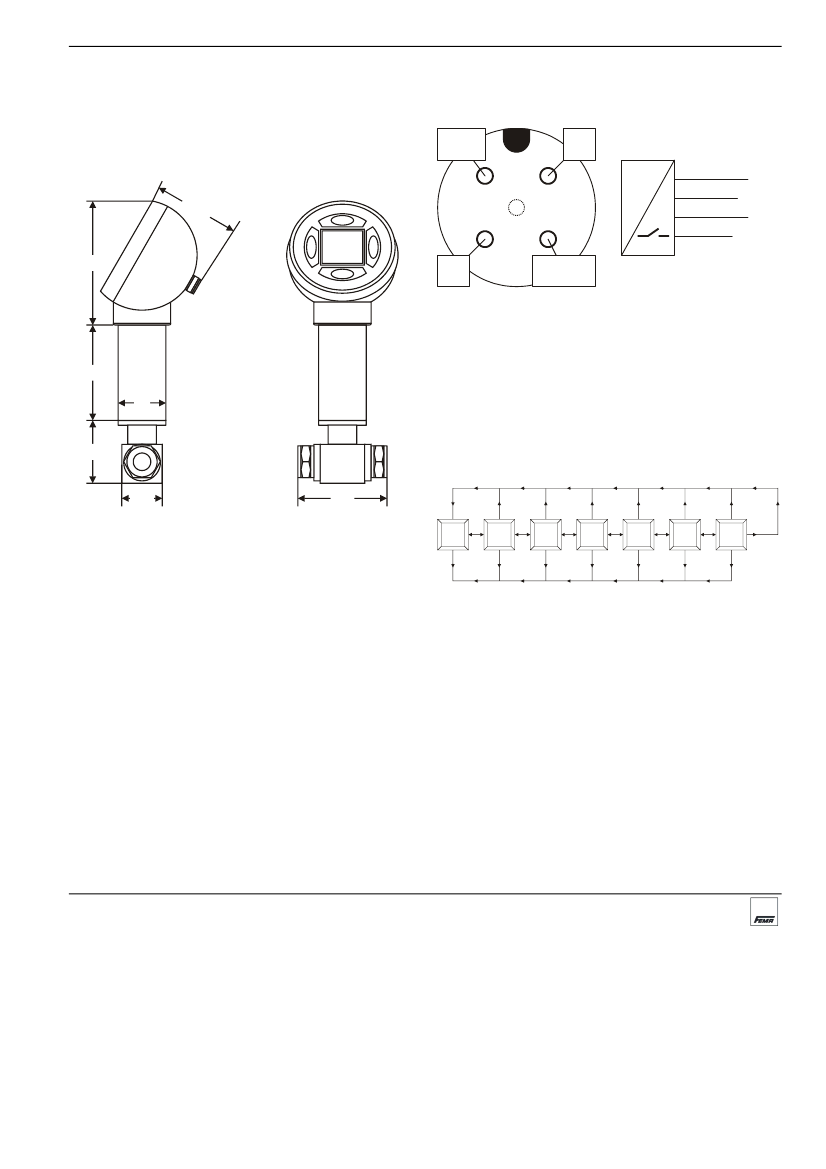

Process connection

Electrical connection

Power supply

Main switch load

Switch output

Output, high level

Output, low level

Reaction time

WARN output voltage

FEATURES



Open-collector

Configurable as min./max./window monitor

Adjustable drop-in/drop-out delay

Hysteresis defined by set-point and reset-point

LCD graphical display (Human-Machine-Interface models,

only) can be rotated (in 90° steps, by software) for better

readability; HMI can be freely swiveled 310°

Self-monitoring electronics

Sensor accuracy, span, offset, and long-term drift: See

Table 2



U.S Registered Trademark



MU0B-0625GE51 R1209
