AXT316154 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> AXT316154

AXT316154: DescriptionBoard to Board & Mezzanine Connectors CONN SOCKET 16 POS 0.4mm; CategoryThe connector; File Size549KB，11 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

AXT316154 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AXT316154	-	-	View	Buy Now

AXT316154 Overview

Board to Board & Mezzanine Connectors CONN SOCKET 16 POS 0.4mm

AXT316154 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Number of Positions	16 Position
Pitch	0.4 mm
Termination Style	SMD
Mounting Angle	Vertical
Current Rating	300 mA
Voltage Rating	60 V
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Contact Plating	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Factory Pack Quantity	3000

Preview

Download Datasheet

View All

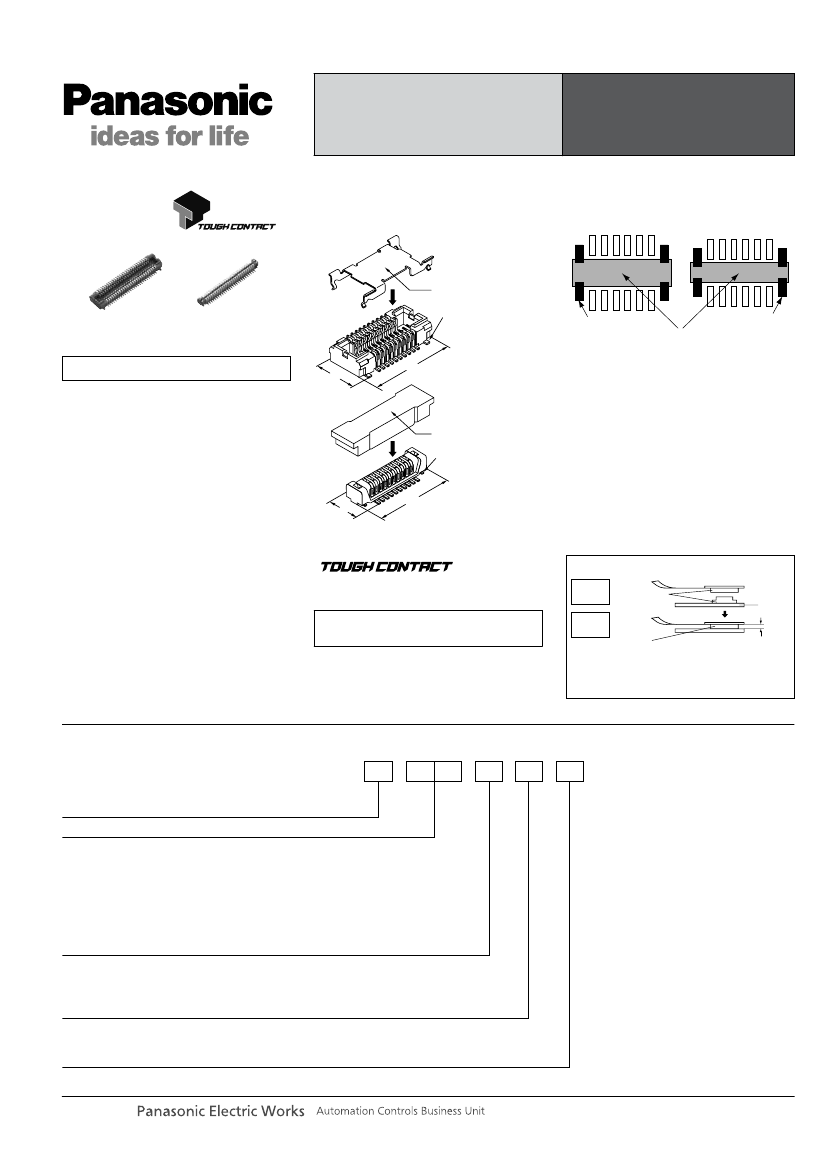

AXT3, 4

FOR BOARD-TO-BOARD

AND BOARD-TO-FPC

CONNECTION

This will contribute to weight and size

savings in devices. (Comparison made

with 20 contacts.)

NARROW PITCH (0.4mm)

CONNECTORS P4S SERIES

connector is constructed with a molded

covering.

Pickup cover (Material: SUS)

(Both covered and uncovered

types are available.)

Socket

Soldering terminals

at the four corners

Socket

Header

Soldering terminals

at the four corners Connector bottom: at the four corners

Create any thru-hole and pattern wiring.

Compliance with RoHS Directive

6.70 (20 contacts)

3.60

Pickup cover (Material: LCP)

(Both covered and uncovered

types are available.)

Soldering terminals

at the four corners

Header

5.90 (20 contacts)

2.35

4. Automatic mounting inspection is

facilitated by the gull-wing terminal

shape which makes mounting

veriﬁcation easy.

5. Connectors for inspection available

Connectors are available that are ideal

for inspection in module unit inspection

and device assembly processes.

APPLICATIONS

Compact portable devices “Cellular

phones, DVC, Digital cameras, etc”

Ideal for Board-to-FPC connections

Before

mating

After

mating

The simple lock mechanism

ensures that the connector

clicks into position when it is

inserted for reliable single-

action insertion on the PCB.

FPC

Narrow-pitch

connectors P4S

Reinforcing plate

PCB

1.5mm

3.0mm

This enables the number of pins

to be doubled while the size re-

mains the same as that for exist-

ing FPC connectors. This, in turn,

contributes to making products

and equipment more compact.

2. Strong resistance to adverse

environments! Utilizes

“

” construction

for high contact reliability.

(See Page 6 for details of the structure)

FEATURES

1. Space saving

Compared to the currently sold P4 series

with soldering terminal, 38% space is

saved in the socket and 34% space

saved in the header.

Note: If extra resistance to shock caused by

dropping is required, we recommend using

our previous P4 Series.

3. Greater ﬂexibility in connector

placement.

Pattern wiring to the connector bottom is

possible because the undersurface of the

ORDERING INFORMATION

AXT

3: Narrow Pitch Connector P4S (0.4 mm pitch) Socket

4: Narrow Pitch Connector P4S (0.4 mm pitch) Header

Number of contacts (2 digits)

Mated height

1: For mated height 1.5 mm and 2.0 mm

2: For mated height 2.5 mm and 3.0 mm

1: For mated height 1.5 mm and 2.5 mm

2: For mated height 2.0 mm

3: For mated height 3.0 mm

Functions

5: With pickup cover, with positioning bosses

6: With pickup cover, without positioning bosses

Surface treatment (Contact portion / Terminal portion)

<Socket> 4: Ni plating on base, Au plating on surface (for Ni barrier available)

<Header> 4: Ni plating on base, Au plating on surface
