K66X-B44S-NV datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> K66X-B44S-NV

Preview

K66X-B44S-NV: DescriptionD-Sub High Density Connectors HD44 F-4PRNG GR BRKT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K66X-B44S-NV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K66X-B44S-NV	-	-	View	Buy Now

K66X-B44S-NV Overview

D-Sub High Density Connectors HD44 F-4PRNG GR BRKT

K66X-B44S-NV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.646 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.09 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	2 A
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	POLYBUTYLENE TEREPHTHALATE
Housing size	3/B
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

K66X-E15P-N

Part Number Builder

LR78160

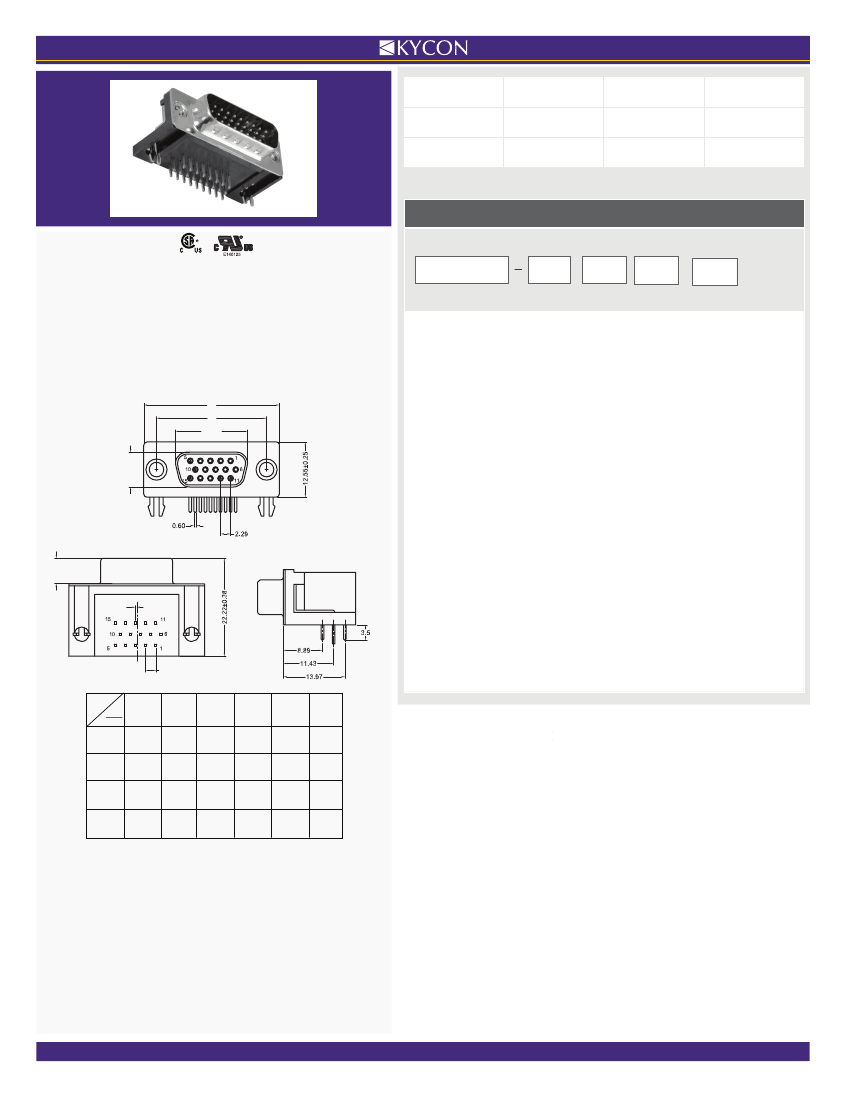

D-SUBMINIATURE CONNECTORS:

K66X

Series

K66X

Series

E15

Shell Size

Contact

P

Contact

Type

N

Mounting

Option

Plating

Option

Right Angle PCB Mount

K66X

Series Dimensions

Dimensions in mm

A

B

C, C1

Series

K66X

-

High Density D-Subminiature Connector,

Right Angle PCB Termination, 0.350” Footprint

Shell Size-Contact Option

E

- 15 Contacts

A

- 26 Contacts

B

- 44 Contacts

C

- 62 Contacts

Contact Type

P

-

Pin Contact (Plug)

S

-

Socket Contact (Receptacle)

Mounting Option

N

-

With Boardlocks and #4-40 UNC Threaded Inserts

NJ

-

With Boardlocks and #4-40 Jackscrews Installed

8.36 Plug Interior

7.90 Socket Exterior

6.1 Plug

5.8 Socket

E

Plating Option

Blank

-

Gold Flash

30

-

30µ” Gold

D

Contact Kycon for VESA and Other Options

B

±

.005

±

0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

C

±

.010

±

.0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

C1

±

.010

±

0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

D

±

.005

±

0.13

.090

2.29

.090

2.29

.090

2.29

.095

2.41

E

±

.005

±

0.13

.010

0.25

.020

0.51

.020

0.51

.023

0.58

Shell

Size

A

In

±

.015

mm

±

0.38

15

1.213

(E)

30.81

1.541

39.14

2.088

53.04

2.729

69.32

26

(A)

44

(B)

62

(C)

C = Exterior of Female Shell (S)

C1 = Interior of Male Shell (P)

Electrical Characteristics

Rated Current:

1.5A

Rated Voltage:

29Vac

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

0318
