154262 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 154262

154262: DescriptionD-Sub Standard Connectors 25P 7.3MM RA FML THREAD BOLT 4-40 UNC; CategoryThe connector; File Size120KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric View All

154262 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	154262	-	-	View	Buy Now

154262 Overview

D-Sub Standard Connectors 25P 7.3MM RA FML THREAD BOLT 4-40 UNC

154262 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	D-Sub Standard Connectors
RoHS	Details
Factory Pack Quantity	20

Preview

Download Datasheet

View All

-0,4

+0,2

38,5

-0,2

12,6

±0,3

-0,2

DETAIL X

M5:1

assembly with force

Bestückung mit Kraft

tray packaging

packaging unit 20 pcs

138

max.

3 x 28 = 84

Verpackt in Tray

Verpackungseinheit 20 Stück

0,6

±0,2

Pin 1

4 x 58 = 232

325

max.

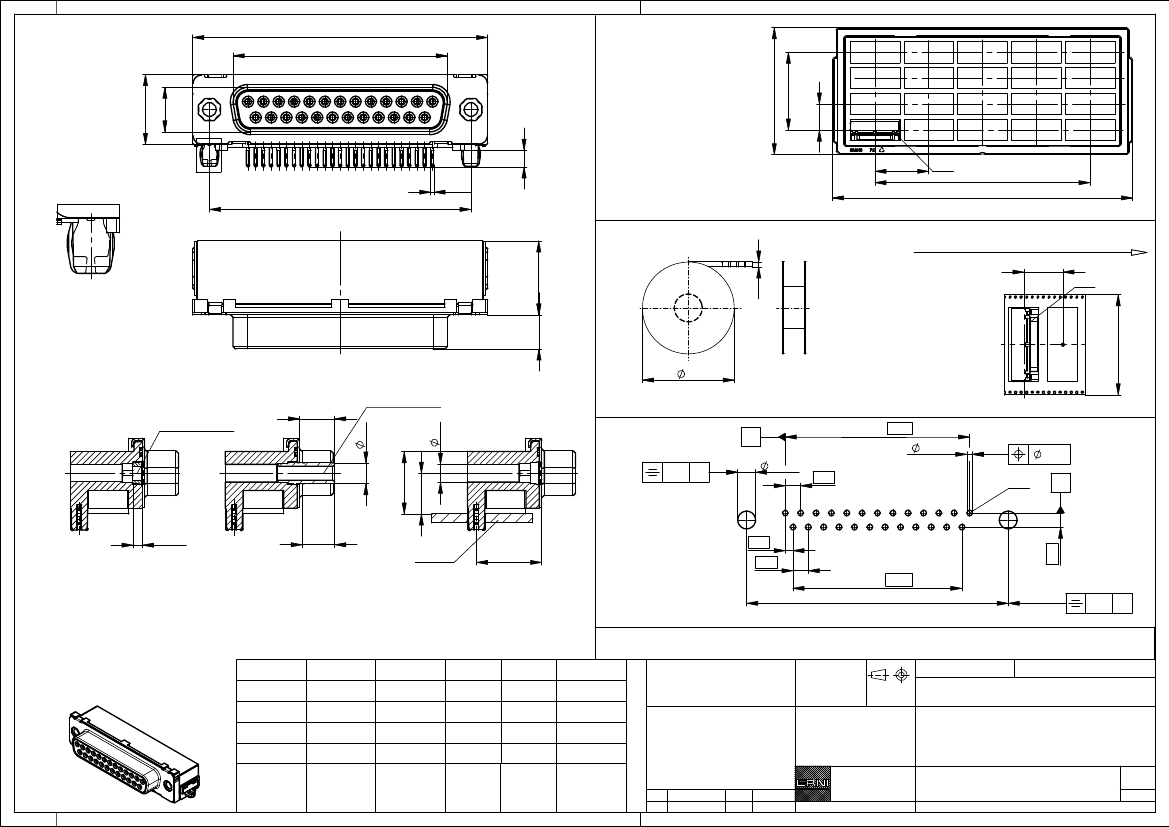

Sonstige Angaben siehe Zeichnung 204629 /

additional indications according to drawing 204629

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

13,3

Abspulrichtung -

Reel off Direction

Pin 1

6,3

-0,25

17,6

330

Mutter /

nut

Gewinde /

thread

M3 /

#4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 /

#4-40

3,2

ohne / without

Sonstige Angaben siehe Zeichnung 204655 /

additional indications according to drawing 204655

Layoutvorschlag

0,05

recommended layout

11,2

7,3

±0,1

3,2

±0,1

12 x 2,76 = 33,12

-0,06

2,76

+0,09

0,05

Pin 1

1,65

Gewindetiefe /

depth of thread

Gewindetiefe /

depth of thread

LP /

PCB

11,7

2,76

11 x 2,76 = 30,36

±0,05

Sonstige Angaben siehe Zeichnung 204626 /

additional indications according to drawing 204626

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

2,54

1,38

0,05

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

class: 2

174446

154262

154261

154260

154259

Ident-Nr.

3,2

#4-40

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

part-no.

Gurt

Ident-Nr.

part-no.

Tray

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

21.11.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-25-THR-Standard-BA8

remark

www.ERNI.com

Class

144857

TMCS
