Technical Data Sheet

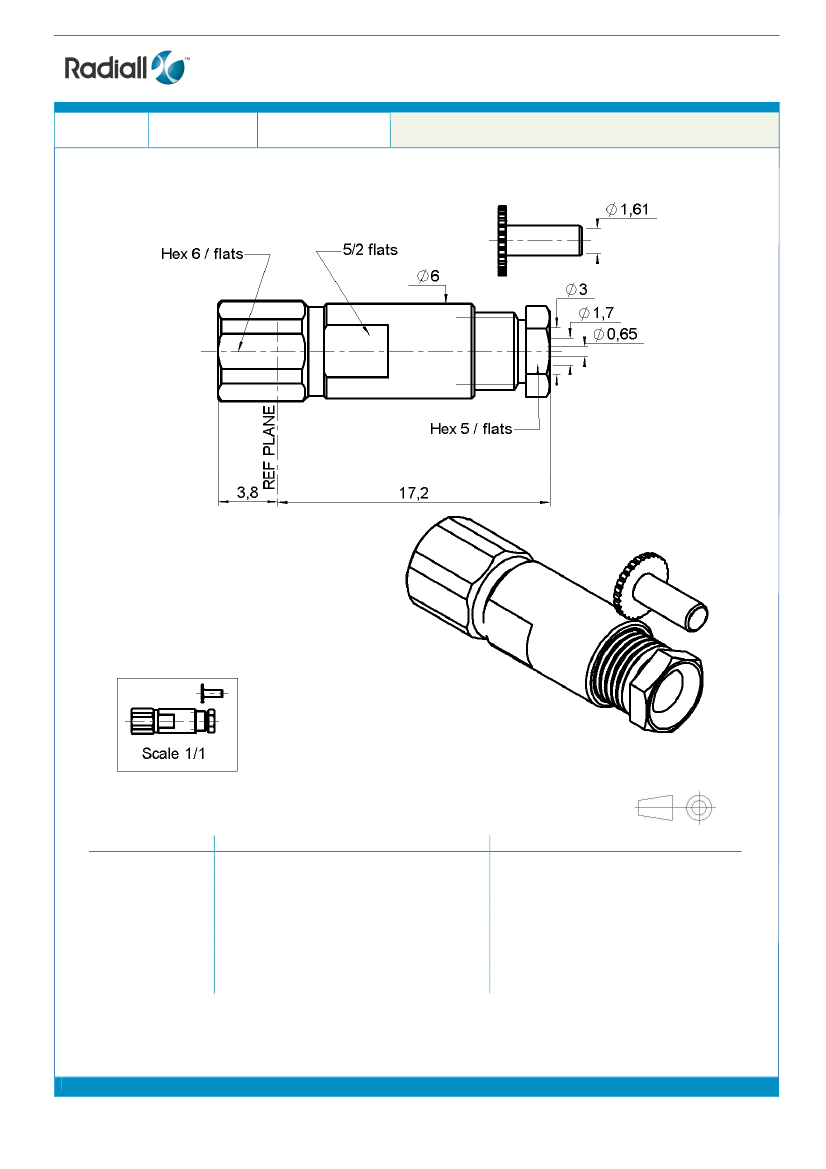

STRAIGHT PLUG CLAMP TYPE CABLE 2.6/50+75 S
PAGE
2/3
ISSUE
1427A
SERIES
SMC
PART NUMBER
R112005000
PACKAGING
Standard
100
Unit
Contact us
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
Frequency
1.20 +
VSWR
Insertion loss
RF leakage
-(
Voltage rating
Dielectric withstanding voltage
Insulation resistance
50
0-10
0,0400
0.125
62
335
1000
1000
Ω
GHz
x F(GHz) Maxi
√F(GHz)
dB Maxi
- F(GHz)) dB Maxi
Veff Maxi
Veff mini
MΩ mini
Operating temperature
Hermetic seal
Panel leakage
ENVIRONMENTAL
-65/+165
NA
NA
°
C
Atm.cm3/s
SPECIFICATION
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating End
Axial force – Opposite end
Torque
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
500
2,8000
10
10
NA
N mini
N mini
N.cm mini
Stripping
mm
a
2,5
b
1,2
CABLE ASSEMBLY
c
4,5
d
4,5
e
0
f
0
Assembly instruction:
30
NA
70
5,0000
N.cm
N.cm
N.cm
mm
Recommended cable(s)
RG 179
RG 187
RG 188
KX 22A
RG 316
Characteristics indicated on this data sheet are those that can be achieved with the highest
performance cable. Intrinsic limitations of the cable may diminish the performance of the
assembly
Cycles mini
g
Cable retention
- pull off
- torque
110
NA
N mini
N.cm
TOOLING
Part Number
.
.
Description
.
Hexagon
OTHER CHARACTERISTICS
-
This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written
agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
Technical Data Sheet
STRAIGHT PLUG CLAMP TYPE CABLE 2.6/50+75 S
PAGE
3/3
ISSUE
1427A
SERIES
SMC
PART NUMBER
R112005000

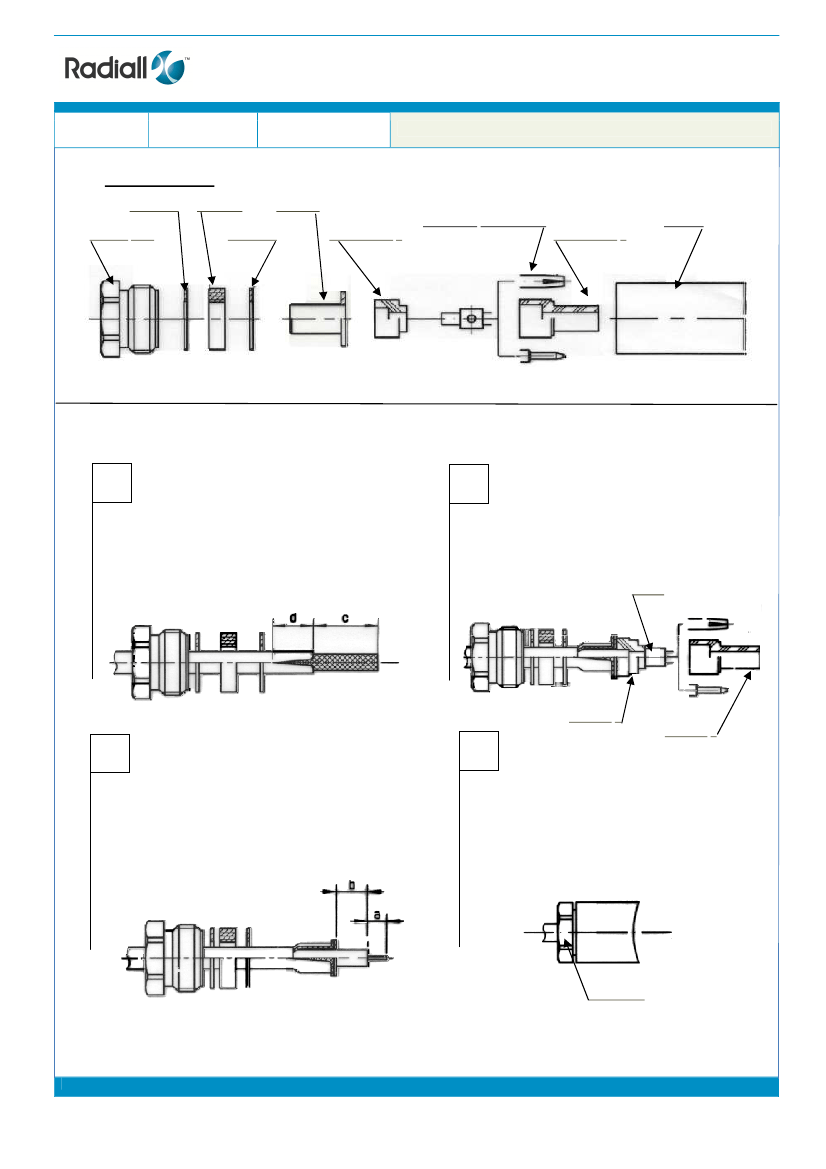

COMPONENTS
WASHER
CLAMP NUT
GASKET
SLEEVE
CENTER CONTACT
WASHER
INSULATOR 1
INSULATOR 2
BODY
1
-Mount clamp nut, washer, flat gasket,
washer.
-Strip the cable, make 2 slits 180° apart
in the sheath.
3
-Mount the insulator 1
-Mount the center contact and solder.
-Mount the insulator.2
Solder
Insulator 1
Insulator 2
2
-Mount the braid-clamp.
(for cable 2.6/50 use knurled clamp , for cable
2.6/75 use smooth clamp.
-Cut braid flush
Ø
of braid clamp.
-Strip off the dielectric.
4
-Screw the cable assembly into the body.
-Recommended coupling torque 70 Ncm
(Recommended tool R282.321.010).
Hex 5/ flats
