76055-7606

Description
High Speed / Modular Connectors Impact BP 5x16 GL/W pact BP 5x16 GL/W Sn
CategoryThe connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

76055-7606 Online Shopping

Suppliers Part Number Price MOQ In stock
76055-7606 - - View Buy Now

76055-7606 Overview

High Speed / Modular Connectors Impact BP 5x16 GL/W pact BP 5x16 GL/W Sn

76055-7606 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryHigh Speed / Modular Connectors
RoHSDetails
Number of Rows15 Row
Termination StyleThrough Hole
Contact PlatingGold
Current Rating750 mA
Voltage Rating30 VAC/DC
Factory Pack Quantity40
Unit Weight0.312915 oz

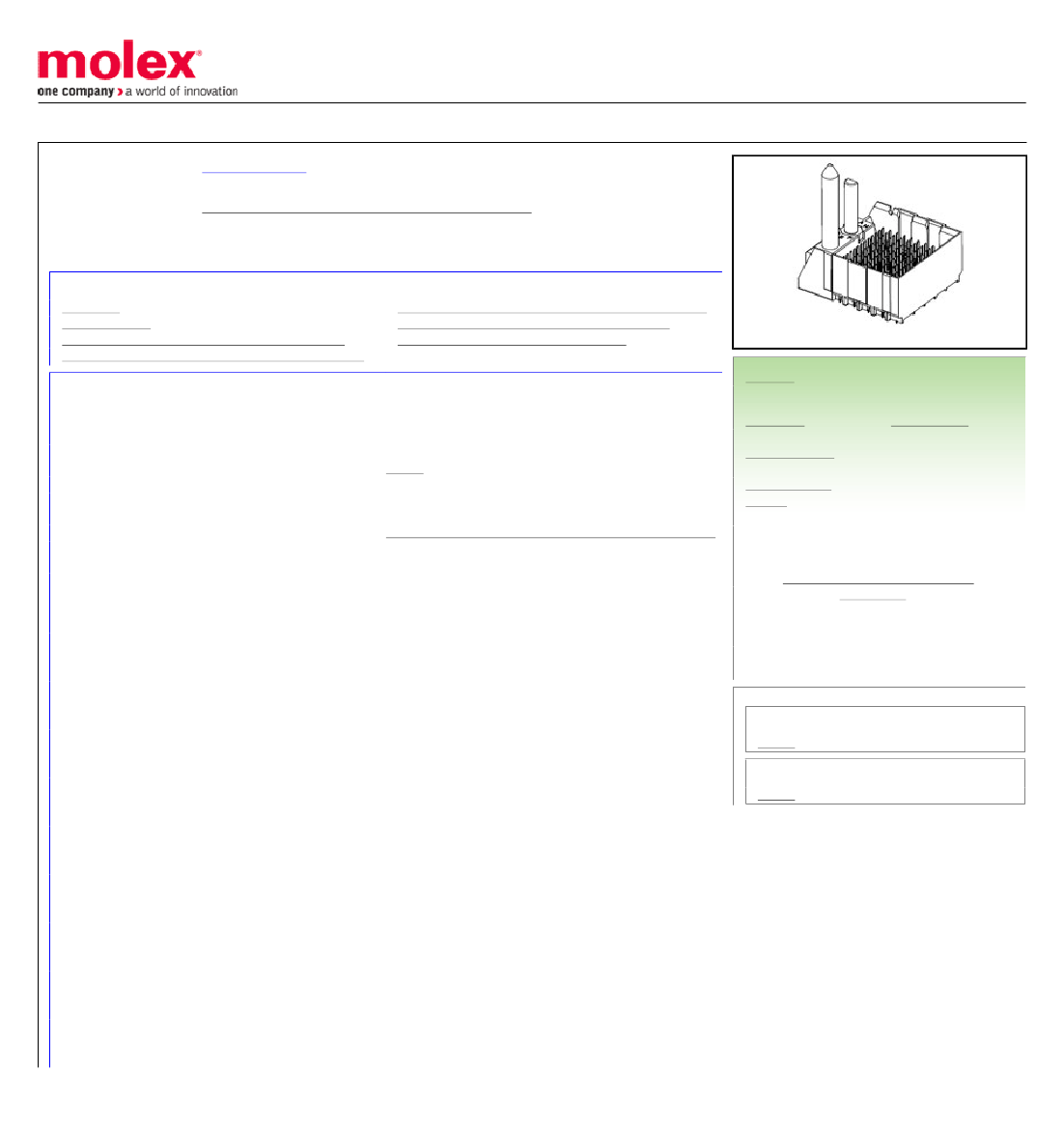

This document was generated on 02/22/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0760557606
Active
Impact™ Backplane Connectors and Cable Assemblies
Impact 100 Ohm 5 Pair Vertical Backplane Header, Left Guided, Right Endwall, 16
Columns, 240 Circuits, Pin Length 4.50mm, Plated Through Hole Dimension 0.39mm,
Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-76060-999-001 (PDF)
Application Specification AS-76060-990-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Application Tooling Documents
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Application Specification AS-76060-9999-001 (PDF)
Packaging Specification PK-70873-759 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Reviewed
E29179
Backplane Connectors
76055
Conventional, Mezzanine
TM-622018799
PCB Header
Impact™ Backplane Connectors and Cable Assemblies
Impact
883906414450
240
240
Black
200
No
94V-0
Yes
None
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
8.871/g
16
5
15
Vertical
1.40mm
No
Yes
1.00mm
Tray
1.90mm
1.90mm
0.762µm
Yes
No
-55°C to +85°C
Through Hole - Compliant Pin
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Reviewed
Not Reviewed
Not Reviewed
Search Parts in this Series
76055 Series
Mates With
76060 Impact 100 Ohm Daughtercard
