1712502: DescriptionFixed Terminal Blocks SPTA 1,5/ 8- 3,81 BD:FAN-PC; CategoryThe connector; File Size79KB，2 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1712502 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1712502	-	-	View	Buy Now

1712502 Overview

Fixed Terminal Blocks SPTA 1,5/ 8- 3,81 BD:FAN-PC

1712502 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1712502

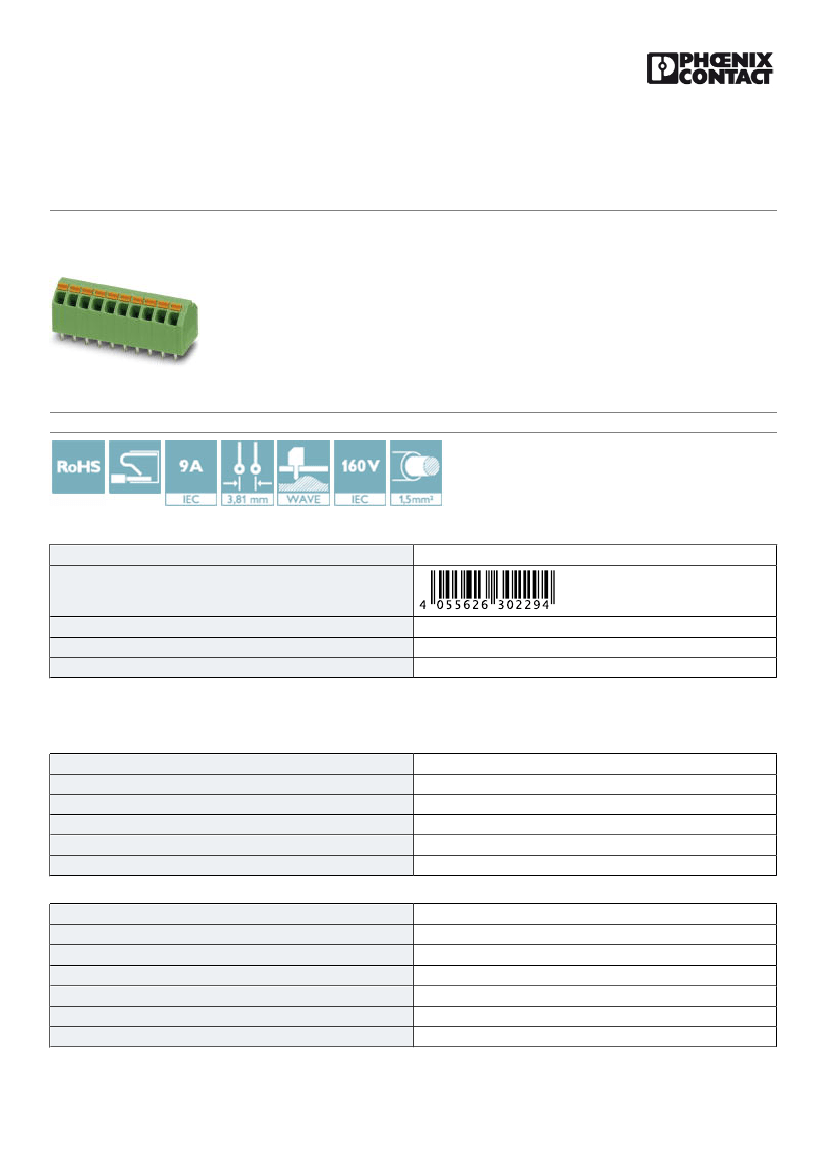

PCB terminal block - SPTA 1,5/ 8-3,81 BD:FAN-PC - 1712502

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB terminal block, Nominal current: 9 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 8,

Connection method: Push-in spring connection, Mounting: Wave soldering, Color: green

The illustration shows the 10-

position version

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4055626302294

85369010

Made to Order (non-returnable)

50 STK

Technical data

Dimensions

Pitch

Dimension a

Length of the solder pin

Pin dimensions

Pin spacing

Hole diameter

3.81 mm

26.67 mm

3.4 mm

0,6 x 1,0 mm

7 mm

1.1 mm

General

Insulating material group

Rated voltage (III/2)

Nominal current I

N

Nominal cross section

Solder pin surface

Flammability rating according to UL 94

Number of positions

I

160 V

9A

1.5 mm²

Sn

V0

8

11/14/2016 Page 1 / 2
