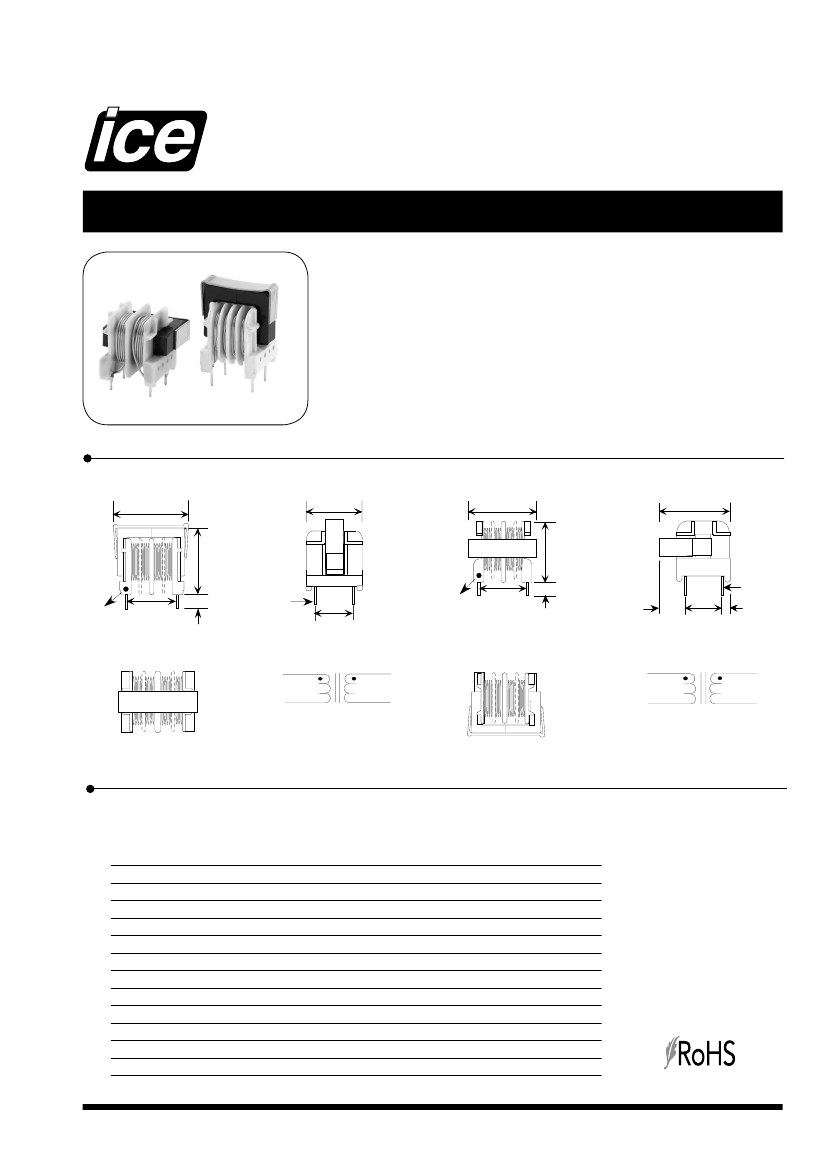

Line Filters
Features
• Broad frequency attenuation
• UU cores for compact design
• Wide selection available
• Custom designs available
LFU16 Series
Applications
• Off-Line Switch Mode Power
Supplies
• Conducted EMI Filters
• Office Equipment
• Medical Equipment
Packaging:
Tray=100 pieces, Box=12 trays, Box=1200 pieces
LFU16 Vertical
22.5 max
18.5 max
LFU16 Horizontal
22.5 max
24.0 max
BBB- CC C - DE
27.5
max
20.5
max
color dot
for pin 1
13.0
4.0+/-0.5
0.7 dia
color dot
for pin 1
13.0
4.0+/-0.5
10.0 max
0.7 dia
4.0 max
10.0
10.0
Front View
2
3
Side View
2
Front View
3
Side View
1
4
1
4
BBB-CC C - DE
2
3
2
3
1
4
1
4
Top View
Schematic
Top View
Schematic
units: mm
Electrical Specifications
Part Number
LFU16-060-313-2_
LFU16-080-193-2_
LFU16-130-103-2_
LFU16-170-772-2_
LFU16-200-492-2_
LFU16-250-412-2_
LFU16-080-213-4_
LFU16-100-123-4_
LFU16-150-522-4_
LFU16-180-272-4_
LFU16-230-232-4_
LFU16-280-192-4_
Inductance
1
(mH nom.)
44.22
27.19
14.86
11.06
7
5.84
29.6
16.66
7.4
3.86
3.29
2.76
Inductance
1
(mH min.)
30.95
19.03
10.4
7.74
4.9
4.09
20.72
11.66
5.18
2.7
2.3
1.93
DCR
(Ω max.)
0.73
0.42
0.25
0.17
0.12
0.085
0.6
0.35
0.18
0.11
0.08
0.065
Rated
5
Current (A)
0.6
0.8
1.3
1.7
2
2.5
0.8
1
1.5
1.8
2.3
2.8
SRF
(kHz, typ.)
177
184
284
353
404
476
379
537
901
1420
1475
1486
1. Tested at 1 kHz,
0.1 Vrms, series.
2. Electrical specs at
25˚ C.
3. Operating range:
-40˚ C to +130˚ C.
4. Meets UL 94V-0.
5. Rated current produces
a temperature rise
of 40˚ C.
6. Specify H or V at end
of part number for
horizontal or vertical
core arrangement.
Specifications subject to change without notice.

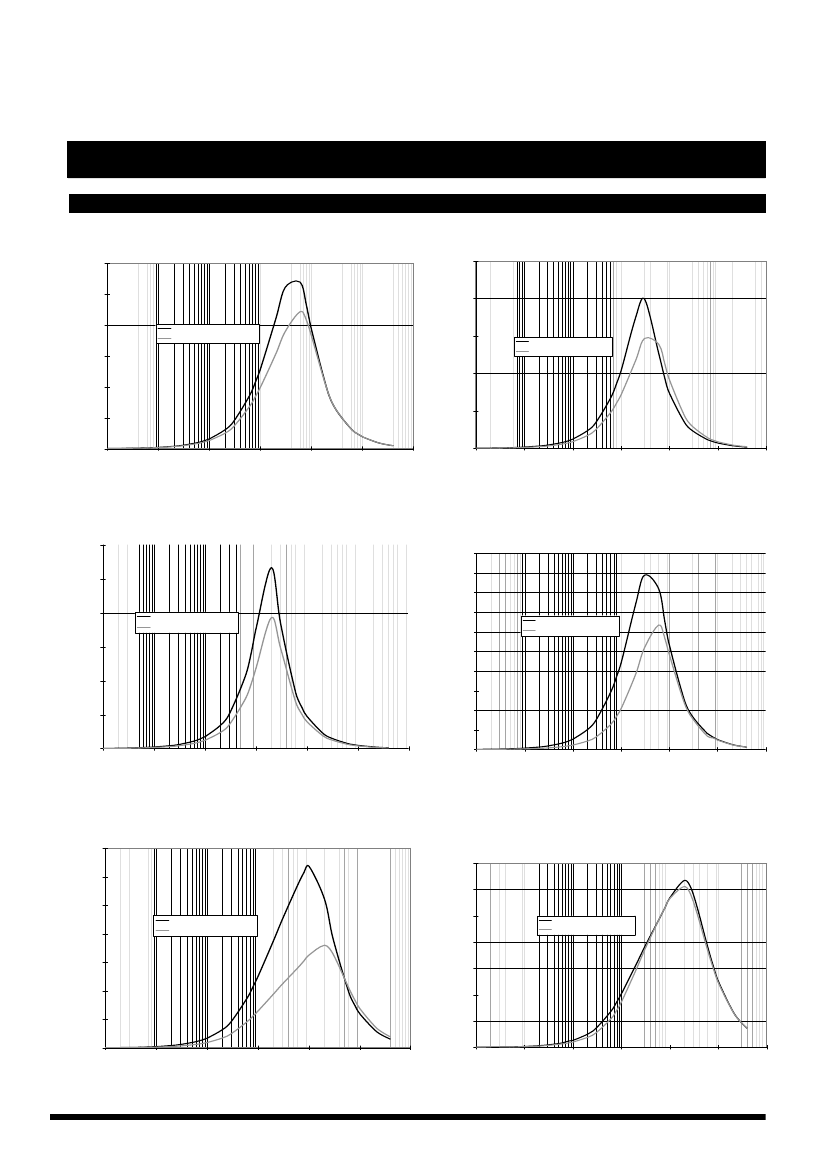

(10/06) LFU16-1
