RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11D
OPTIONS AND PART IDENTIFICATION
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
ARJ11D -
-
-
-
Left LED color
Mechanical
Schematic
(e.g. B for
Yellow,
AB for Green-
Yellow)
Blank: No LED
A:
Green
B:
Yellow
C: Amber
D: Orange
Right LED
color
(e.g. B for
Yellow,
AB for Green
Yellow)
Blank: No LED
A:
Green
B:
Yellow
C: Amber
D: Orange
LED
polarity
Blank: No
LED
E
~
I
(Please
see
7.0
LED
polarity
section)
Turns Ratio
(Tx)
Turns Ratio
(Rx)
Gold
plating
MA, MB
(Please
see
mechanical
section)
SA
~
SR
(Please
see
schematic
section)
K:
1CT:1.41
L: 1CT:1
M: 1CT:1CT
N: 1.414:1CT
O: 1CT:1.41CT
P: 1:2CT
Q: 1:1.414CT
R: 1CT:2.5
S: 1CT:1.41
T: 1CT:1
U: 1CT:1CT
V:
1.414:1CT
W:1CT:1.41CT
X:
1:2CT
Y:
1:1.414CT
Z:
1CT:2.5
1: 3u
“
2: 6u
“
3: 15u
“
4: 30u
“
5: 50u
“

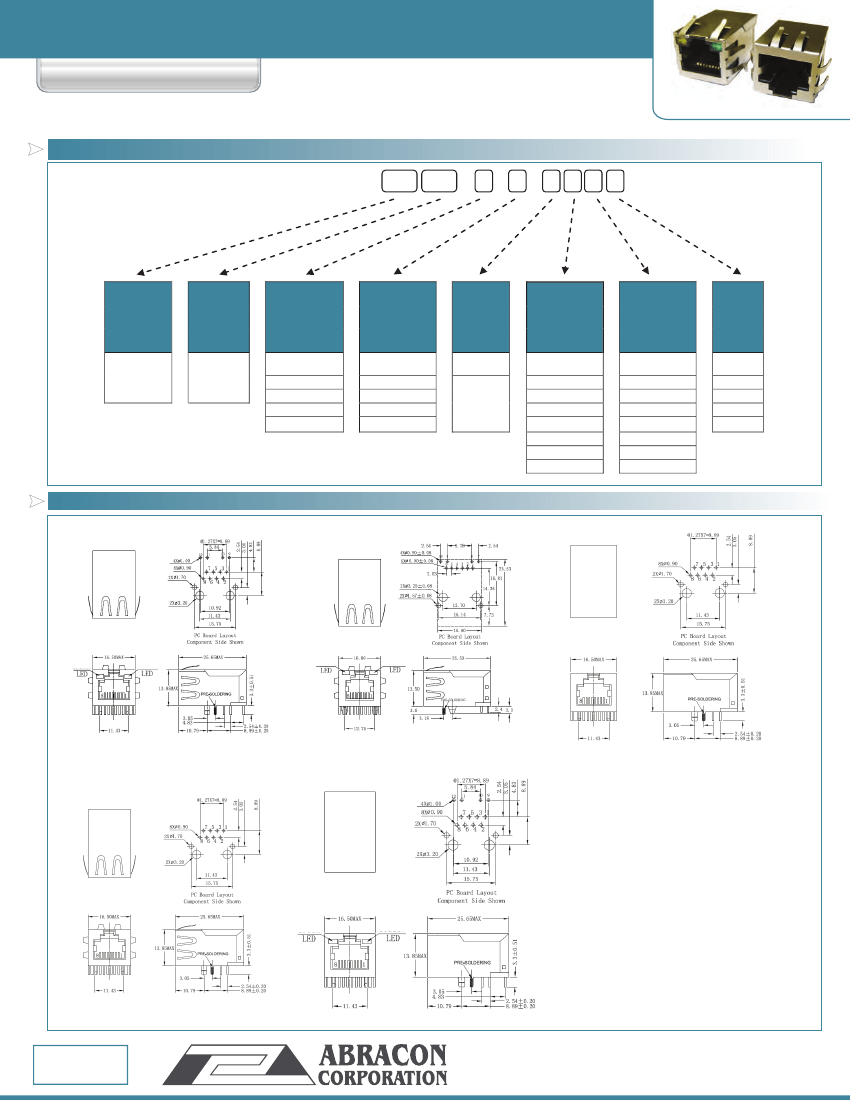

MECHANICAL DIMENSIONS
MA
MB
ME
MC
MD
Dimension: mm. All tolerances are ±0.25
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 05.03.11
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11D

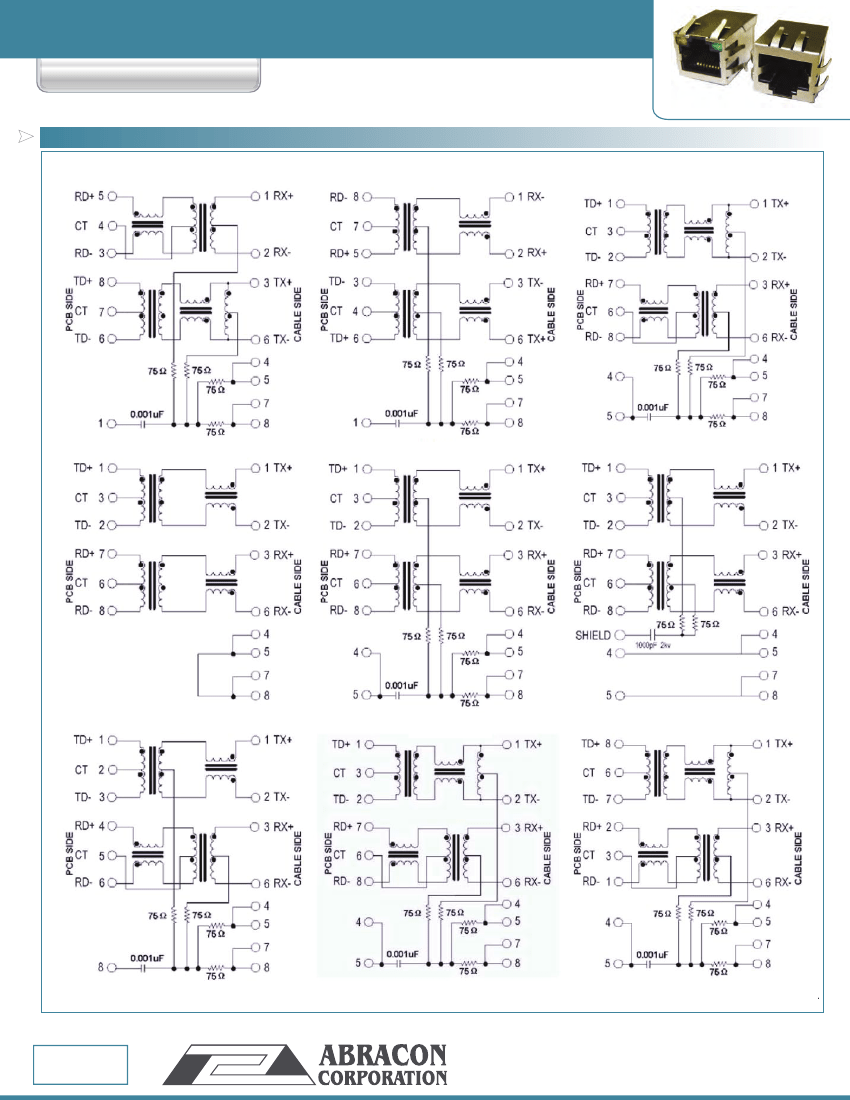

SCHEMATICS
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
SA
SB
SC
SD
SE
SF
SG
SH
SI
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 05.03.11
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11D

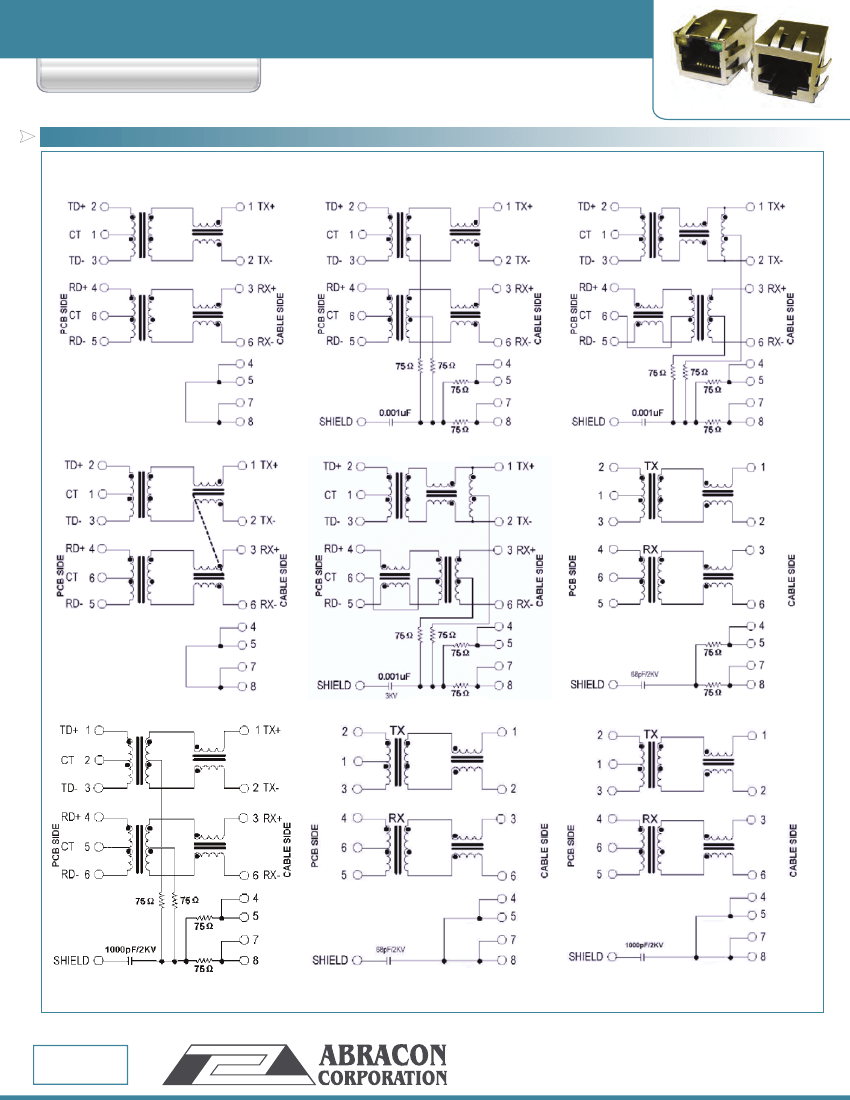

SCHEMATICS - continued
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
SJ
SK
SL
SM
SN
SO
SP
SQ
SR
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 05.03.11
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11D
LED POLARITY
E
F
G
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
H
Green
RIGHT
10
LEFT
Green
9
LEFT
8
7
Orange

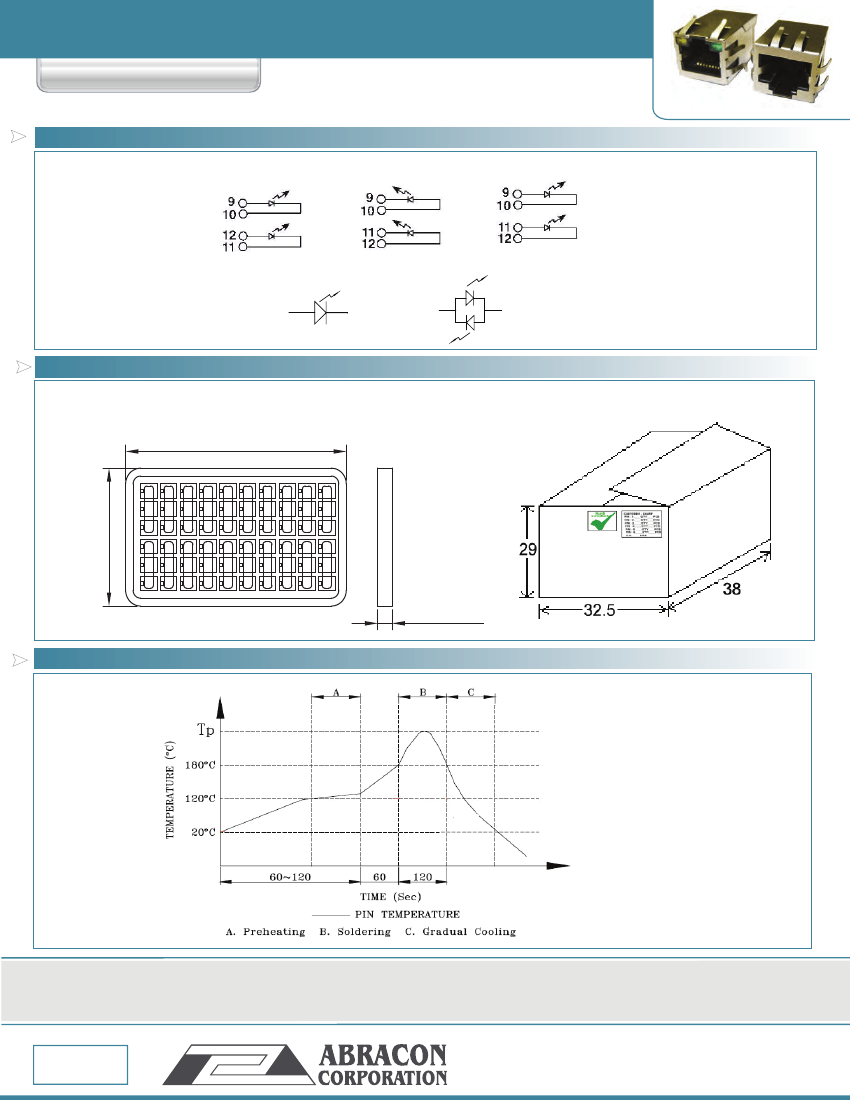

PACKING: 60pcs/tray
Packing
60pcs/tray
Packaging material: PET
Outer carton unit
1320 pcs/ 22 Trays/box
29.5±0.5
17.5±0.5
1.90±0.2
REFLOW PROFILE:
Peak temperature(Tp) : 250±10℃
Peak temperature(Tp) time : 5sec max
Peak temperature(Tp) time :
