0.283
7.19
0.020
0.50
0.307
7.80
0.240
6.10
0.197
5
0.053
1.35
0.043
1.10
0.283
7.20
0.323
8.20
0.362 REF
9.19
0.925 REF
23.50
B
0.402
10.21
0.079
2
0.106
2.70
0.575
14.61
B
0.500
12.70
RECOMMENDED CABLE: BELDEN B1694A
CRIMPED FERRULE HEX CRIMP SIZE .278 [7.08].
CRIMPED CONTACT PIN SQUARE CRIMP SIZE .042 [1.07].
ALTERNATE CONTACT PIN RADIAL CRIMP TOOL:
- DANIELS HAND TOOL NUMBER: MH995
- DANIELS POSTIONER NUMBER: K1803
DO NOT REMOVE FOIL

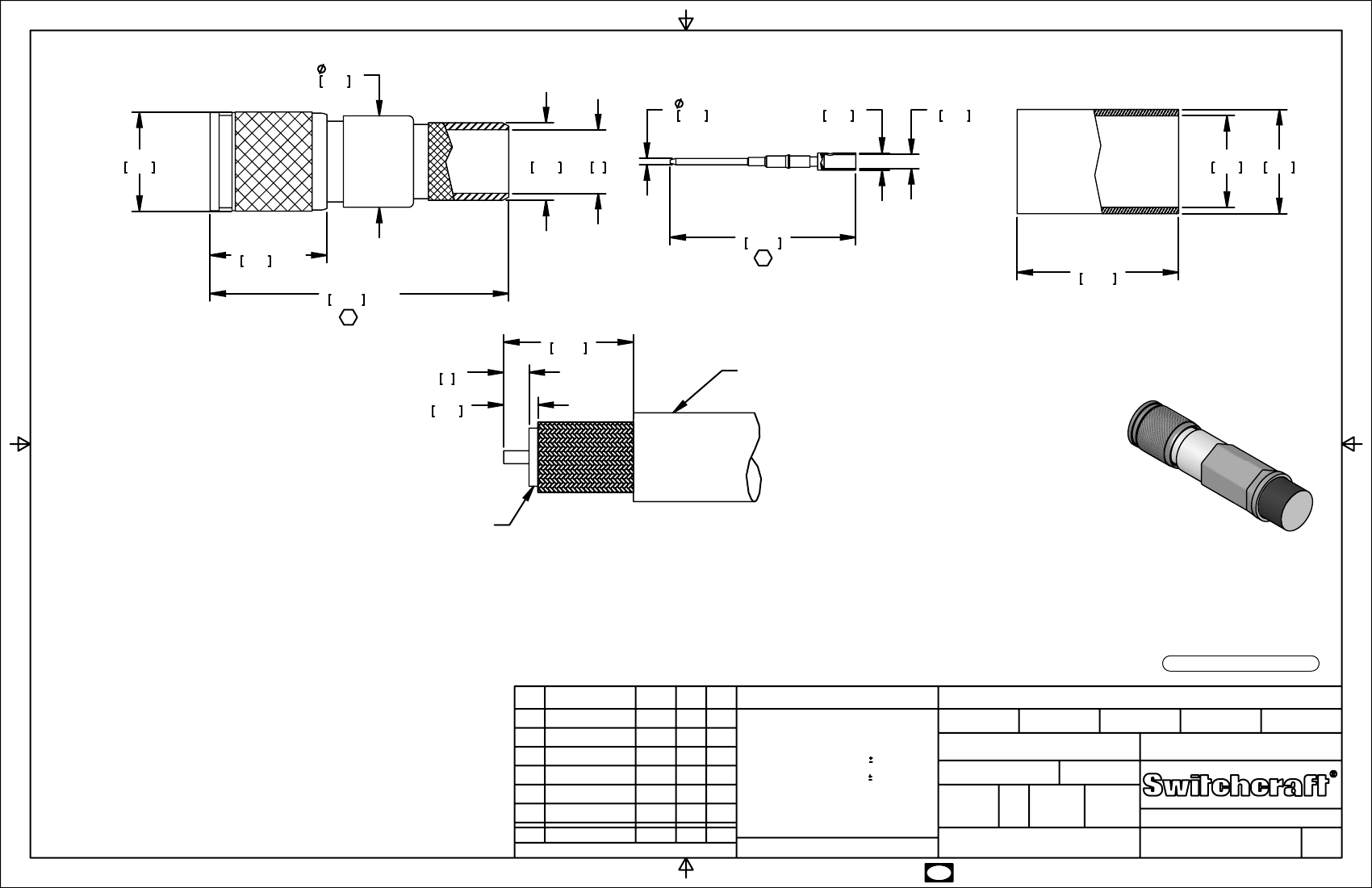

RECOMMENDED CABLE STRIPPING AND CRIMPING DIMENSIONS
NOTES:
1. BODY: COPPER ALLOY, NICKEL PLATED.
2. CONTACT PIN: COPPER ALLOY, GOLD PLATED.
3. SPRING: BERYLLIUM COPPER, NICKEL PLATED.
4. TINE CONTACT: BERYLLIUM COPPER, GOLD PLATED.
5. INSULATOR: TEFLON
6. FERRULE: COPPER ALLOY, NICKEL PLATED.
7. CHARACTERISTIC IMPEDANCE: 75 OHMS, 3 GHz BANDWIDTH.
8. RETURN LOSS: MEETS HDTV SMPTE 424M SPECIFICATION.
9. DIMENSIONS ARE FOR REFERENCE ONLY.
10. THIS PRODUCT IS RoHS COMPLIANT.
B
A
REV
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
26729
26641
ECO NUMBER
SIZE
FINISH
*
WIDTH
0.02
0.005
SPEC No.
FIRST USED ON
DATE DRAWN
*
*
*
MULT
*
LBS/M
MATERIAL
SPEC No.
*
TEMPER
SEE NOTES
*
*
*
SCALE
4:1
01/24/12
11/24/10
DATE
TS
ZS
BY
BDS
SRC
APVD
BY
04/29/10
ZS
04/29/10
SRC
CHKD
04/29/10
SRC
PART No.
APVD
SHEET
1
OF
1
REV
REVISIONS
DO NOT SCALE DRAWING
NAME
DIN 1.0/2.3 PLUG, 75 OHMS, RoHS
DIN1694A
B
SolidWorks CAD File
B
