M80-8912601 datasheet, PDF - EEWORLD Datasheet

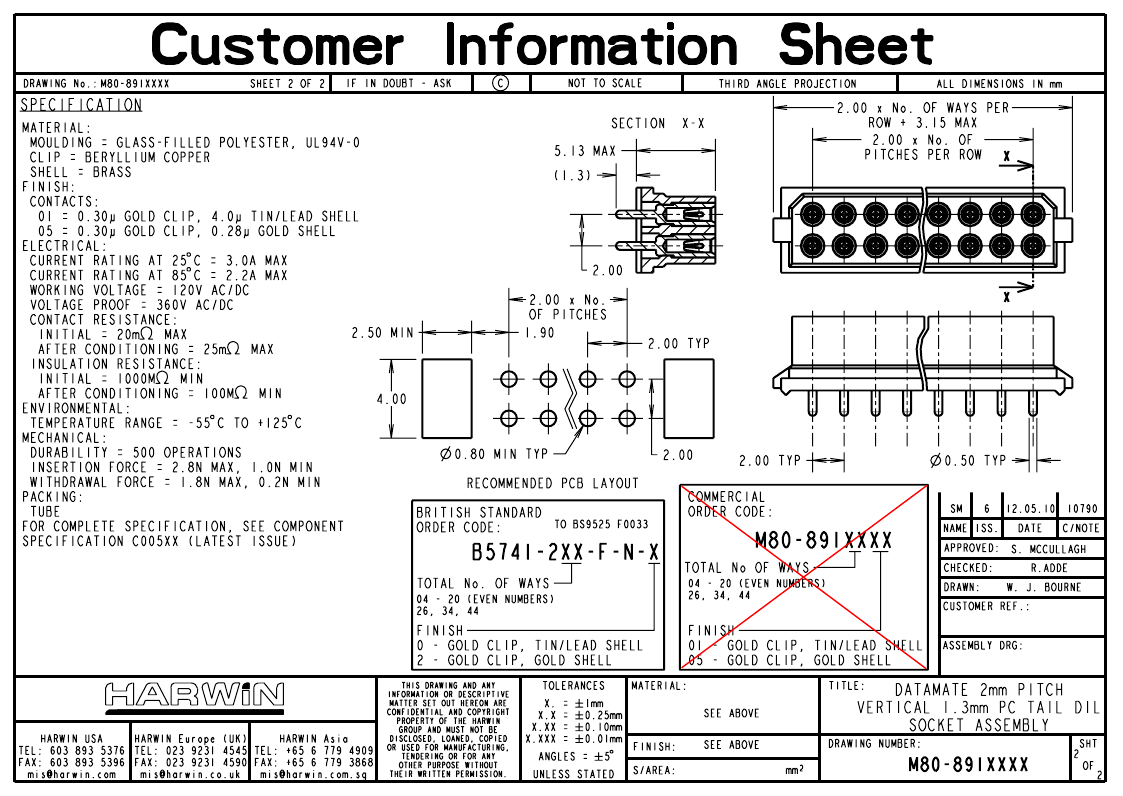

M80-8912601: DescriptionHeaders & Wire Housings 13+13 POS DIL FEMALE VERT 1.3mm TL TIN/LD; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-8912601 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-8912601	-	-	View	Buy Now

Headers & Wire Housings 13+13 POS DIL FEMALE VERT 1.3mm TL TIN/LD

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	POLARIZED, SHROUDED
subject depth	0.202 inch
body length	1.149 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	12u inch
polarization key	POLARIZED KEY
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.051 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

OBSOLETE

All M80 versions

LTB date 09-03-2018

C/N 20971
