Line Filters
Line Filters
ICE Components, Inc.
Voice: 800.729.2099
Fax: 678.560.9304
cust.serv@icecomp.com
www.icecomponents.com
LF Series
Features
• Broad frequency attenuation
• Closed magnetic core minimizes EMI
• Wide selection available
• Available in vertical and horizontal
Applications
• Off-Line Switch Mode Power Supplies
• Conducted EMI Filters
• Office Equipment
• Medical Equipment
•
Electrical Specifications
Part N um ber
LF-20002-1040-_
LF-20003-0430-_
LF-20004-0260
-_
LF-20005-0190
-_
LF-20006-0120
-_
LF-20007-0100
-_
LF-20008-0068
-_
LF-20010-0053
-_
LF-20011-0040
-_
LF-20013-0027
-_
LF-20015-0021
-_
LF-20017-0017
-_
LF-20022-0010
-_
LF-20030-0006
-_
LF-24004-0800
-_
LF-24005-0500
-_
LF-24006-0350
-_
LF-24008-0200
-_
LF-24010-0150
-_
LF-24012-0095
-_
LF-24016-0060
-_
LF-24020-0042
-_
LF-24025-0024
-_
LF-24032-0014
-_
LF-28006-0690
-_
LF-28008-0430
-_
LF-28010-0280
-_
LF-28013-0180
-_
LF-28015-0140
-_
LF-28016-0120
-_
LF-28020-0070
-_
LF-28024-0048
-_
LF-28030-0029
-_
LF-28040-0015
-_
LF-35008-1100
-_
LF-35010-0690
-_
LF-35015-0306
-_
LF-35020-0225
-_
LF-35030-0108
-_
LF-35040-0044
-_
LF-35060-0025
-_
Inductance
( m H m in)
104.0
43.0
26.0
19.0
12.0
10.0
6.8
5.3
4.0
2.7
2.1
1.7
1.0
0.6
80.0
50.0
35.0
20.0
15.0
9.5
6.0
4.2
2.4
1.4
69.0
43.0
28.0
18.0
14.0
12.0
7.0
4.8
2.9
1.5
110.0
69.0
30.6
22.5
10.8
4.4
2.5
L1 &L2 ( m H m ax)
D ifference
3.0
1.0
1.0
0.5
0.5
0.4
0.3
0.3
0.3
0.2
0.2
0.2
0.1
0.1
2.0
1.0
1.0
0.5
0.3
0.3
0.3
0.2
0.2
0.2
2.0
1.0
1.0
0.5
0.3
0.3
0.3
0.2
0.2
0.2
3.0
2.0
1.0
1.0
0.4
0.2
0.2
SRF
( k Hz m in)
125.0
200.0
275.0
330.0
445.0
520.0
640.0
750.0
880.0
1120.0
1310.0
1600.0
1780.0
2680.0
160.0
190.0
230.0
330.0
400.0
540.0
640.0
870.0
1230.0
1600.0
150.0
190.0
250.0
330.0
360.0
420.0
600.0
720.0
1230.0
1400.0
85.0
120.0
190.0
210.0
420.0
670.0
1020.0
I rated
( Am ps )
0.2
0.3
0.4
0.5
0.6
0.7
0.8
1
1.1
1.3
1.5
1.7
2.2
3
0.4
0.5
0.6
0.8
1
1.2
1.6
2
2.5
3.2
0.6
0.8
1
1.3
1.5
1.6
2
2.4
3
4
0.8
1
1.5
2
3
4
6
DCR
( ohm m ax)
(Ω max)
6.09
2.46
1.48
1.04
0.67
0.52
0.39
0.28
0.24
0.16
0.13
0.10
0.07
0.04
2.87
1.68
1.17
0.70
0.48
0.29
0.20
0.14
0.08
0.05
1.50
0.95
0.59
0.34
0.29
0.22
0.16
0.11
0.07
0.04
1.78
1.11
0.48
0.33
0.15
0.07
0.04
*Measured @ 1kHz, 0.1 V rms
Specifications subject to change without notice.
(11/06) LF-1

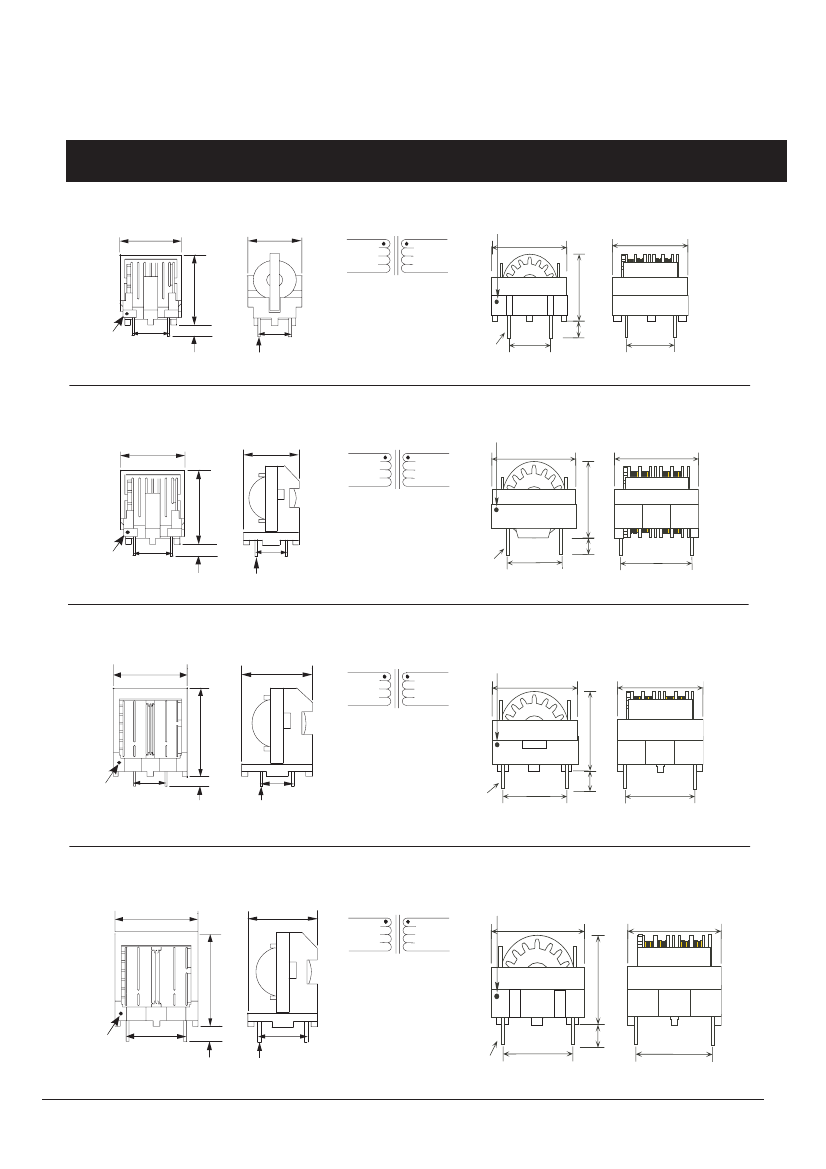

Line Filters
LF-20 Vertical
22.0 max
17.5 max
LF Series
LF-20 Schematic
(V&H)
1
4
2
3
½½½½½½½½½½½½½½½
½½½½½½½½
LF-20 Horizontal
½½½½½½½½½½½½½
½½½½½½½½
½½½½½½½½
½½½½½½½½
25.5
max
½½½½½½½½½½½
pin 1
white
dot
1
13.0
4
4
10.0
3
½½½½½½½
½
½½½½
½
½
½½½½
½
4.0+/-0.3
dia 0.8
•
Packaging:
Tray=48 pieces, Box=12 trays, Box=576 pieces
Packaging:
Tray=48 pieces, Box=12 trays, Box=576 pieces
units: mm
LF-24 Vertical
25.5 max
18.5 max
LF-24 Schematic
(V&H)
1
4
LF-24 Horizontal
½½½½½½½½½½½½½
½½½½½½½½
½½½½½½½½
30.5
max
2
3
½½½½½½½½
½½½½½½½½½½½½½½½
½½½½½½½½
½½½½½½½½½½½
1
4
13.0
4.5+/-0.3
pin 1
white
dot
4
10.0
dia 0.8
3
½½½½½½½
½
½
½
½
½½½½
½½½½
•
Packaging:
Tray=48 pieces, Box=12 trays, Box=576 pieces
Packaging:
Tray=48 pieces, Box=12 trays, Box=576 pieces
units: mm
LF-28 Vertical
30.5 max
25.5 max
LF-28 Schematic
(V&H)
1
4
LF-28 Horizontal
½½½½½½½½½½½½½
½½½½½½½½
½½½½½½½½
2
36.0
max
3
½½½½½½½½
½½½½½½½½½½½½½½½
½½½½½½½½
½½½½½½½½½½½
1
4
13.0
4.0+/-0.5
4
10.0
dia 0.8
3
½½½½½½½
pin 1
white
dot
½
½½½½
½
½
½½½½
½
•
Packaging:
Tray=32 pieces, Box=5 trays, Box=160 pieces
Packaging:
Tray=40 pieces, Box=5 trays, Box=200 pieces
units: mm
LF-35 Vertical
37.5 max
26.5 max
LF-35 Schematic
(V&H)
1
4
LF-35 Horizontal
½½½½½½½½½½½½½
½½½½½½½½
½½½½½½½½
2
44.5
max
3
½½½½½½½½
½½½½½½½½½½½½½½½
½½½½½½½½
1
4
21.0
6.0+/-0.5
4
15.0
dia 1.2
3
½
½½½½½½½
½½½½
½½½½½½½½½½½
pin 1
white
dot
½
½
½½½½
½
Packaging:
Tray=30 pieces, Box=4 trays, Box=120 pieces
Packaging:
Tray=32 pieces, Box=6 trays, Box=192 pieces
units: mm
Specifications subject to change without notice.
(11/06) LF-2
