D38999/20GE35BB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> D38999/20GE35BB

Preview

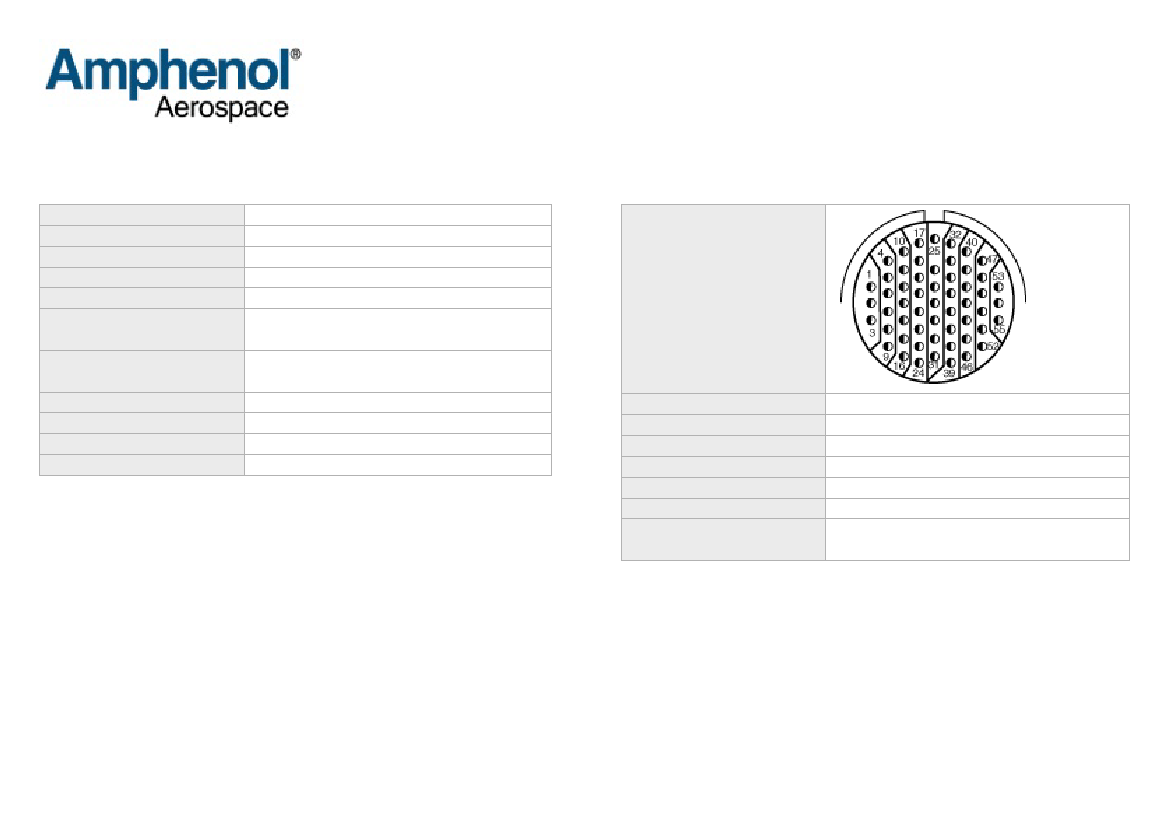

D38999/20GE35BB: DescriptionCircular MIL Spec Connector; CategoryThe connector; File Size169KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D38999/20GE35BB Overview

Circular MIL Spec Connector

D38999/20GE35BB Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Circular MIL Spec Connector
Shipping Restrictions	This product may require additional documentation to export from the United States.
Number of Positions	55 Position
Insert Arrangement	17 - 35
Contact Gender	Without Socket Contacts
MIL Type	MIL-DTL-38999 III
Product	Receptacles
Shell Size	17
Shell Style	Wall Mount
Mounting Style	Panel
Termination Style	Crimp
Current Rating	5 A
Shell Plating	Nickel
Shell Material	Aluminum
Factory Pack Quantity	1

Preview

Download Datasheet

View All

1.323

[33.60]

1.062

[26.97]

.905

[22.99]

.469

[11.91]

.820

[20.83]

.969

[24.61]

1.1875

.234

[5.94]

M25X1-6g

1.219

[30.96]

.128

[3.25]

.194

[4.93]

.153

[3.89]

1.016

[25.81]

D38999/20GE35BB
