33476-1607 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 33476-1607

33476-1607: DescriptionAutomotive Connectors MX150 ASSY HYB RCPT 2X8 CPA LTGY B/16; CategoryThe connector The connector; File Size55KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

33476-1607 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33476-1607	-	-	View	Buy Now

33476-1607 Overview

Automotive Connectors MX150 ASSY HYB RCPT 2X8 CPA LTGY B/16

33476-1607 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	4 weeks 5 days
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE/SYNDIOTACTIC POLYSTYRENE
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

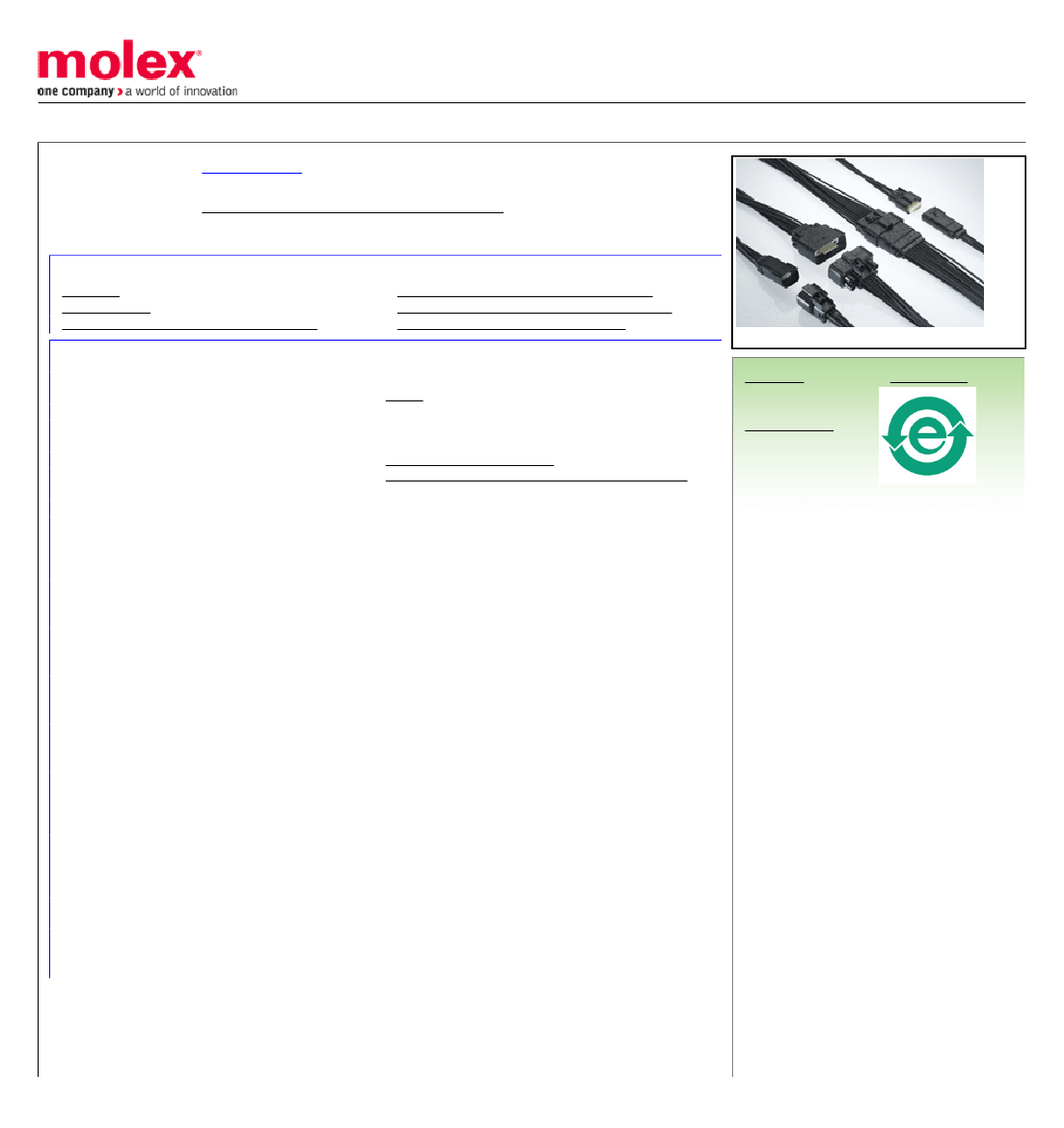

This document was generated on 12/19/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

33476-1607

Active

MX150™ Sealed and Unsealed Connector System

MX150™ Hybrid Sealed Female Connector, Dual Row, 16 Circuits, Polarization B, with

Connector Position Assurance, Light Gray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-33476-000 (PDF)

Product Specification PS-34646-001 (PDF)

Application Specification AS-33472-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Comments

More Detailed Tech Information

Overview

Product Name

UPC

Crimp Housings

33476

Power, Wire-to-Wire

with Connector Position Assurance (CPA), See Sales

Drawing (PDF) Above For Cavity Type & Status

http://ewcap.uscarteams.org

MX150™ Sealed and Unsealed Connector System

MX150™

756054656884

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: Yes

Hydrazine

Dibutyl phthalate

Diarsenic pentaoxide

Diarsenic trioxide

Bis (2-

ethyl(hexyl)phthalate)

(DEHP)

Triethyl arsenate

Benzyl butyl phthalate

2-Pyrrolidinone, 1-

methyl

2,4-Dinitrotoluene

Boric acid

Disodium tetraborate,

anhydrous

Tetraboron disodium

heptaoxide, hydrate

1,2-bis(2-

methoxyethoxy)ethane

(TEGDME; triglyme

4,4'-

bis(dimethylamino)-4''-

(methylamino)trityl

Diboron trioxide

#,#-Bis[4-

(dimethylamino)phenyl]-4

(phenylamino)

4,4'-

bis(dimethylamino)benzophenone

(Michlers ke

N,N,N',N'-

tetramethyl-4,4'-

methylenedianiline (M

Formamide

Silicic acid, barium

salt, lead-doped

4-(1,1,3,3-

tetramethylbutyl)phenol,

ethoxylated

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Gray (Light), Natural

Female

Yes

Modified Polystyrene Alloy, Polyester

23.700/g

Bag

3.50mm

Yes

-40°C to +125°C

Electrical

Current - Maximum per Contact

22A

Material Info

Old Part Number

CVP33476-1607

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

AS-33472-100

PS-33476-000, PS-34646-001

999-S-016-2-Z02, SD-33476-161
