52901-1074 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52901-1074

52901-1074: DescriptionBoard to Board & Mezzanine Connectors 0.635 BtB ST Rec Hsg Assy100CktEmbsTpPkg; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52901-1074 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52901-1074	-	-	View	Buy Now

52901-1074 Overview

Board to Board & Mezzanine Connectors 0.635 BtB ST Rec Hsg Assy100CktEmbsTpPkg

52901-1074 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.252 inch
subject depth	0.402 inch
body length	1.56 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.6672 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.2098 mm
Plating thickness	9.8u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

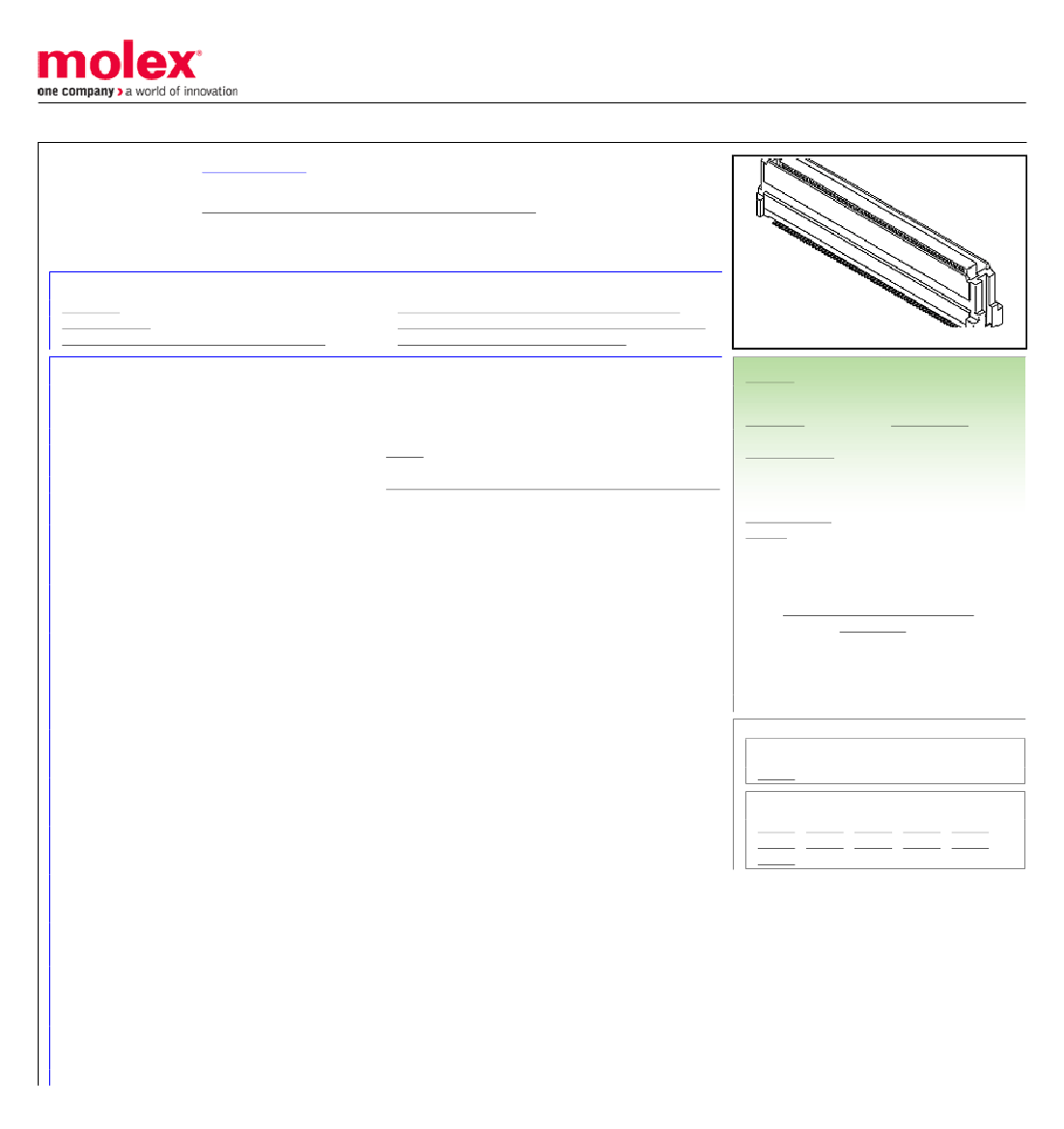

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0529011074

Active

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

0.635mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical Stacking,

12.00 to 16.00mm Stacking Heights, Embossed Tape with Cover Packaging, 100

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification 527600000-000 (PDF)

Agency Certification

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Capable

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Robotic Placement

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Product Specification PS-52760-015-001 (PDF)

Packaging Specification SPK-52901-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

PCB Receptacles

52901

Board-to-Board, Signal

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

SlimStack

822348176595

100

White

94V-0

None

11.00mm, 12.00mm, 13.00mm, 14.00mm, 15.00mm,

16.00mm

Phosphor Bronze

Gold

Tin

2240.000/mg

Vertical

Yes

1.60mm

Embossed Tape on Reel

0.64mm

Yes

Pick and Place Cap

-55°C to +105°C

Surface Mount

0.5A

100V

Search Parts in this Series

52901 Series

Mates With

55091 , 53649 , 53643 , 53475 , 53627 ,

53553 , 53552 , 53647 , 53551 , 53481 ,

53625

SPK-52901-001-001

527600000-000, PS-52760-015-001
