EMI/RFI Shield Termination Backshell
with Self-Locking Rotatable Coupling and Strain Relief
CONNECTOR DESIGNATOR:
Angle and Profile
S
- Straight
W
- 90° Elbow
Product Series
387
- EMI/RFI Backshells with
Strain Relief
387-083
Composite Multi-Shield Cone and Ring Style
Composite
Backshells
A
H
Finish Symbol
(See
Table III)
MIL-DTL-38999 Series III and IV
Length in 1/4 Inch
Increments
(e.g. 5 = 1.25 Inches)
SELF-LOCKING
ROTATABLE COUPLING
STANDARD PROFILE
Basic Part
Number
Cable Entry
(See
Table IV)
387
H
S
083
XM
17
05 - 5
B
Note: See Table I in Intro for
Front-End Dimensional Details
Connector Designator
H
- MIL-DTL-38999 Series III and IV
Connector Shell Size
(See
Table II)

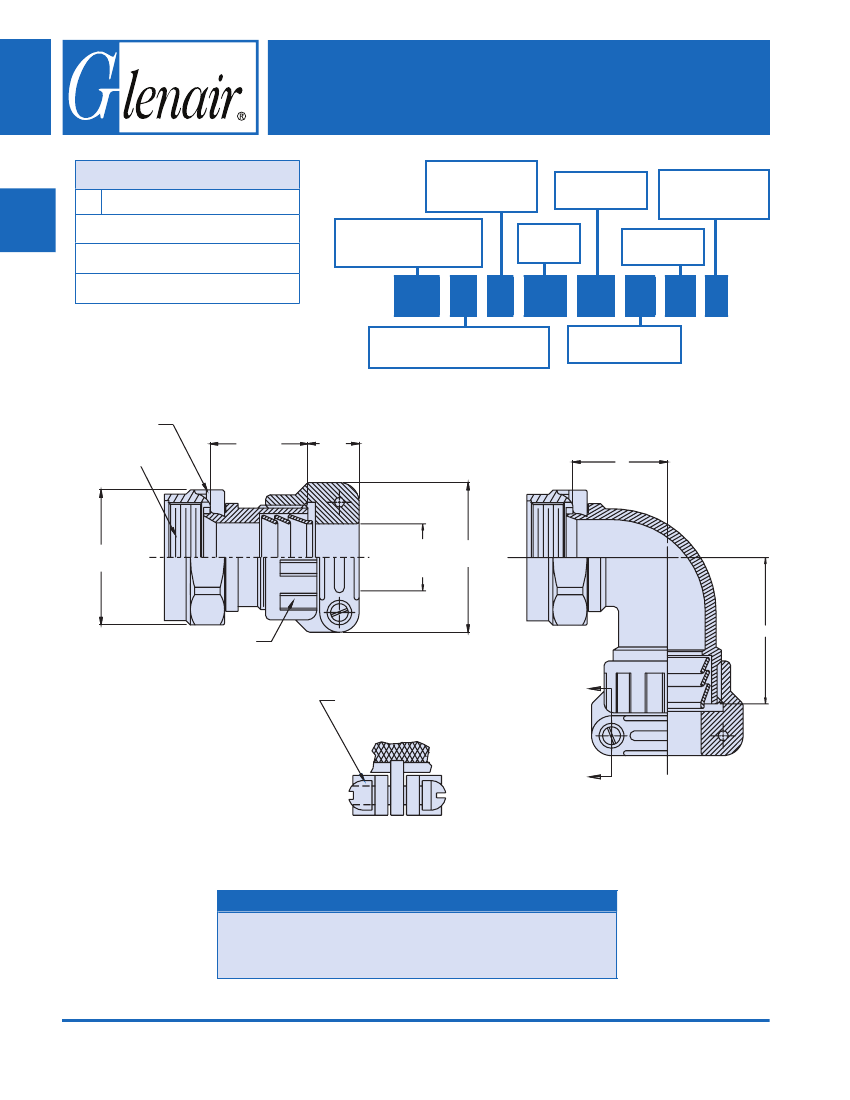

Anti-Decoupling
Device TYP
C
A Thread TYP
Length
±.06
.62
(15.7)
Max
C
B
Cable
Entry
E
D
Flutes Evenly Spaced
D
Telescoping Screw
A
E
A
Section A-A
F
NOTES
1.
2.
3.
See Table I in Intro for front-end dimensional details.
Coupling nut supplied plated.
Metric dimensions (mm) are in parenthesis and are for reference only.
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-64
Rev. 12.14.15
EMI/RFI Shield Termination Backshell
with Self-Locking Rotatable Coupling and Strain Relief
TABLE II: SHELL SIZE
Shell
Size
09
11
13
15
17
19
21
23
25
Shell Size
Code
A
B
C
D
E
F
G
H
J
A Thread
ISO Metric
M12x 1-6H
M15x 1-6H
M18x 1-6H
M22x 1-6H
M25x 1-6H
M28x 1-6H
M31x 1-6H
M34x 1-6H
M37x 1-6H
B Max
.94 (23.9)
1.06 (26.9)
1.17 (29.7)
1.29 (32.8)
1.42 (36.1)
1.54 (39.1)
1.67 (42.4)
2.01 (51.1)
2.12 (53.8)
C
±.078
(2.0)
.722 (18.3)
.784 (19.9)
.816 (20.7)
.878 (22.3)
.942 (23.9)
1.003 (25.5)
1.037 (26.3)
1.116 (28.3)
1.194 (30.3)
D
±.078
(2.0)
1.750 (44.4)
1.820 (46.2)
1.860 (47.2)
1.880 (47.8)
1.942 (49.3)
2.000 (50.8)
2.062 (52.4)
2.194 (55.7)
2.257 (57.3)
Max Available
Entry
04
06
08
10
12
14
16
17
20
TABLE IV: CABLE ENTRY
Dash
Number
04
06
08
10
12
14
16
17
20
E Max
1.125 (28.6)
1.250 (31.8)
1.312 (33.3)
1.438 (36.5)
1.625 (41.3)
1.688 (42.9)
1.750 (44.5)
1.906 (48.5)
2.062 (52.4)
Cable Entry
±.039
(1.0)
.312 (7.9)
.437 (11.1)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.874 (22.2)
.937 (23.8)
1.094 (27.8)
1.250 (31.8)
TABLE III: FINISH
Symbol
XM
Finish Description
2000 Hour Corrosion
Resistant Electroless
Nickel
2000 Hour Corrosion
Resistant Ni-PTFE,
Nickel-Fluorocarbon
Polymer.
1000 Hour
Grey
TM
2000 Hour Corrosion
Resistant Cadmium/
Olive Drab over
Electroless Nickel
XMT
XW
BACKSHELL WEIGHT
Symbol "S" Straight Weight Table
Shell
Size
09
11
13
15
17
19
21
23
25
© 2009 Glenair, Inc.
Dash
Number
04
06
08
10
12
12
16
16
20
Max Weight
(KG)
.0296
.0327
.0370
.0430
.0500
.0560
.0640
.0700
.0750
Symbol "W" 90° Weight Table
Shell
Size
09
11
13
15
17
19
21
23
25
Dash
Number
04
06
08
10
12
12
16
16
20
Max Weight
(KG)
.0326
.0360
.0420
.0480
.0550
.0610
.0690
.0750
.0800
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-65
REV 22 NOVEMBER 2013
Composite
Backshells
387-083
