46557-4545 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 46557-4545

46557-4545: DescriptionBoard to Board & Mezzanine Connectors 1.27MM SEARAY RECPT 4ROW 160P 6.5MM SH; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

46557-4545 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	46557-4545	-	-	View	Buy Now

46557-4545 Overview

Board to Board & Mezzanine Connectors 1.27MM SEARAY RECPT 4ROW 160P 6.5MM SH

46557-4545 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Board to Board & Mezzanine Connectors 1.27MM SEARAY RECPT 4ROW 160P 6.5MM SH
body width	0.278 inch
subject depth	0.317 inch
body length	2.282 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	900VAC V
Durability	100 Cycles
maximum insertion force	.5004 N
Insulation resistance	25000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	160
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

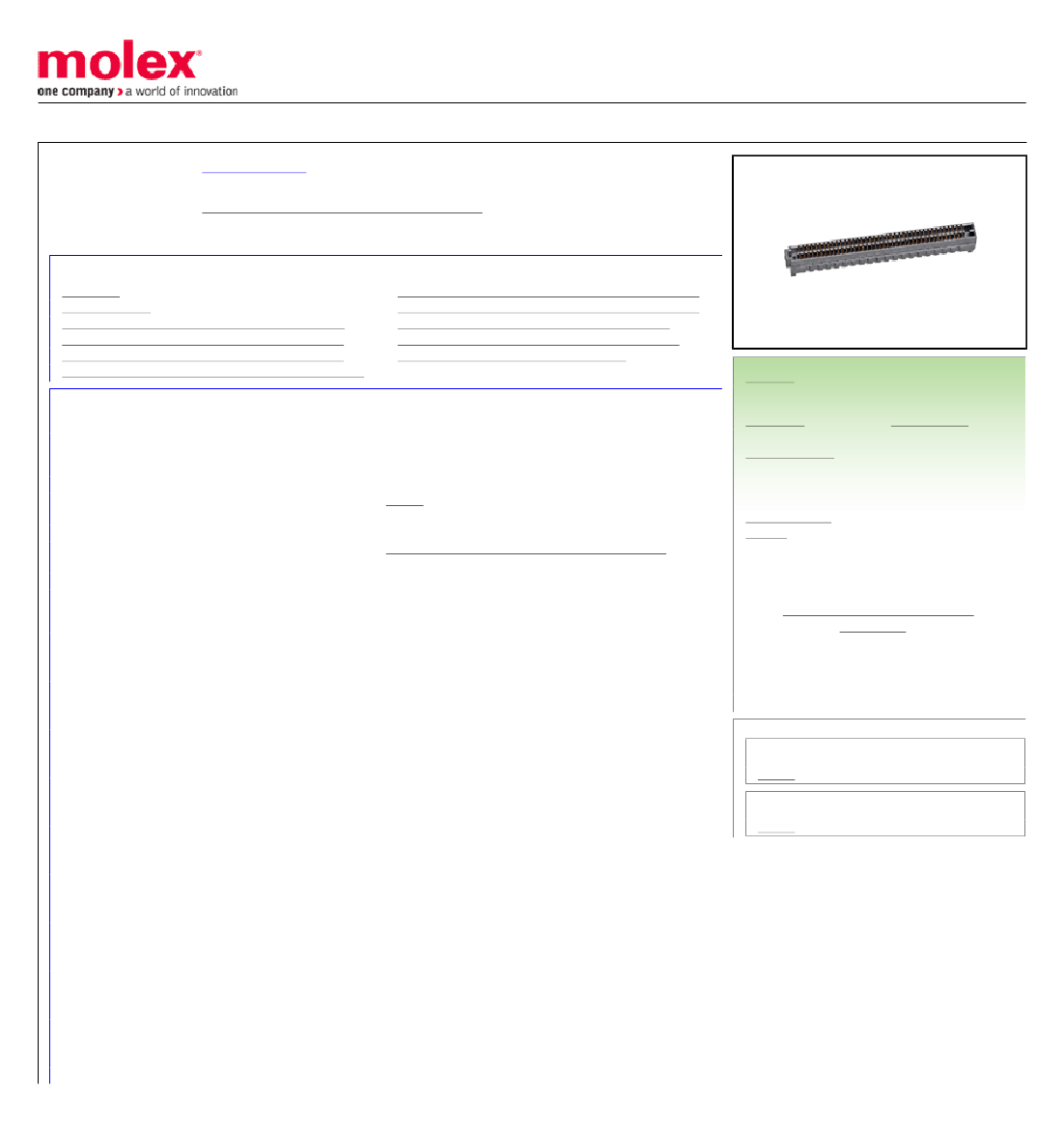

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0465574545

Active

SEARAY and SEARAY Slim Mezzanine Family

SEARAY Slim Receptacle, 160 Circuits, 8.00mm Unmated Height, 4 Rows, with Pegs,

Solder Charge Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45970-001-001 (PDF)

Product Specification TS-45970-001-001 (PDF)

Product Specification TS-45970-002-001 (PDF)

Application Specification AS-45970-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Electrical Model

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Stackable

Surface Mount Compatible (SMC)

Application Specification AS-45970-002-001 (PDF)

Application Specification AS-45970-990-001 (PDF)

Packaging Specification PK-45971-002 (PDF)

Packaging Specification RPK-45971-009 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

LR19980

E29179

PCB Receptacles

46557

Board-to-Board, Signal

Yes

SEARAY and SEARAY Slim Mezzanine Family

SEARAY

800756842851

160

Black

100

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

3.237/g

Vertical

Yes

2.18mm

Embossed Tape on Reel

1.27mm

0.762µm

2.540µm

Yes

Pick and Place Cap

Yes

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

46557 Series

Mates With

46556 SEARAY Slim Plug
