370GS007B1316M6 datasheet, PDF

Datasheet> All Categories > The connector> 370GS007B1316M6

370GS007B1316M6: DescriptionCircular MIL Spec Backshells SUB CBL SEAL RFL RC RLF STNDRD STRT MED; CategoryThe connector; File Size262KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

370GS007B1316M6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	370GS007B1316M6	-	-	View	Buy Now

370GS007B1316M6 Overview

Circular MIL Spec Backshells SUB CBL SEAL RFL RC RLF STNDRD STRT MED

370GS007B1316M6 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
RoHS	N
MIL Type	MIL-DTL-28840
Factory Pack Quantity	1

Preview

Download Datasheet

View All

RJ45 AND USB 2.0

Contacts, Tools, and Accessories

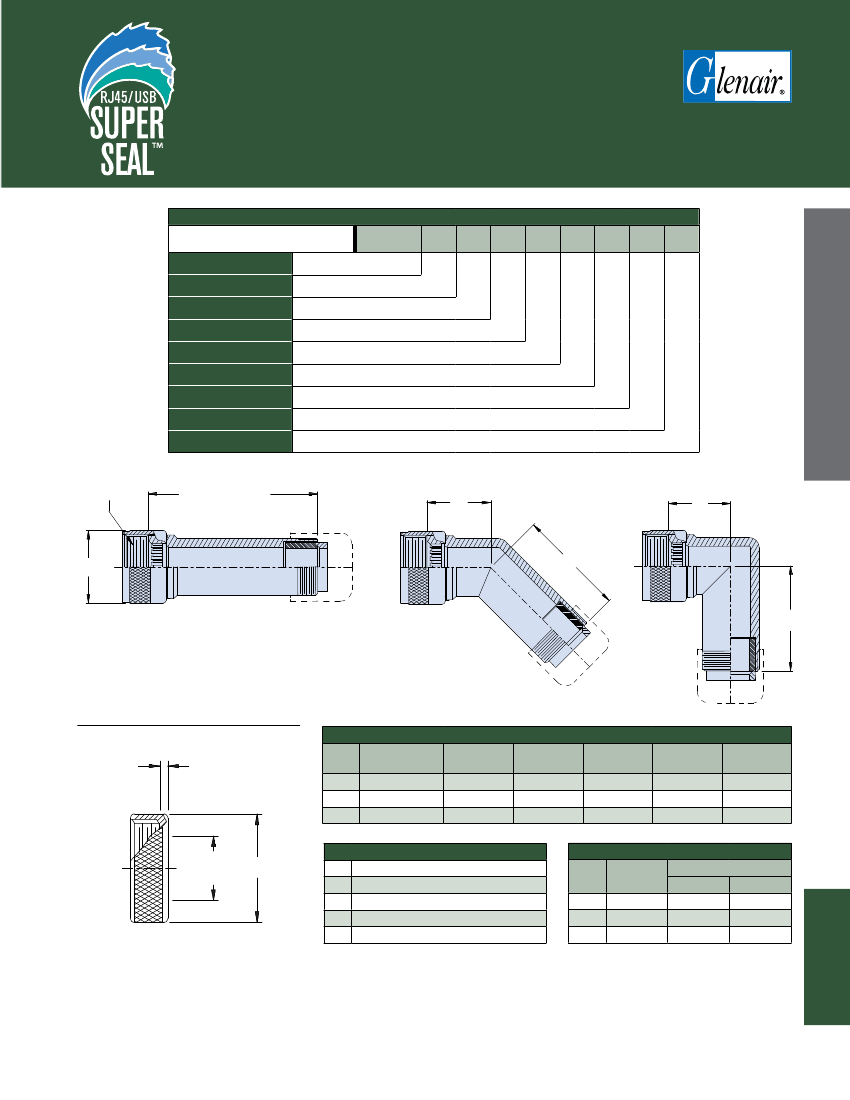

370-007 Cable Sealing Backshell with Rotatable

Coupling for 28840 Type Connectors

How To Order

Sample Part Number

Series/Basic Part No.

Connector Designator

Angular Function

Basic Part No.

Finish

Shell Size

Dash No.

Strain Relief Style

Length

370

- low Profile

= 28840

= 90°

007

370

007

1.5

= 45°

= Straight

See Material and Finish Table

15, 17, 19

See Dash Number Table

= Nut

1/2 inch increments (e.g. 6 = 3 inches); Straight only

Straight (S)

A Thread

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 1)

45° (H)

90° (J)

C Typ.

STRAIN RELIEF STYLE D

.135 (3.4)

Max

Dimensions

Shell

Size

A Thread

M22 X 1 -- 6H

M25 X 1 -- 6H

M28 X 1 -- 6H

C Typ.

1.07 (27.2)

1.21 (30.7)

1.36 (34.5)

E Max

.645 (16.4)

.738 (18.7)

.926 (23.5)

F Max

2.359 (59.9)

2.469 (62.7)

2.659 (67.5)

G Max

.700 (17.8)

.885 (22.5)

.975 (24.8)

H Max

2.369 (60.2)

2.459 (62.5)

2.629 (66.8)

Cable

Range

Materials and Finishes

Aluminum/ Cadmium, olive drab

Aluminum/ Electroless nickel

Dash

No.

Dash Number

Cable Range

Z Max

Min.

Max.

.630 (16.0)

.755 (19.2)

.942 (23.9)

.250 (6.4)

.312 (7.9)

.438 (11.1)

.250 (6.4)

.312 (7.9)

.438 (11.1)

Aluminum/ Nickel PTFE

Aluminum/ Zinc-nickel black

Stainless Steel/ Passivate

Dimensions in Inches (millimeters) are subject to change without notice.

M-17

MIL-DTL-28840 Type
