M83513/04-C09C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M83513/04-C09C

M83513/04-C09C: DescriptionD-Sub MIL Spec Connectors MICRO DCON SKT 21CNT 18"TEFZEL WIRE; CategoryThe connector The connector; File Size220KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/04-C09C Overview

D-Sub MIL Spec Connectors MICRO DCON SKT 21CNT 18"TEFZEL WIRE

M83513/04-C09C Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	STANDARD: MIL-DTL-83513
body width	0.298 inch
subject depth	0.224 inch
body length	1.075 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S21P0
Contact completed and terminated	GOLD
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .094
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
Shell surface	CADMIUM
Shell material	METAL
Housing size	C
Termination type	CRIMP
Total number of contacts	21
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	0.139 N

Preview

Download Datasheet

View All

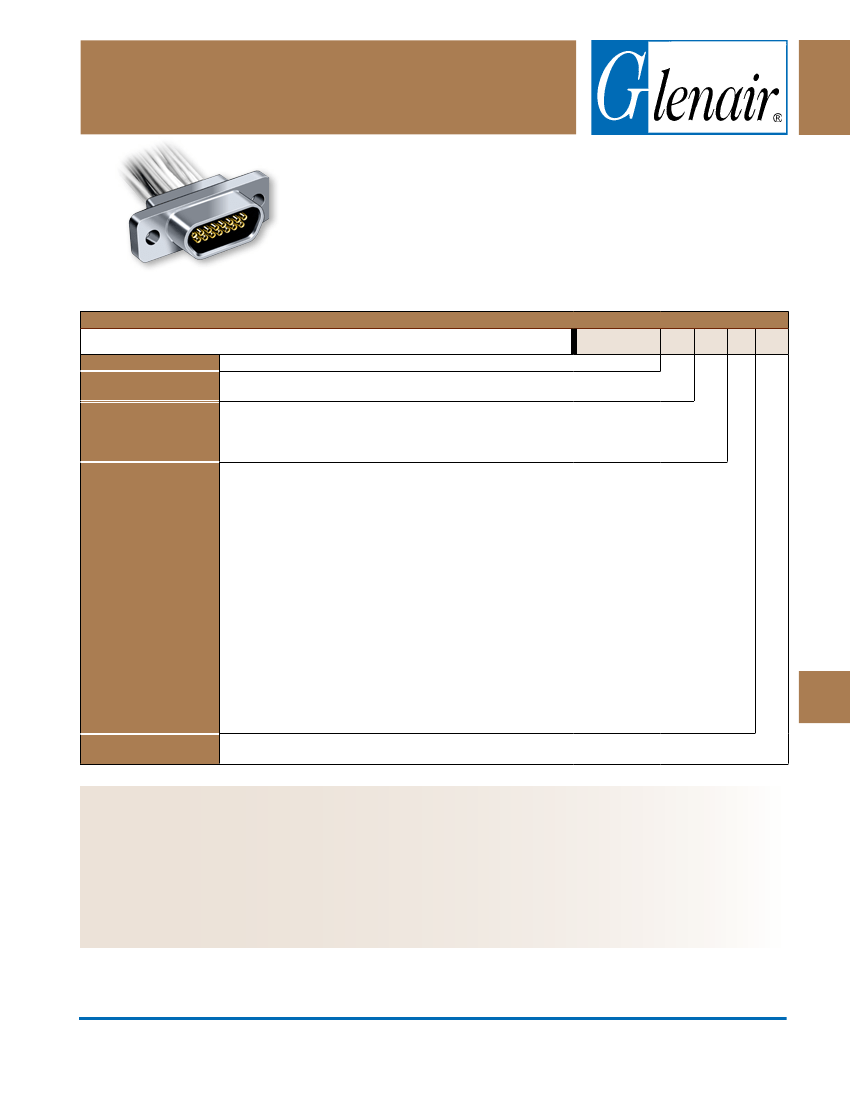

MIL-DTL-83513/03 & /04 Micro-D

Pre-Wired Crimp Terminated, Metal Shell Connector

Micro-D Pre-Wired Pigtails

These connectors feature gold-plated TwistPin contacts and

mil spec crimp termination. Specify aluminum shells for best

availability. 100% tested and backpotted, ready for use.

Choose the Wire Type To Fit Your Application

For lightest weight and smallest diameter, select M22759/33

space grade insulated wire.

How To Order MIL-DTL- 83513 Pre-Wired Metal Shell Micro-D Connectors

Sample Part Number

Base Part Number

Slash Number

m83513

M83513

/03

Pin Connector (Plug)

/04

Socket Connector (Receptacle)

A, B, C, D, E, F, G, H

(See Table I)

Codes A - H specify the shell size.

The number of contacts is shown below for reference.

-9

- 15

- 21

- 25

- 31

- 37

M22759/11-26 Teflon®-Insulated Hookup Wire

- 18 Inches (457mm), White

- 36 Inches (914mm), White

- 18 Inches (457mm), 10 Color Repeating

- 36 Inches (914mm), 10 Color Repeating

- 72 Inches (1829mm), White

- 72 Inches (1829mm), 10 Color Repeating

25 AWG Single Strand Uninsulated Wire

- .500 Inch (12.7mm), Gold Plated

- 1.000 Inch (25.4mm), Gold Plated

- .500 Inch (12.7mm), Tin-Lead Plated(2)

- 1.000 Inch (25.4mm), Tin-Lead Plated(2)

M22759/33-26 Irradiated Tefzel® Insulated Hookup Wire

- 18 Inches (457mm), White

- 36 Inches (914mm), White

- 18 Inches (457mm), 10 Color Repeating

- 36 Inches (914mm), 10 Color Repeating

- 72 Inches (1829mm), White

- 72 Inches (1829mm), 10 Color Repeating

- Cadmium

- Electroless Nickel

- Electrodeposited Aluminum

- Zinc Nickel

/04

-b

Shell Size

- 51

- 100

Wire Type

Shell Finish

- Passivated SST

- Nickel Fluorocarbon Polymer

INDEX

Notes

1. Shell Material & Finish: Cadmium plating offers better corrosion resistance compared to nickel, but cad is not acceptable for space or RoHS

applications. Electroless nickel plated aluminum is recommended for new design activity. Or, choose stainless steel shells for corrosive

environments.

2. Tin-Plated Wire: Glenair M83513 connectors do not contain any components exceeding 97% tin.

3. M22759/33 Corrosion: The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known to cause corrosion to

metal parts when stored in a sealed environment. This corrosion has been observed on M83513 connectors. Glenair has implemented a packaging

procedure to minimize or eliminate this problem. Connectors are individually wrapped with teflon tape, and the unit pack is a perforated paper

envelope. M22759/33 continues to be the preferred wire for space applications.

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-5

E-Mail: sales@glenair.com

Micro-D

MIL-DTL-83513
