36509-0007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36509-0007

36509-0007: DescriptionDIN 41612 Connectors DIN; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

36509-0007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36509-0007	-	-	View	Buy Now

36509-0007 Overview

DIN 41612 Connectors DIN

36509-0007 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.417 inch
subject depth	0.712 inch
body length	3.7 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	500 Cycles
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	36509
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	40u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Base Number Matches	1

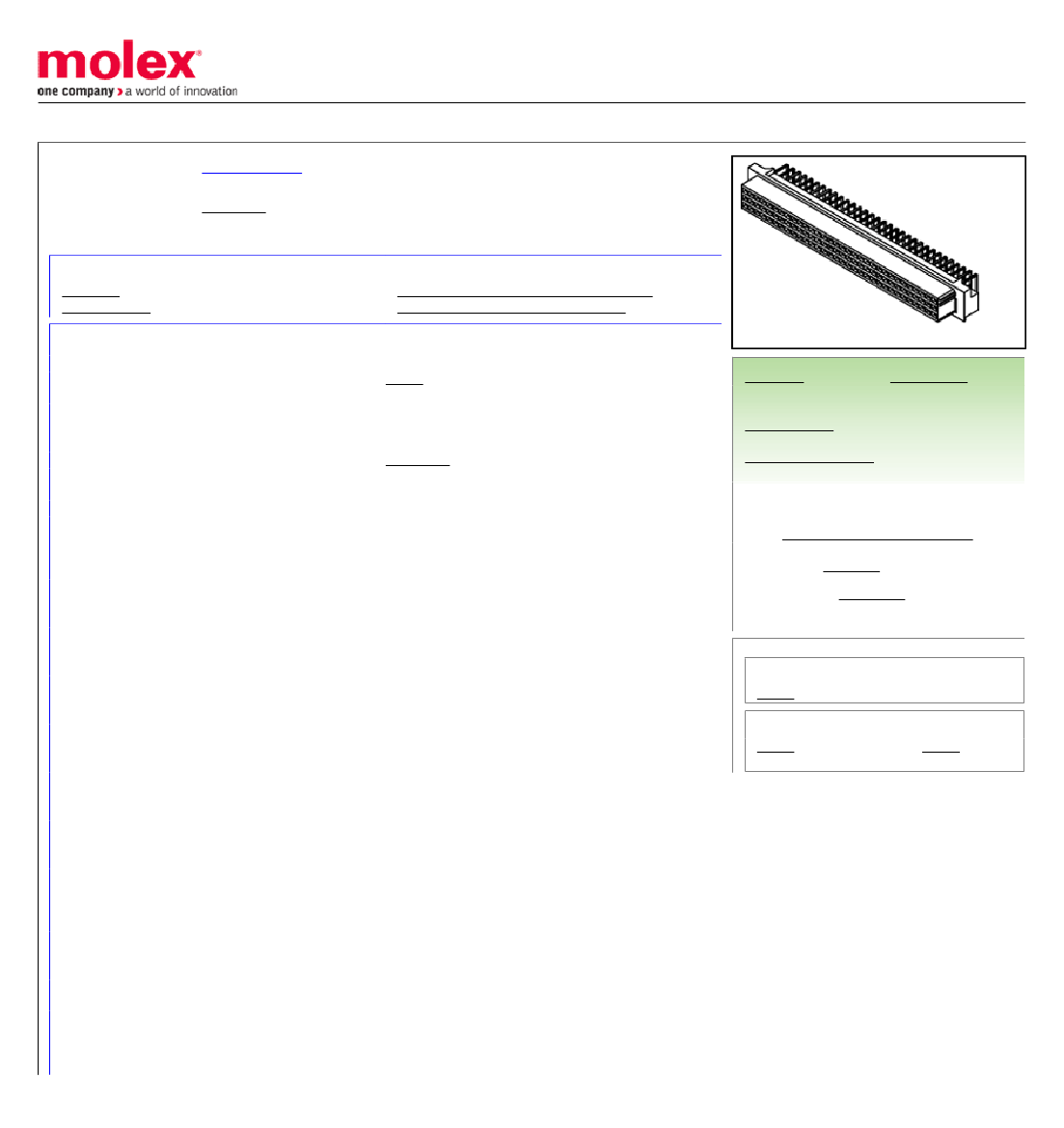

Preview

Download Datasheet

View All

This document was generated on 08/30/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

36509-0007

Active

DIN 41612

2.54mm Pitch DIN 41612 Receptacle, Right Angle, Through Hole, 96 Circuits, 1.27µm

Gold (Au) Selective, with Mounting Clip, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-36509-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Backplane Connectors

36509

Backplane

R at style represents Right Angle Female DIN

Connector

PCB Receptacle

DIN 41612

IEC 603-2/DIN 41612

822350704014

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

Guide to Mating Part

Keying to Mating Part

Material - Plating Mating

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Rows A, B, & C

500

Yes

Gold

Open Pin Field

Right Angle

3.00mm

Yes

1.60mm, 3.20mm

Bag

2.54mm

Yes

-55°C to +125°C

Through Hole

Search Parts in this Series

36509Series

Mates With

36502 Right Angle Header, 36511 Vertical

Header

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

622.0 Mbps

250V AC (RMS)

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-36509-001

SD-36509-001
