Switchcraft

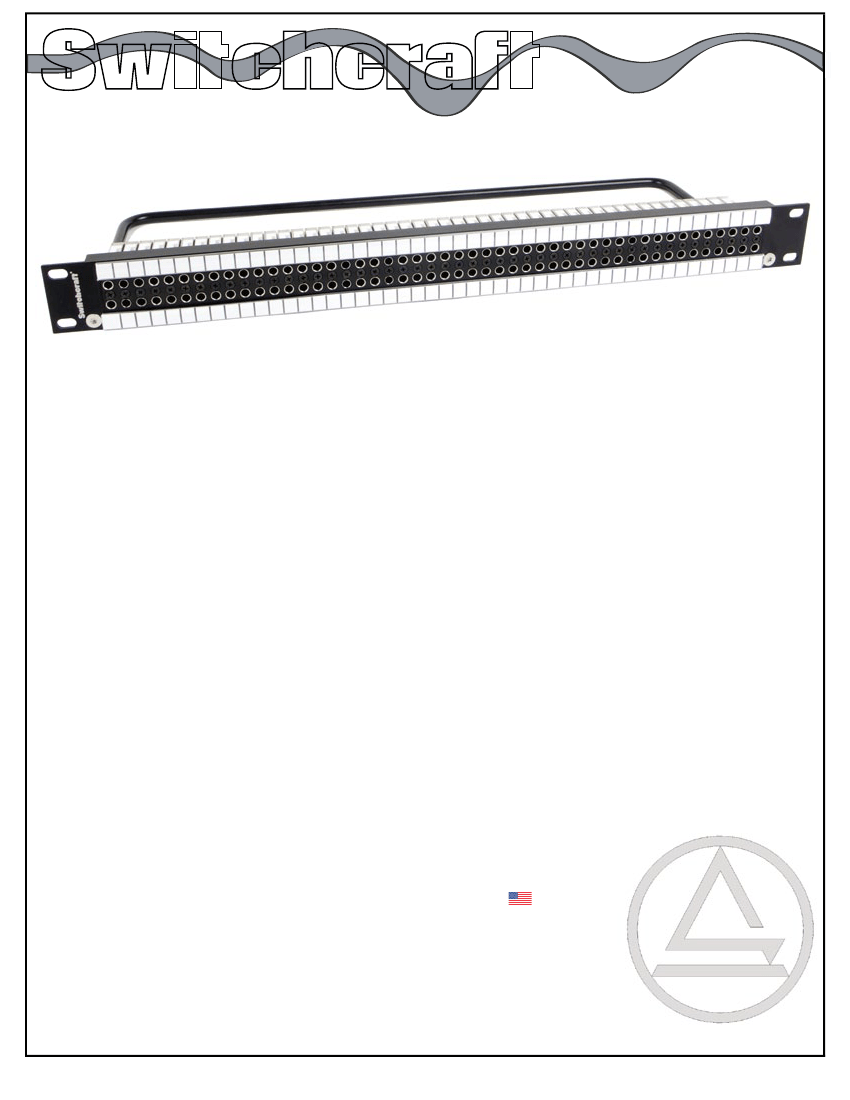

MMVP Micro Video Patchbays
®
MMVP48K175T
-1RU / 96 Patch-points
-Fully Normalled
-75 Ohm Terminated
Features
-Based on the proven, reliable,
patented technology of our MVJ
Series of HD video jacks.
-Screw in, all metal jack design
withstands vibration in mobile
applications.
-Rated at 3GHz - meets
SMPTE 424M specifications
for HD patching.
MMVP Micro Video Patchbays
The MMVP Series provides the highest level of density for
SMPTE 424M video and AES/EBU digital audio patching...
48 channels (96 patch-points) in a 1RU 19” rack space.
Based on the patented, proven design of our MVJ MidSize video
jack, the all metal, screw-in jack provides complete stability and
durability in even the most extreme applications, including mobile
production. The MMVP jack is rated at 3GHz and meets SMPTE
424M specifications. Industry standard DIN 1.0 / 2.3 rear
termination makes installation easy and eliminates the need for
proprietary connectors or special tooling.
The MMVP Series is available in 1RU, 1.5RU, and 2RU heights for
greater flexibility. 1.5RU and 2RU versions are available with two
rows of jacks (4x48 density). All versions are available normalled,
non-normalled, 75 Ohm terminated or non-terminated.
Made in Chicago, USA
®
Switchcraft
®
www.switchcraft.com
New Product Bulletin #580
Switchcraft

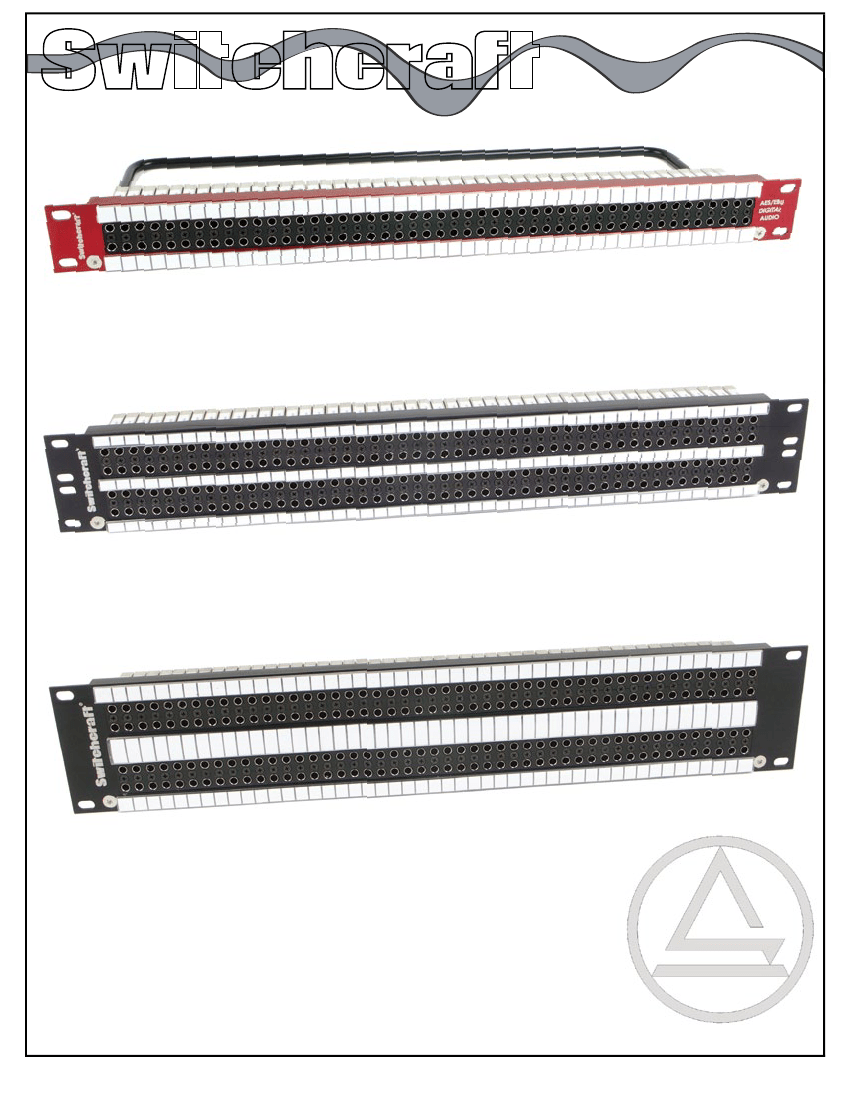

MMVP Micro Video Patchbays
MMVP48K1NTAES
-1RU / 96 Patch-points
-Designed for AES/EBU
Digital Audio
®
MMVP96K275T
-1.5RU / 192 Patch-points
-Fully Normalled
-75 Ohm Terminated
MMVP96K375T
-2RU / 192 Patch-points
-Fully Normalled
-75 Ohm Terminated
®
Switchcraft
®
www.switchcraft.com
New Product Bulletin #580
Switchcraft
MMVP Micro Video Patchbays
Patchbay Part Numbers
MMVP48K175T
MMVP48K1NT
MMVP48K1N75T
MMVP48K1NNT
MMVP48K275T
MMVP48K2NT
MMVP48K2N75T
MMVP48K2NNT
MMVP96K275T
1RU, 2x48, Normalled, Terminated
1RU, 2x48, Normalled, Non-Terminated
1RU, 2x48, Non-Normalled, Terminated
1RU, 2x48, Non-Normalled, Non-Terminated
1.5RU, 2x48, Normalled, Terminated
1.5RU, 2x48, Normalled, Non-Terminated
1.5RU, 2x48, Non-Normalled, Terminated
1.5RU, 2x48, Non-Normalled, Non-Terminated
1.5RU, 4x48, Normalled, Terminated
MMVP96K2NT
MMVP96K2N75T
MMVP96K2NNT
MMVP48K375T
MMVP48K3NT
MMVP48K3N75T
MMVP48K3NNT
MMVP96K375T
MMVP96K3NT
MMVP96K3N75T
MMVP96K3NNT
®
1.5RU, 4x48, Normalled, Non-Terminated
1.5RU, 4x48, Non-Normalled, Terminated
1.5RU, 4x48, Non-Normalled, Non-Terminated
2RU, 2x48, Normalled, Terminated
2RU, 2x48, Normalled, Non-Terminated
2RU, 2x48, Non-Normalled, Terminated
2RU, 2x48, Non-Normalled, Non-Terminated
2RU, 4x48, Normalled, Terminated
2RU, 4x48, Normalled, Non-Terminated
2RU, 4x48, Non-Normalled, Terminated
2RU, 4x48, Non-Normalled, Non-Terminated

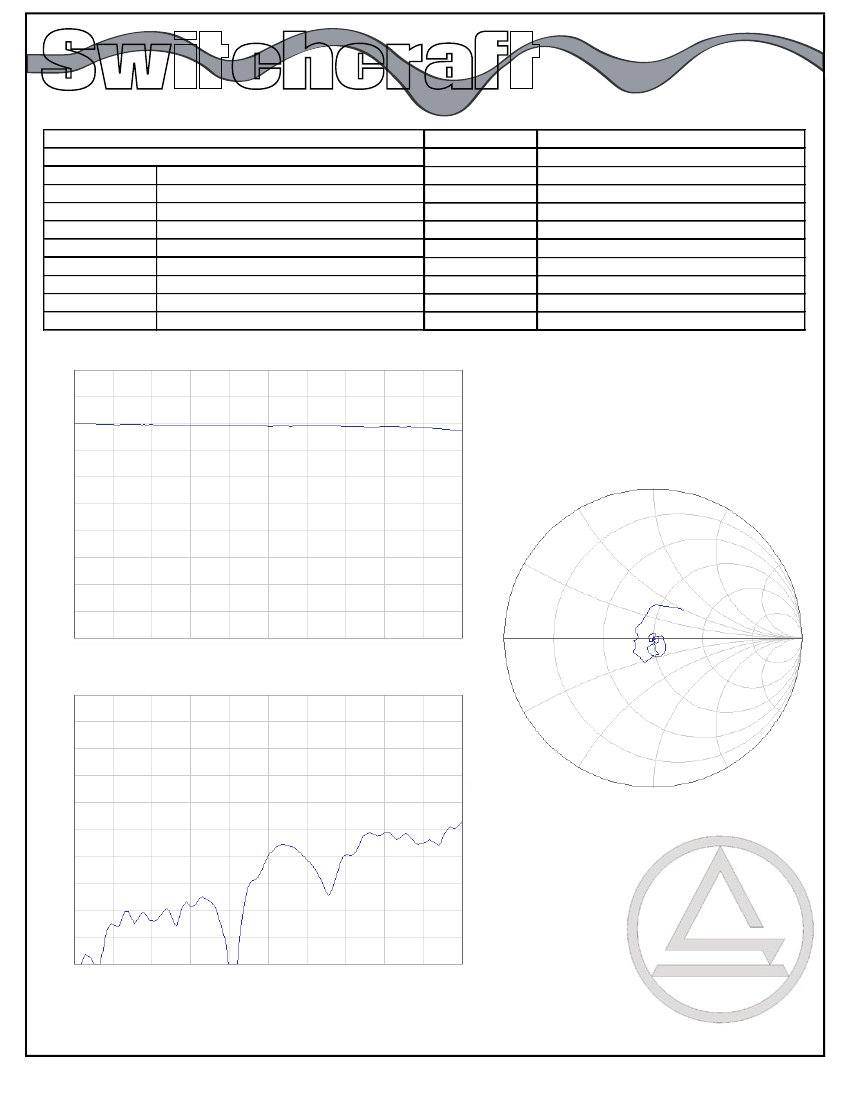

Typical Insertion Loss
10.00 dB
5.00 dB
0 dB
-5.00 dB
-10.00 dB
Smith Chart
-15.00 dB
-20.00 dB
-25.00 dB
-30.00 dB
-35.00 dB
-40.00 dB
0 MHz
300 MHz
600 MHz
900 MHz
1.2 GHz
1.5 GHz
1.8 GHz
2.1 GHz
2.4 GHz
2.7 GHz
3.0 GHz
10.00 dB
5.00 dB
Typical Return Loss
0 dB
-5.00 dB
-10.00 dB
Start: 30KHz / Stop: 3.0 GHz
-15.00 dB
-20.00 dB
-25.00 dB
-30.00 dB
®
0 MHz
300 MHz
600 MHz
900 MHz
1.2 GHz
1.5 GHz
1.8 GHz
2.1 GHz
2.4 GHz
2.7 GHz
3.0 GHz
-35.00 dB
-40.00 dB
Switchcraft
®
www.switchcraft.com
New Product Bulletin #580
Switchcraft
MMVP Micro Video Patchbays

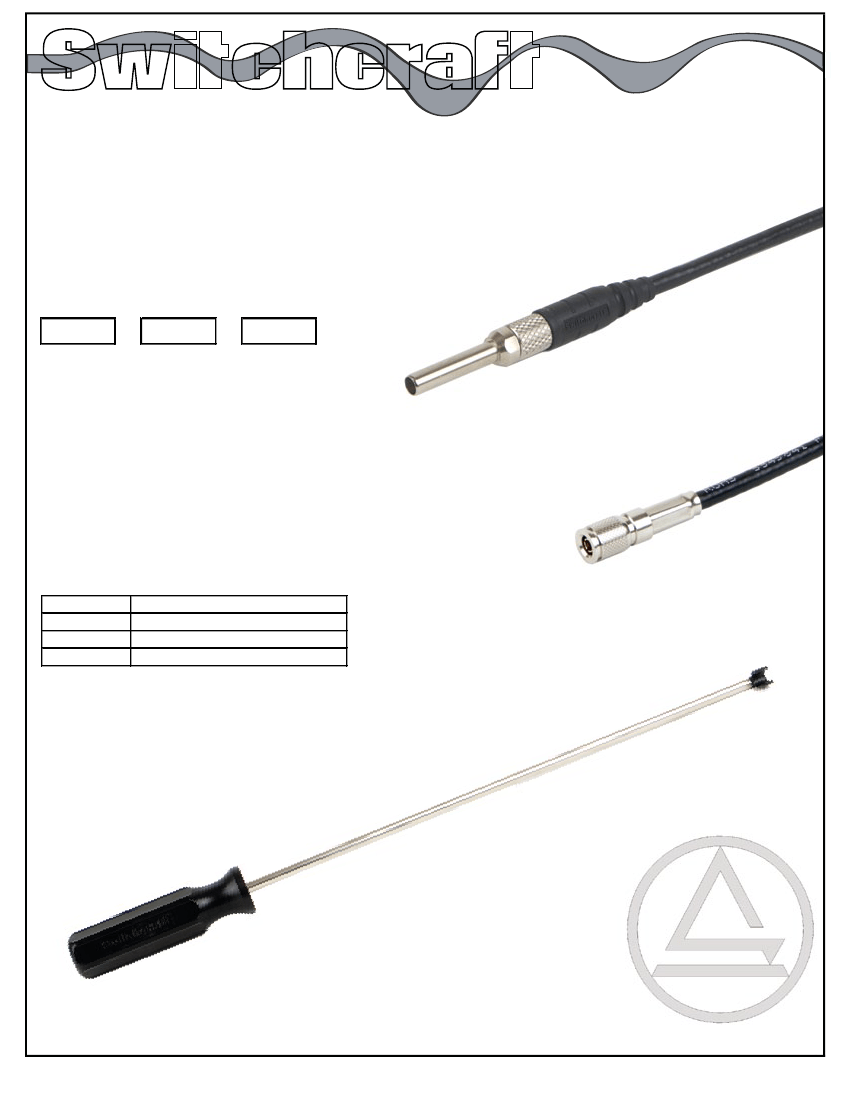

MMVP Series Patchcords
®
MMVP Series patchcords are perfect for the most critical HD video and AES/EBU digital
audio patching applications. They are available in a wide variety of lengths and
colors. Each patchcord is assembled using premium, low loss cabling
and a rugged overmolded strain relief for long lasting dependability.
Part Number Configurator
Plug Type
VMMP
+
1-10 Ft.
+
Color Code
VMMP2BK
Color: BK = Black GN = Green
Y = Yellow
R = Red
BL = Blue
O = Orange GY = Gray
DIN 1.0/2.3 Connectors
Our DIN 1.0/2.3 connectors utilize a unique push/pull lock and release
feature, simplifying installation and modification. They are 75 Ohm
rated, compatible with the most widely used cable sizes, and
can be terminated using a standard BNC crimp tool.
DIN1855A
Part Numbers
DIN1855A
DIN179DT
DIN1505A
DIN1694A
Compatible with Belden 1855A
Compatible with Belden 179DT
Compatible with Belden 1505A
Compatible with Belden 1694A
DIN 1.0/2.3 Insertion / Withdrawal Tool
The MMVPTL insertion / withdrawal tool is 16” long
and allows easy access to the DIN 1.0/2.3
connectors on the back of the patchbay,
making setup and modification
fast and easy.
MMVPTL
®
Switchcraft
®
www.switchcraft.com
New Product Bulletin #580
