Series 100 thru 111
DIP Jumpers
FEATURES
• Wide Array of DIP Jumper Configurations and Wiring Possibilities
• Reliable, Electronically-tested Solder Connections
• Protective Covers Ultrasonically-welded with Strain Relief
• Easy Identification and Tracing with 10-color Cable
GENERAL SPECIFICATIONS
•
HEADER BODY AND COVER:
black UL 94V-0 4/6 Nylon
ORDERING INFORMATION
• HEADER PINS: Brass 1/2-hard
• STANDARD PIN PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min.
XX-XXXX-XXX XXX
Ni per QQ-N-290
Optional Header Pin Plating
• OPTIONAL PLATING: 200µ [5.08µ] min. matte Sn per ASTM B545-97(2004)e1 over 50µ
T = Sn
TL = Sn/Pb
[1.27mm] min. Ni per QQ-N-290; –OR– 200µ [5.08µ] 90/10 Sn/Pb per MIL-T-10727 Type I
TW = Twisted Pair Cable
over 50µ [1.27µ] min. Ni per QQ-N-290
ST = Stripped, Sn-dipped
• CABLE INSULATION: UL style 2697 Polyvinyl Chloride (PVC)
(106-111 Series)
• CABLE LAMINATE: clear PVC, self-extinguishing*
Jumper Series
• 0.050 [1.27] PITCH CONDUCTORS: 28-AWG, 7/36-strand, tinned Cu per ASTM B 33
Cable Length (inches)
• 0.039 [0.99] PITCH CONDUCTORS: 26-AWG, 7/34-strand)
2" = 002 (min.) [50.88]
• CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
2.5" = 002.5
• CABLE VOLTAGE RATING: 300V
No. of Conductors
• CABLE TEMPERATURE RATING: 176°F [80°C]
(see Table)
• CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz*
• CROSSTALK: 10-ft sample, 5ns rise time with 2 lines driven; near end 4.7%; far end 4.3% nominal*
• PROPAGATION DELAY: 1.5ns/ft. [4.9ns/meter] nominal*
• INSULATION RESISTANCE:
1010Ω (10 ft. [3 meters] min.)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.
* Applies to 0.050 [1.27] Pitch Cable Only
SINGLE-END DIP JUMPER WIRE LIST
Series 106, 108, 110
Wire
Number
1
2
3
Header Pin
Number
1
8
2
7
3
6
4
5
Series 107, 109, 111
Wire
Number
1
2
3
4
5
6
7
8
Header Pin
Number
1
2
3
4
5
6
7
8
NUMBER OF CONDUCTORS
Available Sizes
4 thru 20
22
24, 28, 40
Centers “C”
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Dim. “D”
0.395 [10.03]
0.495 [12.57]
0.695 [17.65]
4
5
6
7
8
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR OTHER CONFIGURATIONS, SEE DATA SHEET 11007
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11006
Rev. 8.1
1 of 2

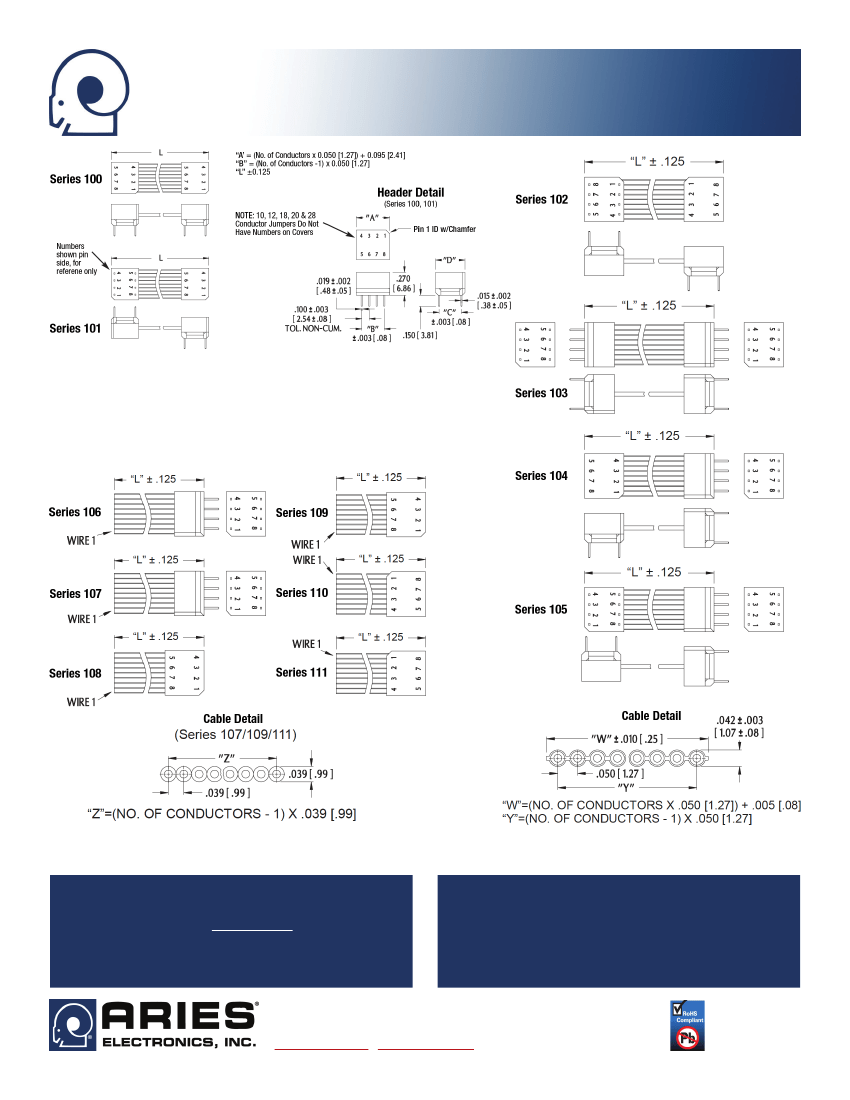

Series 100 thru 111
DIP Jumpers
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR OTHER CONFIGURATIONS, SEE DATA SHEET 11007
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11006
Rev. 8.1
2 of 2
