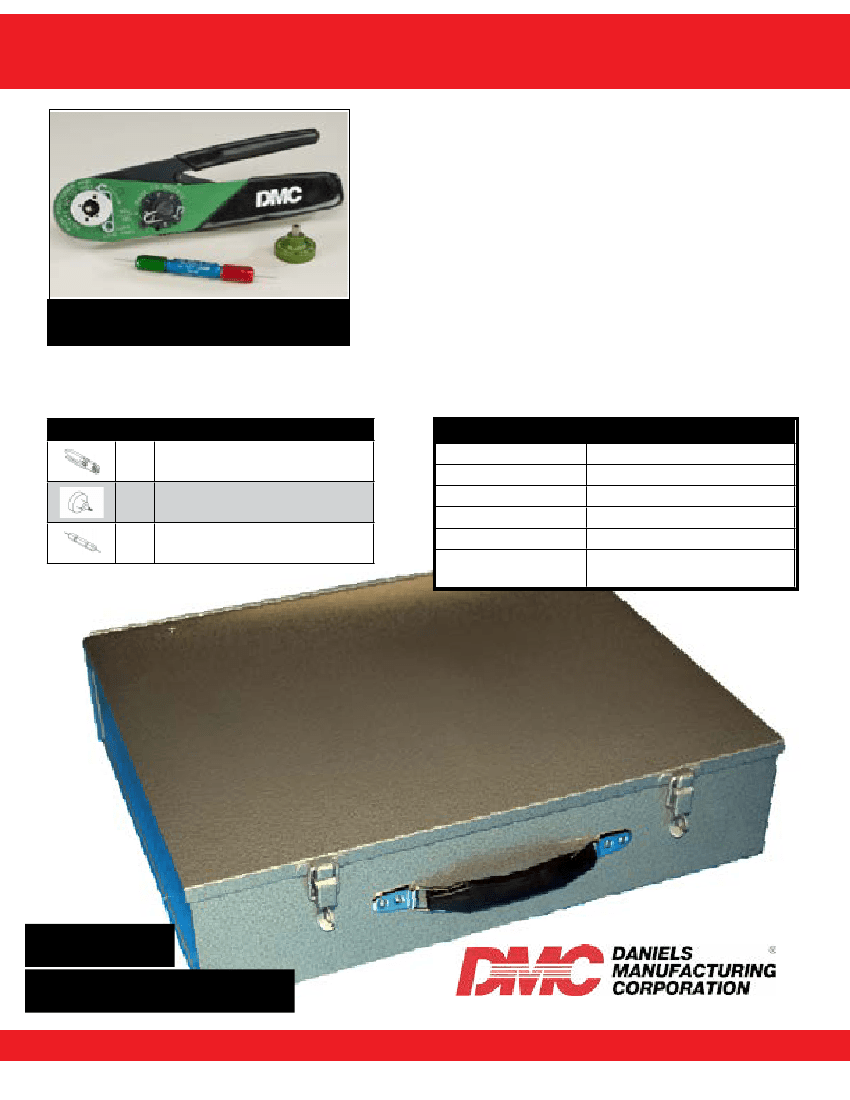

DMC123 (MIL-T-83507/8-01) MAINTENANCE KIT
For Electrical Connectors and Wiring Systems
The DMC123 tool kit contains the MH860 tool frame, tool gage,
and all mil-spec positioners. Also included in the DMC123 are tool
instruction sheets and a tool selection chart.
Qualified to MIL-DTL-22520/7, the DMC MH860 was developed
to meet the demonstrated need for supporting the majority of
electrical systems with one versatile crimp tool frame.
The MH860 accepts the entire middle wire range of 16 through 28
AWG, with positioners which adapt it to virtually all applications
consistent with others in the MIL-DTL-22520 family.
DMC123 (MIL-T-83507/8-01)
TOOL KIT
DMC123 TOOL AND ACCESSORY LIST
1
12
1
Crimp Tool
Positioners
In-Service Inspection Gage
TOOL KIT CONFIGURATION
Type of Case
Number of Cases
Color
Type of Construction
Application
Type of Inserts
Portable
1
Grey
Steel/Aluminum
Crimp Tool Kit
Unicellular Polyethylene
Foam with Die Cut Tool Cavities
DMC123
NSN: 5180-01-355-5616
DANIELS MANUFACTURING CORP., 526 THORPE ROAD, ORLANDO, FL 32824, USA
PHONE (407) 855-6161 • FAX (407) 855-6884 • www.DMCTools.com • E-MAIL: DMC@DMCTools.com
COPYRIGHT © 2009
ALL RIGHTS RESERVED
REV. B
01/15
DMC123-SL
