Static Control Vinyl Floor Tile 8400 Series

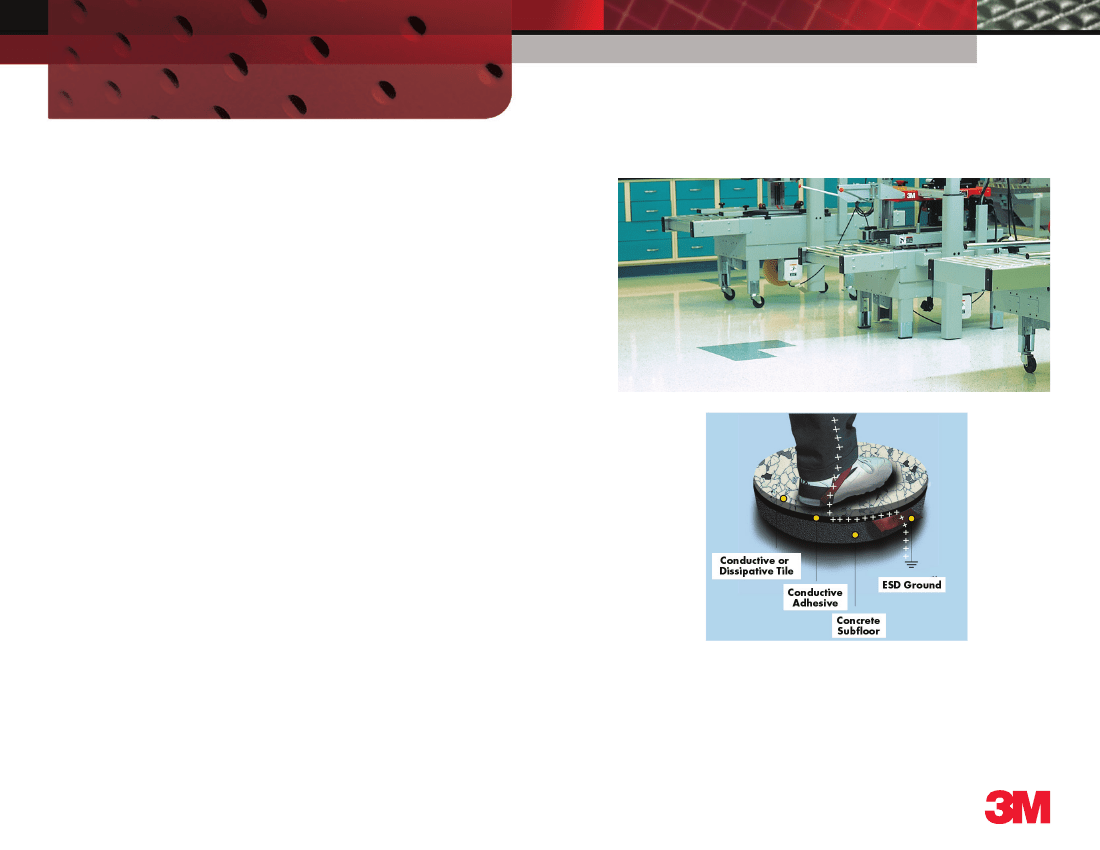

The need for static protection to drain electrostatic charges from personnel and materials is well accepted
in many industries. Whether safeguarding sensitive electronic components during manufacture or service
or helping control charge in a computer room or munitions factory, a key element of an ESD (electrostatic
discharge) prevention program is the use of a properly designed flooring system.
Description
Static Control Vinyl Floor Tile 8400 Series is a long-term solution for helping control ESD. This solid vinyl
tile is durable and attractive and can easily be installed by competent flooring contractors. The flexible,
resilient tiles are made with only 100% pure vinyl and contain a minimum amount of filler and none of the
regrind that can make tile brittle. Both the “conductive” and “static-dissipative” versions are available in
a selection of bright, vivid colors. A proprietary manufacturing process completely seals in the conductive
carbon medium, resulting in a unique tile that can be easily cleaned and shined to a gloss while
maintaining its electrical properties – without the use of an ESD wax or polish.
Key Features
• Lifetime warranty on electrical performance
• 10-year limited warranty on materials
• Long-term ESD protection
• Excellent wear resistance and durability
• Easy, low-cost maintenance
• Made with 100% pure homogeneous vinyl; no regrind
• Micro-edged for squareness for ease of installation
• Available in either “conductive” or “static-dissipative” resistance range
• Available in 24.25” size for raised access floors, plus 12" and 24" sizes.
• Available in a variety of colors
• May be seamwelded or self-coved
Product Data Sheet
Product Data Sheet
3M™ Static Control Vinyl Floor Tile 8400 Series

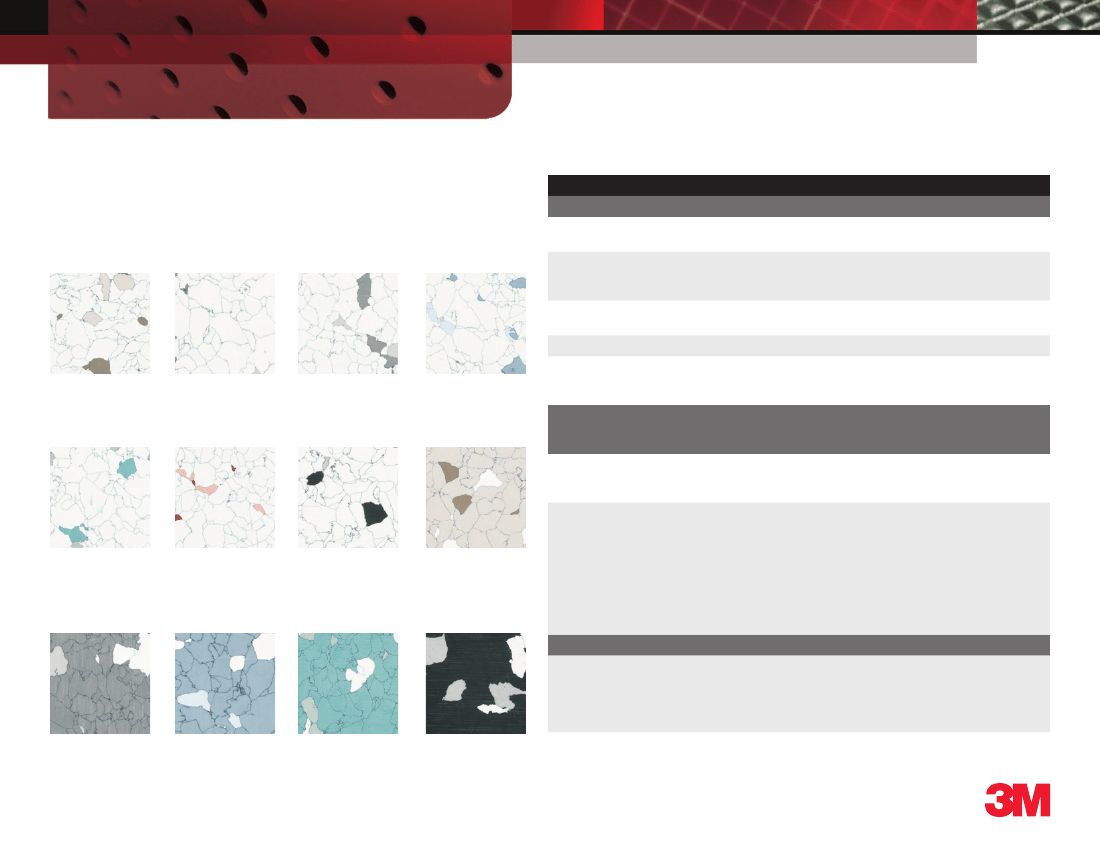

Available Floor Tile Colors
Static-Dissipative (S.D.): Series 8411 through 8427
Conductive (Cond.): Series 8431 through 8447
Brown
8411 (S.D.) or 8431 (Cond.)
Specifications
Mechanical Properties
Blue
8414 (S.D.) or 8434 (Cond.)
Typical
White
8412 (S.D.) or 8432 (Cond.)
Gray
8413 (S.D.) or 8433 (Cond.)
Static-Dissipative Floor Tile (Series 8411-8427)
Conductive Floor Tile (Series 8431-8447)
Flammability
Flame Spread Index
ASTM E84
Critical Radiant Flux
(ASTM E648)
Physical Specifications
Abrasion Resistance
(ASTM D 3389)
Taber H22 wheel
Meets Class 1 requirements
> 1.1w/cm
2
Meets ASTM F1700-13A
Pass
Typical
Static Dissipative Tile (8413-
8427)
1 x 10
6
to 1 x 10
9
ohms
Typical
Conductive Tile (8431-8447)
2.5 x 10
4
to 1 x 10
6
ohms
Green
8415 (S.D.) or 8435 (Cond.)
Maroon
8416 (S.D.) or 8436 (Cond.)
Black
8417 (S.D.) or 8437 (Cond.)
Reverse Brown
8421 (S.D.) or 8441 (Cond.)
Electrical Properties
Electrical Resistance
ANSI/ESD STM7.1 and ANSI/ESD
STM97.1
Static Generation (Walking Voltage)
(with 3M
™
Shoe Grounder Assembly
2051 at 12% RH (+/-3% RH at 73
degrees F +/-2 degrees)
Reverse Gray
8423 (S.D.) or 8443 (Cond.)
< 50 volts
Testing done per ANSI/ESD STM97.2
< 25 volts
Testing done per ANSI/ESD STM97.2
Reverse Blue
8424 (S.D.) or 8444 (Cond.)
Reverse Green
8425 (S.D.) or 8445 (Cond.)
Reverse Black
8427 (S.D.) or 8447 (Cond.)
(With ESD Control Rated Shoes <35
megohms per ANSI/ESD STM9.1 and
ANSI/ESD STM97.1)
Sizes
0.125 x 12 x 12 in. (3.2 x 305 x 305 mm)
0.125 x 24.25 x 24.25 in. (3.2 x 615 x 615 mm)
– for raised access floor panels
0.125 x 24 x 24 in. (3.2 x 610 x 610 mm)
– for seamwelded installations
Product Data Sheet
Product Data Sheet
3M™ Static Control Vinyl Floor Tile 8400 Series
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based
on information believed to be reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use. Any statements related
to the product which are not contained in 3M’s current publications, or any contrary statements
contained on your purchase order shall have no force or effect unless expressly agreed upon, in
writing, by an authorized officer of 3M.
Limited Warranty
All statements, technical information, and recommendations related to 3M’s products are
based Subject to the provisions of this Limited Warranty, 3M expressly warrants that Static
Control Vinyl Floor Tile Series 8400 will be free from defects in material and manufacture
for a period of ten (10) years from the date of purchase. 3M warrants that the 3M Product will
perform in accordance with test method ESD S7.1 for the lifetime of the Product.This applies
to both “Static Dissipative” Tile (surface-to-ground resistance of 1x106 to 1x109 ohms) and
“Conductive” Tile (surfaceto- ground resistance of 2.5x104 to 1x106 ohms) subject to the
Warranty Exclusions listed below. Must be installed using 3M approved conductive adhesive.
Exclusive Remedy; Limited Liability; Claims Procedure
Any Claims for surface defects or variations in color or pattern must be communicated to 3M
in writing prior to the actual installation. If this product is proved defective within the warranty
period stated above, the exclusive remedy will be, at 3M’s option, to repair or replace the
3M Product or to refund the purchase price of the 3M Product.
IN NO EVENT WILL 3M
OR ANY SELLER BE RESPONSIBLE OR LIABLE FOR SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL LOSSES OR DAMAGES UNDER ANY LEGAL THEORY
INCLUDING BUT NOT LIMITED TO CONTRACT, NEGLIGENCE OR STRICT
LIABILITY. 3M MUST BE NOTIFIED IN WRITING OF ANY DEFECT AND SUCH
DEFECTIVE PRODUCT MUST BE RETURNED TO 3M ALONG WITH A PROOF OF
PURCHASE.
3M will not accept the return of any product without the prior approval of 3M. If
the product is already installed, then 3M must examine and verify the defect.
Warranty Exclusions
(1) There is no warranty for (i) workmanship of installation and (ii) dissatisfaction, problems,or
damage due to installation or maintenance, other than as recommended by 3M. (2) Excessive
moisture in or below the concrete slab can result in adhesion problems and/or surface defects
(blistering or cracking) in any flooring material. This warranty does not include delamination
or surface defects due to the presence of alkali or other contaminants in the subfloor or due
to hydrostatic pressure or moisture vapor transmission rates greater than 3 pounds per 1000
square feet per 24 hours (ASTM F-1869). (3) There is no warranty for any reduction in the
gloss of the tile from use. (4) There is no warranty for damage due to accidents, gouges, scuffs,
scratches or indentation. (5) If Buyer’s purchase includes goods from another manufacturer,
only the warranty given by that particular manufacturer will apply to those specific goods. (6)
3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
The express warranty will not apply to defects or damage due to accidents, neglect,
misuse, alterations, operator error, or failure to properly install, maintain, clean or repair the 3M
Product. (7) 3M Flooring Products that are sold as “seconds” are sold strictly on an “as is” basis
without any warranty. NOTE: No person or representative is allowed to give any other or any
additional warranty other than what is stated above unless approved by an officer of 3M.

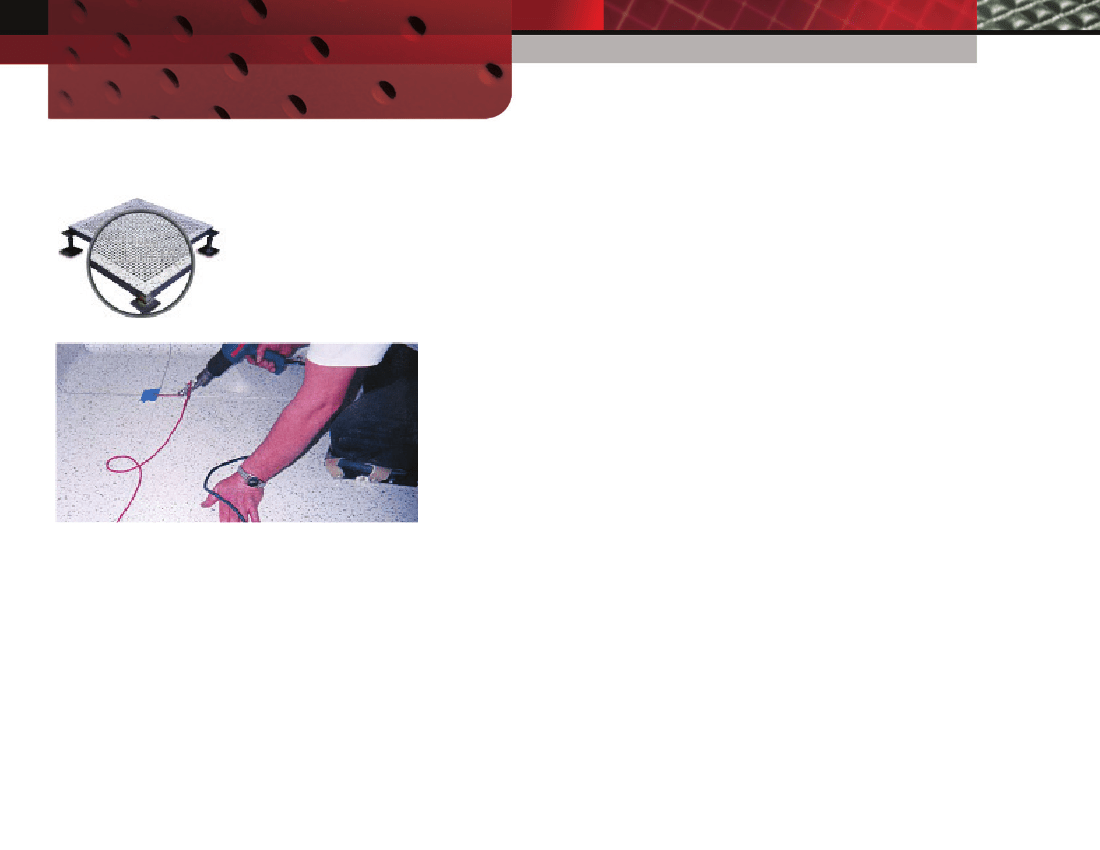

3M
™
Static Control Vinyl Floor Tile 8400
Series is available in the special 24.5” x 24.5”
size used for raised access floor panels.
3M
™
Static Control Vinyl Floor Tile 8400 Series can be self-coved and seamwelded during
installation.
3M is a trademark of 3M Company.
